Direct Lift B72-6 Swivel Joint M6 for 7K/8K/9K 4-Post Parking Lift Safety Latch

Description

Direct Lift B72-6 Swivel Joint M6 for 7K/8K/9K 4-Post Parking Lift Safety Latch

The B72-6 Swivel Joint M6 is listed for use on 7K/8K/9K 4-Post Parking Lift Safety Latch and is intended for service or repair of compatible Direct Lift equipment. Match the reference part number, component description, and listed application to your original lift part before ordering.

Product Information

• Brand / Equipment: Direct Lift
• Manufacturer / Reference Part Number: B72-6
• Store SKU: DITB726
• Component: Swivel Joint M6
• Listed Application: 7K/8K/9K 4-Post Parking Lift Safety Latch

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

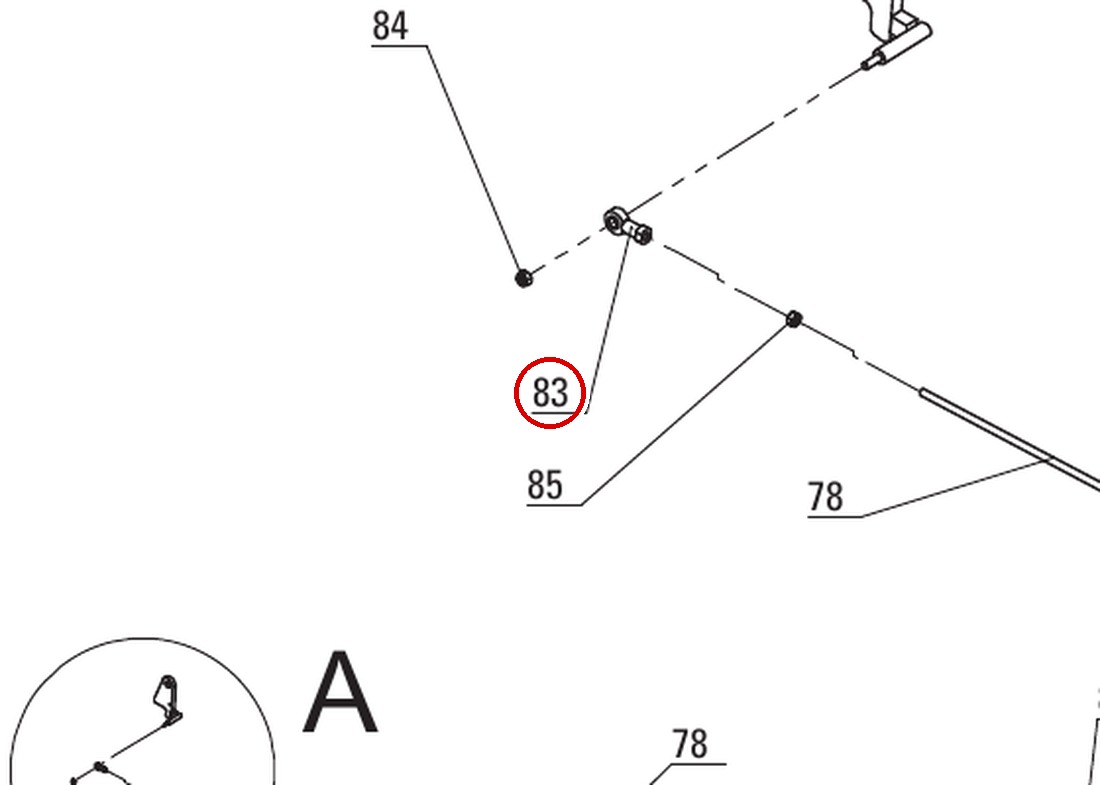

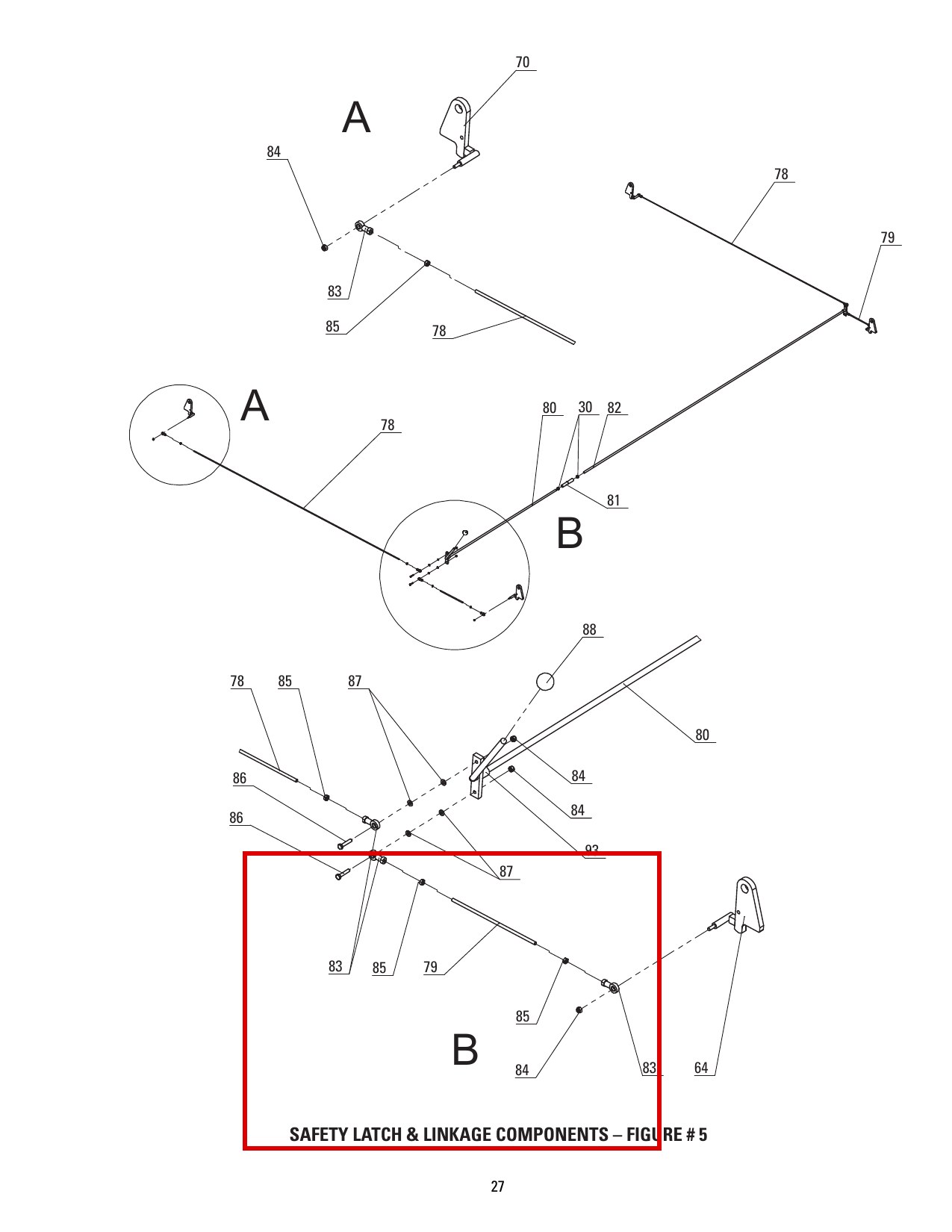

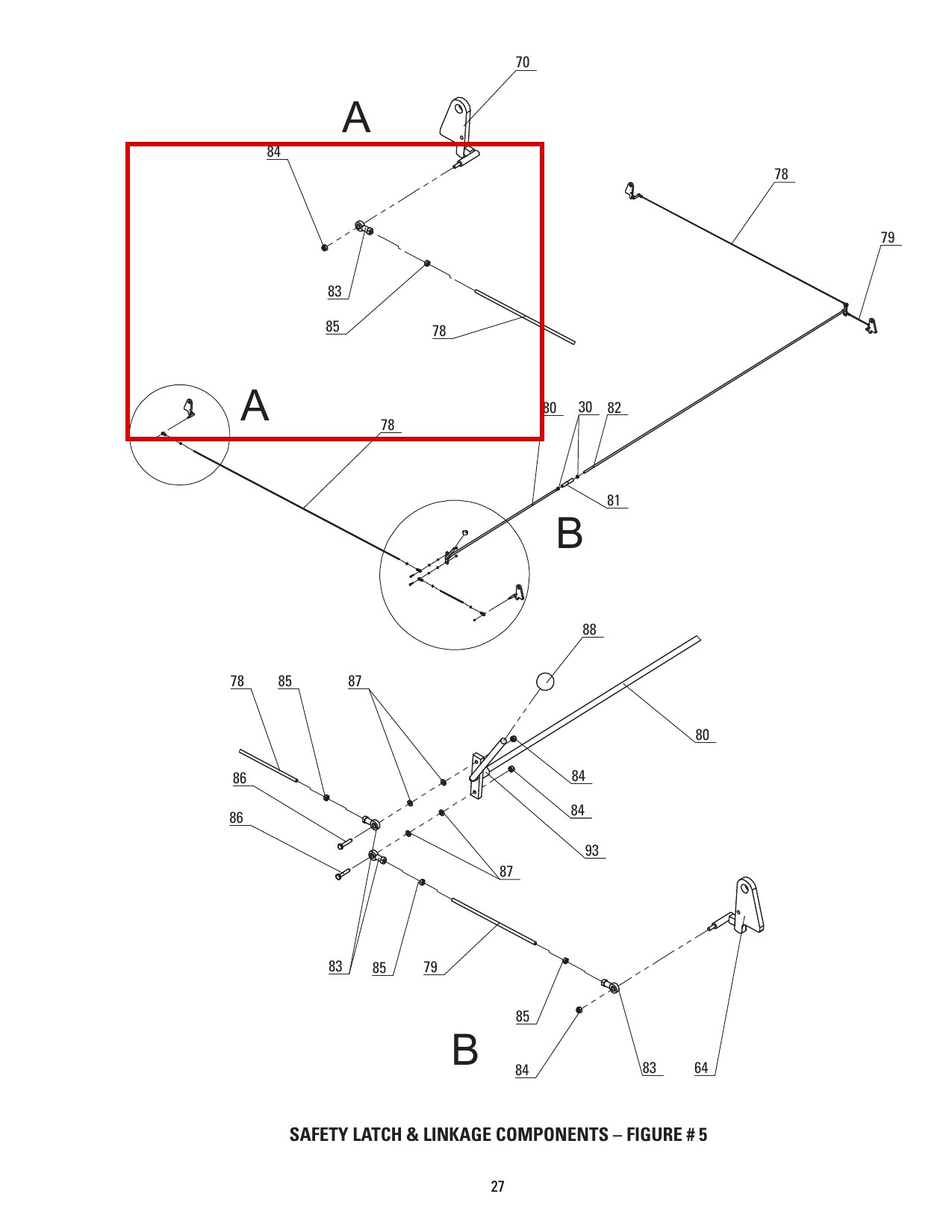

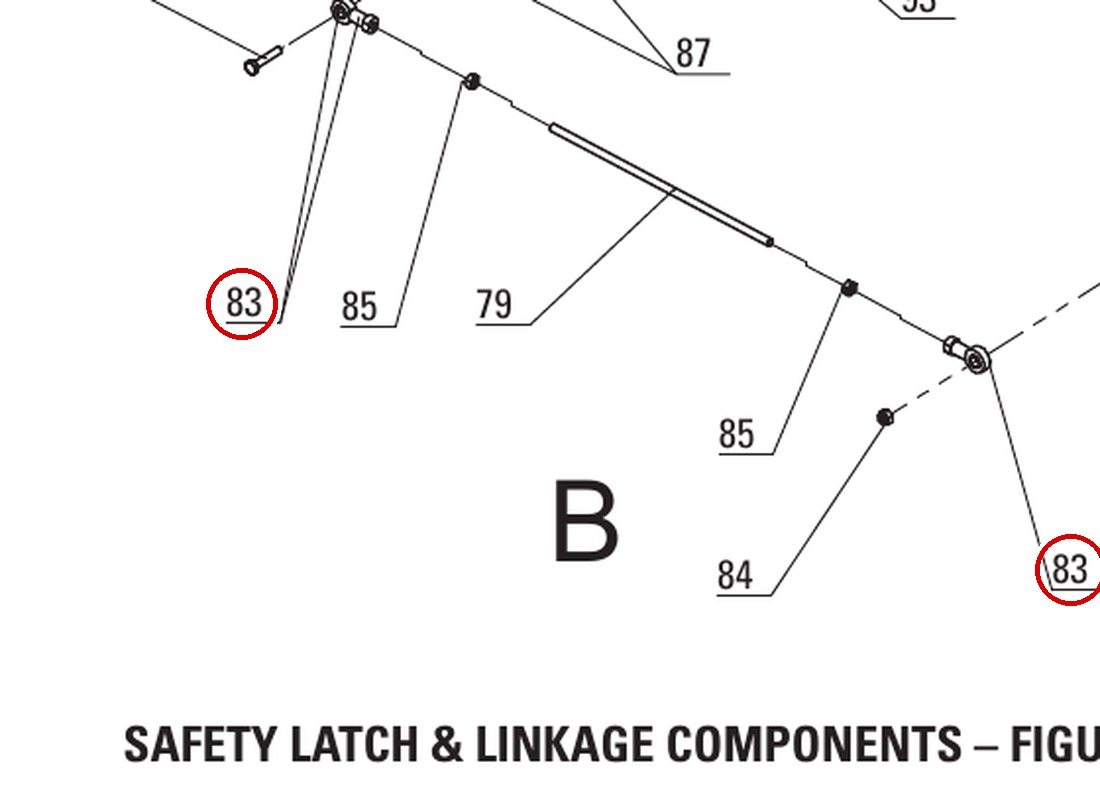

In the drawing images above this is part number 83 in the PARTS BREAKDOWN 7K 4-POST PARKING drawing and part number 83 in the PARTS BREAKDOWN 8K 4-POST PARKING drawing and part number 88 in the PARTS BREAKDOWN 9K PARKING WIDER V drawing.

Item #B72-6: M6 Swivel Joint for Direct Lift four-post parking lifts. This small swivel (rod-end style) joint connects the safety latch linkage, allowing the latch rods to pivot freely so all four column locks engage and release together.

Fits the following lift models — part number B72-6 appears in the parts breakdown of each of these lifts: Direct Lift 7K Four-Post Parking, 8K Four-Post Parking, 9K Parking (wide version), PP8+ 8K Four-Post, PP8+ Long 8K Four-Post, PP8S 8K Four-Post, PP9+ 9K Four-Post.

Direct OEM-style replacement. A seized or worn swivel joint can prevent the safety locks from releasing evenly, so replace it if the latch linkage feels stiff or sloppy.

Fits these lifts:

• Direct Lift — PP8+ Long (8,000 lb four-post); 7K four-post parking lift; DP8 (8,000 lb four-post parking); PP8+ (8,000 lb four-post)
