Direct Lift NH4D-1009 Latch Shaft - 9K Parking Wider V & PP9+ 9K 4-Post

Description

Direct Lift NH4D-1009 Latch Shaft – 9K Parking Wider V & PP9+ 9K 4-Post

The NH4D-1009 Latch Shaft – 9K Parking Wider V & PP9+ 9K 4-Post is listed for use on compatible equipment and is intended for service or repair of compatible Direct Lift equipment. Match the reference part number, component description, and listed application to your original lift part before ordering.

Product Information

• Brand / Equipment: Direct Lift
• Manufacturer / Reference Part Number: NH4D-1009
• Store SKU: DIT1009
• Component: Latch Shaft – 9K Parking Wider V & PP9+ 9K 4-Post

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

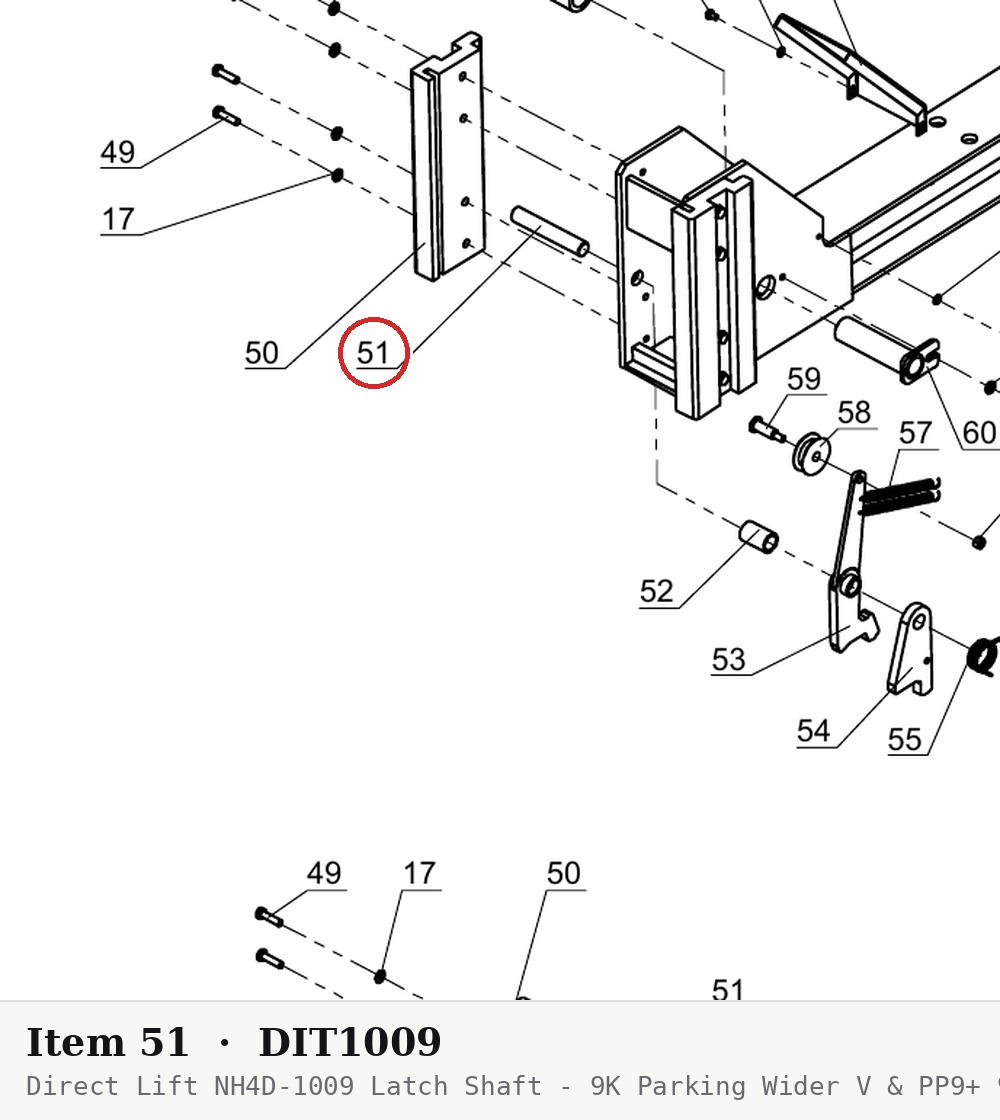

This is part number 51 in the drawing image above.

Fits the following lift models — part number NH4D-1009 appears in the parts breakdown of each of these lifts: Direct Lift 9K Parking (wide version), PP9+ 9K Four-Post.

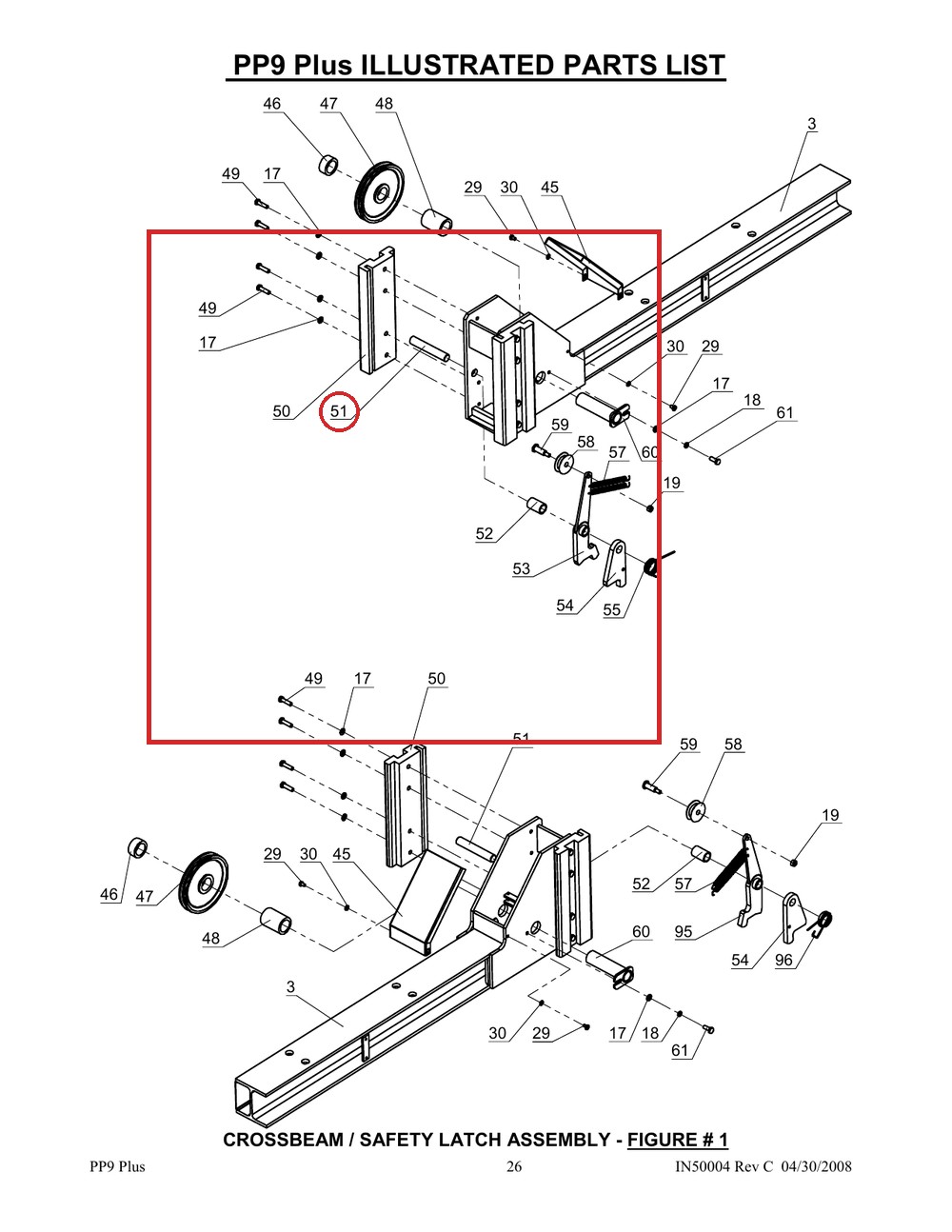

The Direct Lift NH4D-1009 is the Latch Shaft used in the Crossbeam / Safety Latch Assembly (Figure 1) on Direct Lift 9K Parking Wider V and PP9+ 9K four-post parking lifts.

The latch shaft is the pivot the safety latch rotates on as it engages and releases the lock positions. Wear, corrosion, or scoring on the shaft can make the latch stick or feel sloppy, compromising smooth lock engagement.

Direct-fit OEM replacement. When servicing, inspect the mating latch (NH4D-1003), springs, and bushings in the same assembly so the whole lock mechanism operates like new.
