Direct Lift V12TP-1012 Cable Pulley for I12, PRO10 / PROV10 / PV10 & 2-Column 10K Lifts

Description

Direct Lift V12TP-1012 Cable Pulley for I12, PRO10 / PROV10 / PV10 & 2-Column 10K Lifts

Service a worn, stretched, frayed, or damaged lift cable with the V12TP-1012 Cable Pulley, listed for use on I12, PRO10 / PROV10 / PV10 & 2-Column 10K Lifts. Correct cable fitment is important to proper lift operation, so match the part number and listed application to your Direct Lift equipment before ordering.

Product Information

• Brand / Equipment: Direct Lift
• Manufacturer / Reference Part Number: V12TP-1012
• Store SKU: FOD1012
• Component: Cable Pulley
• Listed Application: I12, PRO10 / PROV10 / PV10 & 2-Column 10K Lifts

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

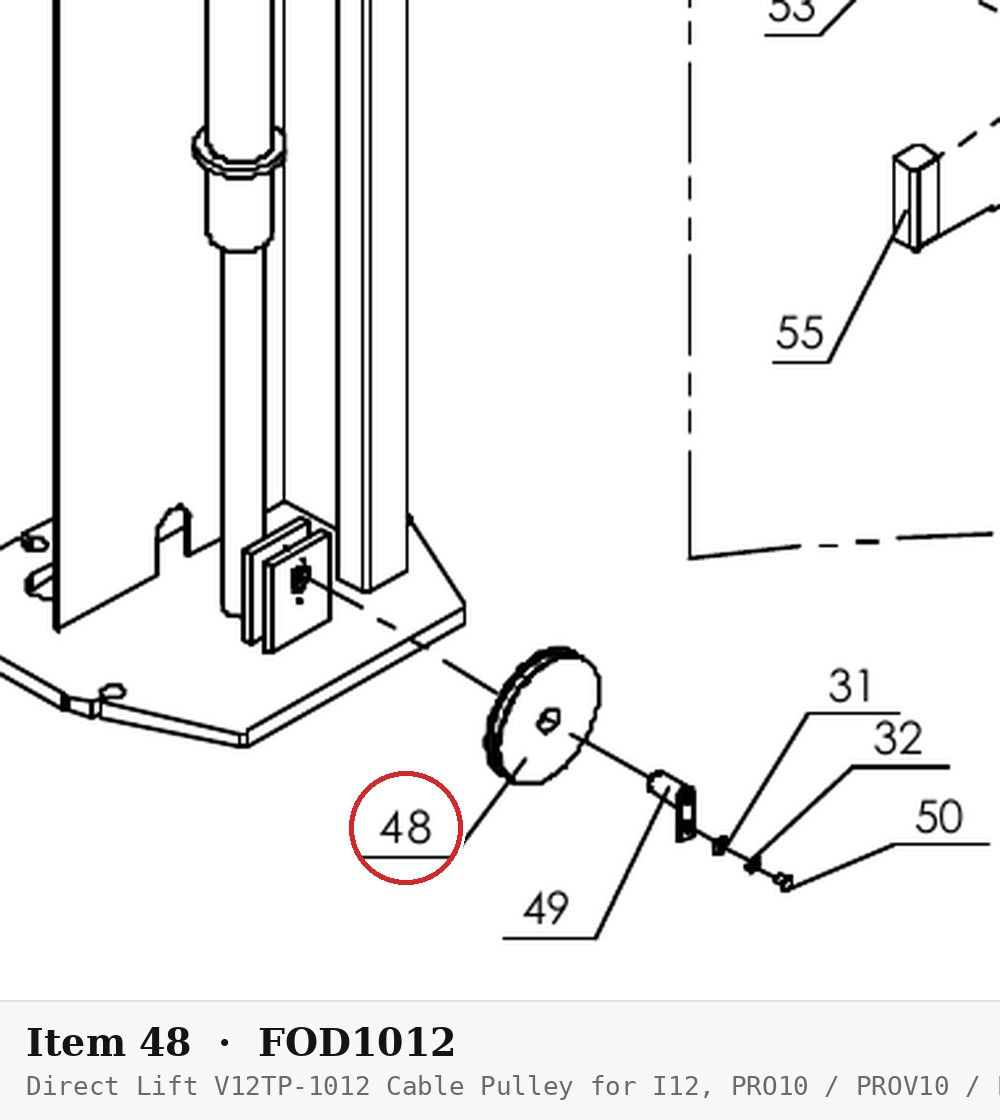

In the drawing images above this is part number 48 in the I12-Parts drawing and part number 68 in the PARTS BREAKDOWN 2-COLUMN 10K drawing and part number 68 in the PRO10 – PROv10 – PV10 new style, r drawing.

Fits the following lift models — part number V12TP-1012 appears in the parts breakdown of each of these lifts: Direct Lift I12, 10K Two-Column, PRO-10 / PROV10 / PV10 (new style), PROV12 / PRO-12, PV12.

The Direct Lift V12TP-1012 is the cable pulley (also listed as chain sheave) for the I12, PRO10 / PROV10 / PV10 new style, and 2-column 10K lifts. It appears in the Column & Carriage Components breakdown (Figure #8) and in Drawing 4 of the I12 manual. The pulley guides the equalizer cable through the column, keeping both carriages synchronized as the lift travels.

Worn pulley grooves fray and shorten the life of equalizer cables, so replace the pulley if the groove is worn, chipped, or the pulley wobbles on its shaft. This is the OEM replacement pulley for the listed models and works with shaft V12TP-1010. Confirm your model against Figure #8 before ordering.
