Description
Forward Lift 40050 #10-24NC x 3/4" Slotted Truss Head Machine Screw Grade 5 for 12K & OR14 4-Post Lifts
Replace missing, worn, or damaged lift hardware with the 40050 #10-24NC x 3/4" Slotted Truss Head Machine Screw Grade 5, listed for use on 12K & OR14 4-Post Lifts. This hardware is used when servicing the specified Forward Lift assembly. Match the part number, size or description, and listed application before ordering.
Product Information
- Brand / Equipment: Forward Lift
- Manufacturer / Reference Part Number: 40050
- Store SKU: FOD0050
- Component: #10-24NC x 3/4" Slotted Truss Head Machine Screw Grade 5
- Listed Application: 12K & OR14 4-Post Lifts
Fitment & Ordering Notes
Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.
Additional Existing Product / Fitment Information

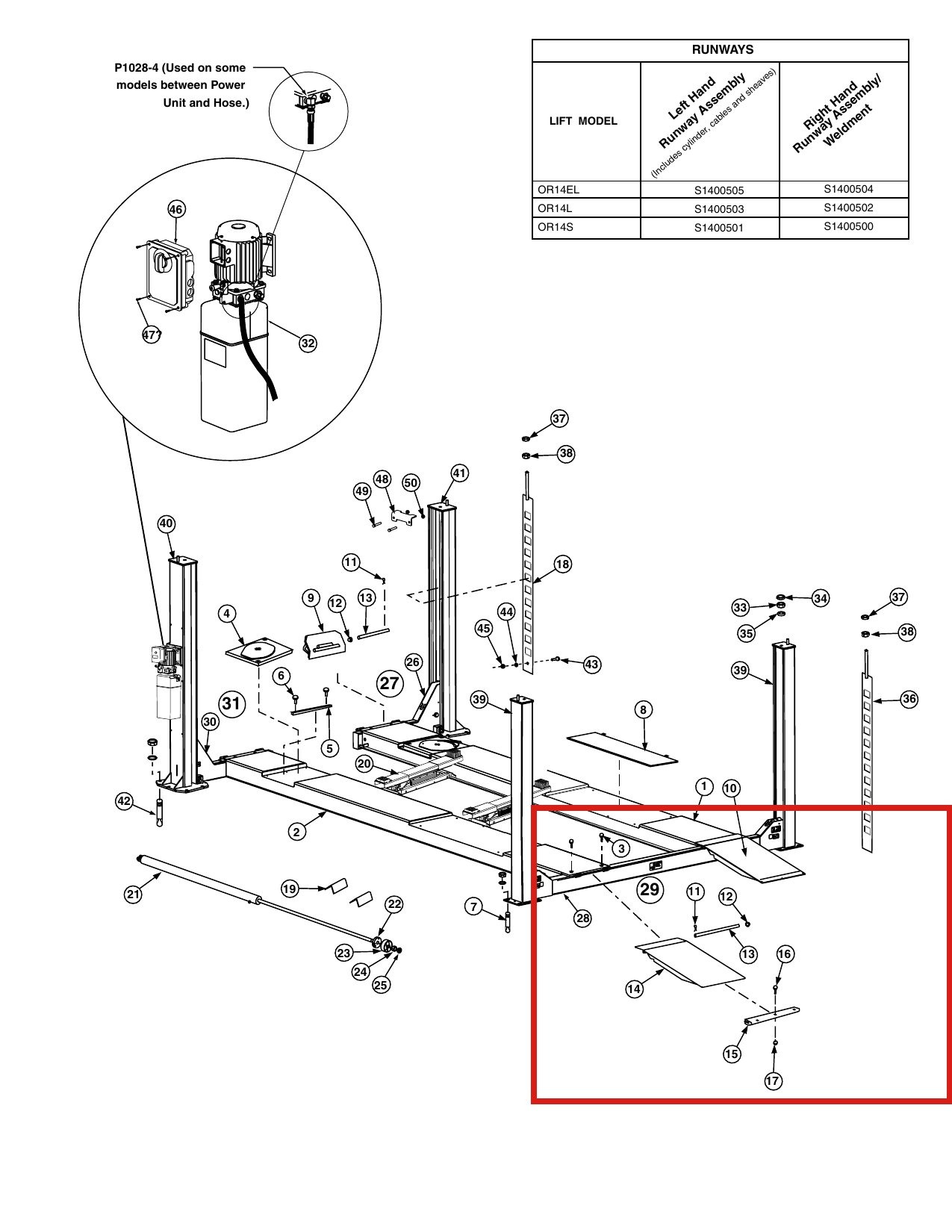

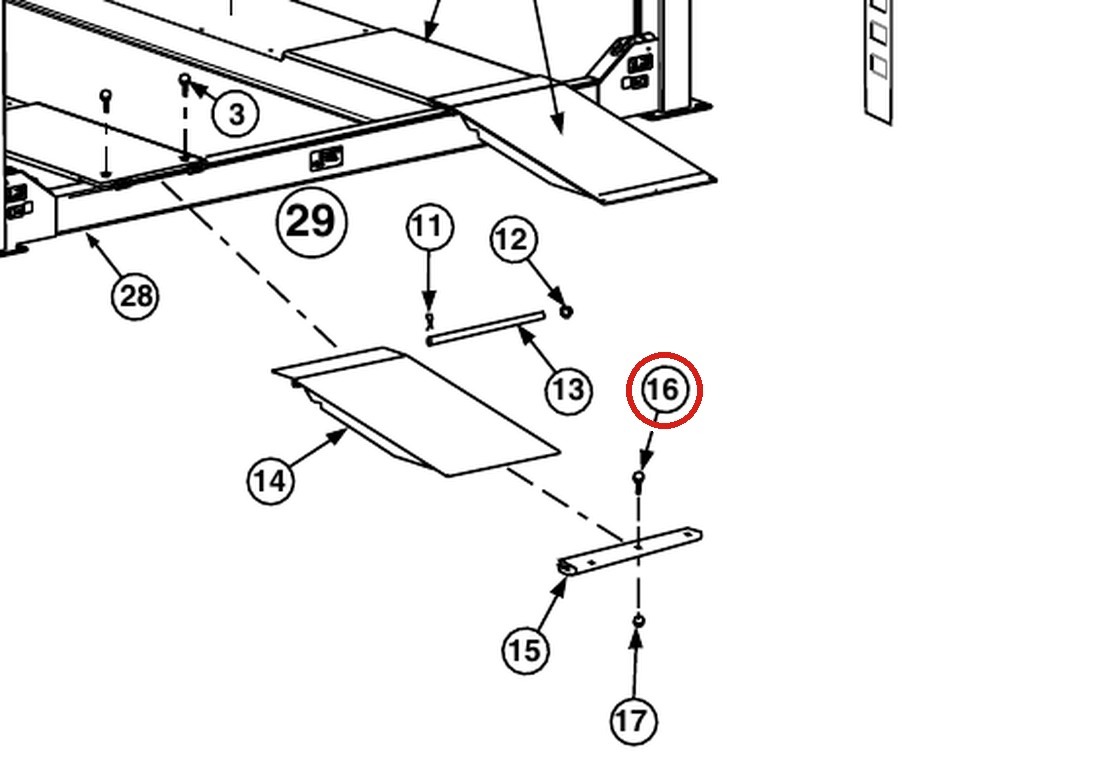

This is part number 16 in the drawing image above.
Fits the following lift models — part number 40050 appears in the parts breakdown of each of these lifts: Rotary Lift 12K Four-Post Open-Front, OR14 14K Four-Post.
The Rotary Lift 40050 is a #10-24NC x 3/4″ slotted truss head machine screw (SLTRUSSHMS), plated, Grade 5, used across Rotary light-duty four-post and low-rise lift equipment.
Per the parts breakdowns, it fits the Rotary 12K four-post open-front lift (Main Assembly) and the OR14 14K four-post lift (Runways section). It secures trim and small components along the runways and main assembly where a #10 truss head screw is called out.
OEM-spec replacement hardware for Rotary lifts; an alternate source equivalent may be supplied to the same specification. Verify against the item callout in your lift’s parts breakdown.
Cross-check part number: Forward Lift 40050. This is a Forward Lift replacement part.
