Forward Lift H4D-Y004 90 Degree Elbow Fitting for CR14, 9K Wide & DP-7 Lifts

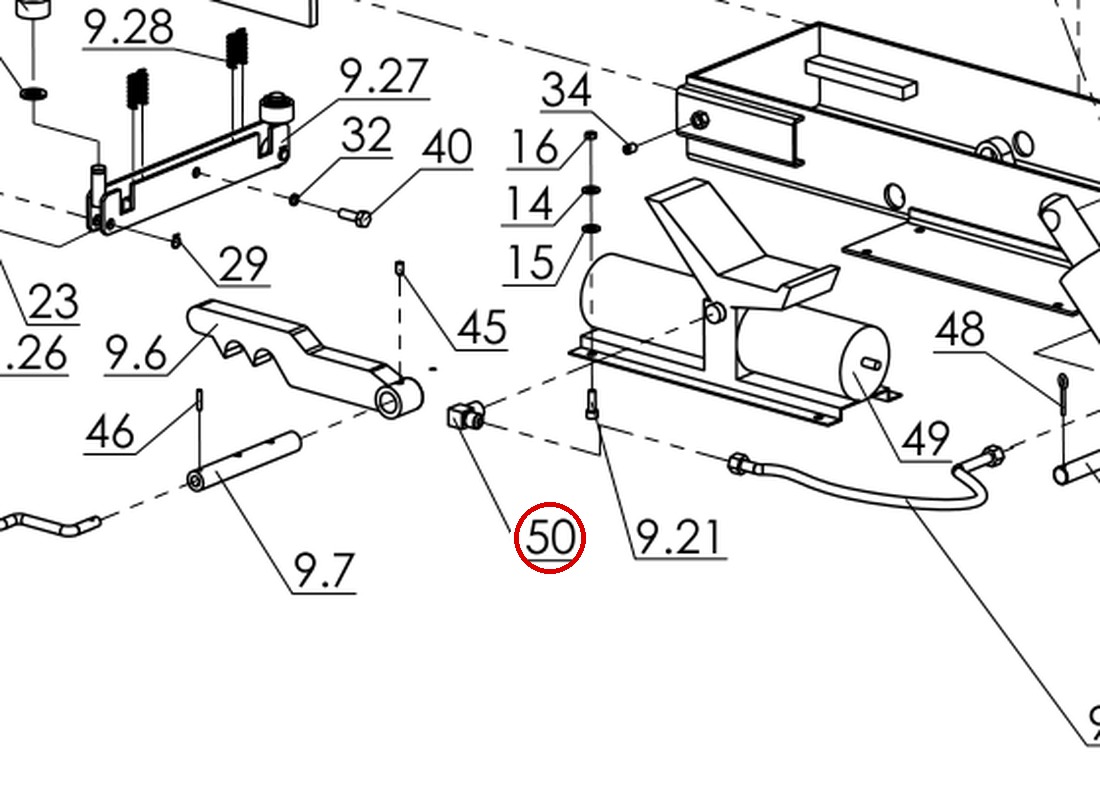

FODY004 pro-14f-14000-rolling-jack-assembly-figure-15 item 50

FODY004 pro-14f-14000-rolling-jack-assembly-figure-15 item 50 (location)

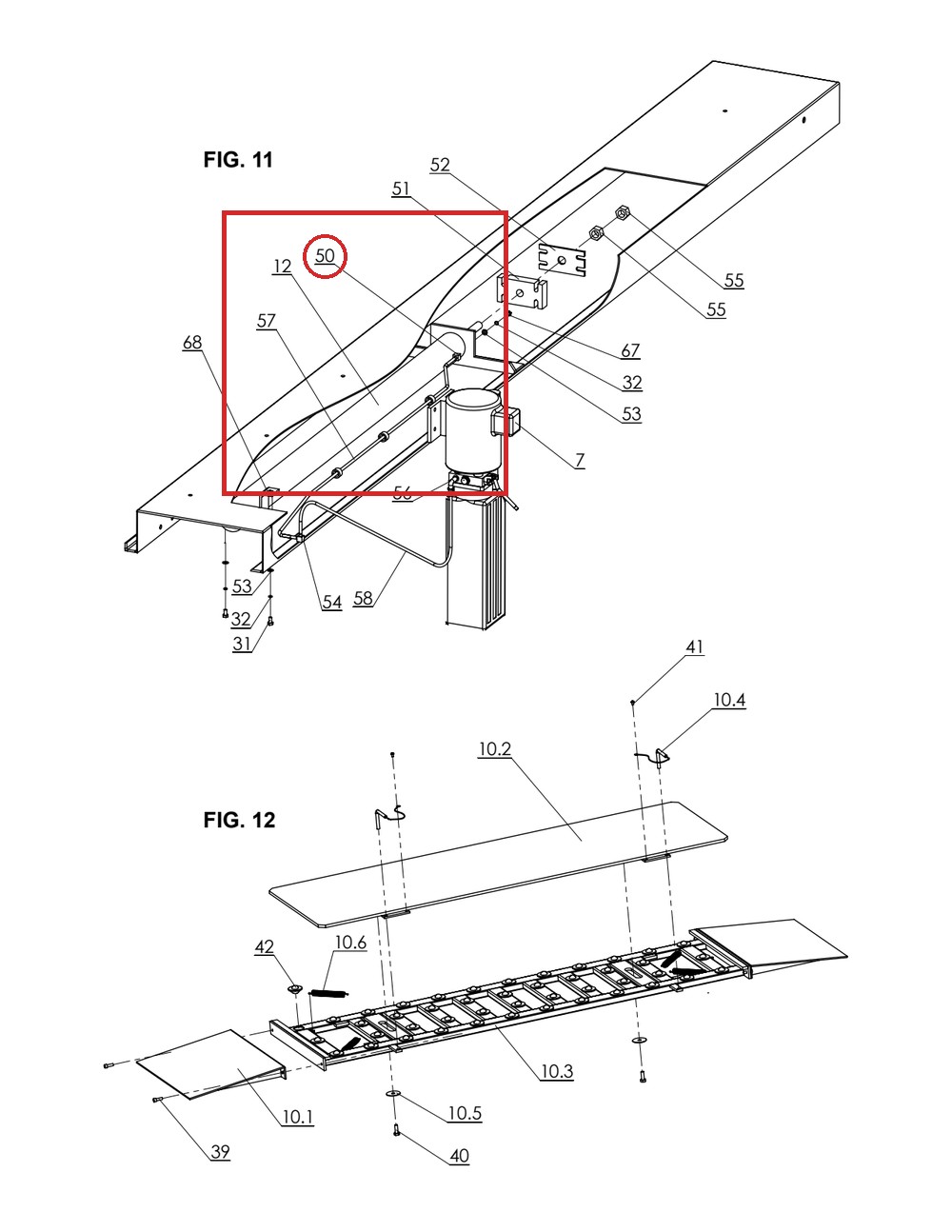

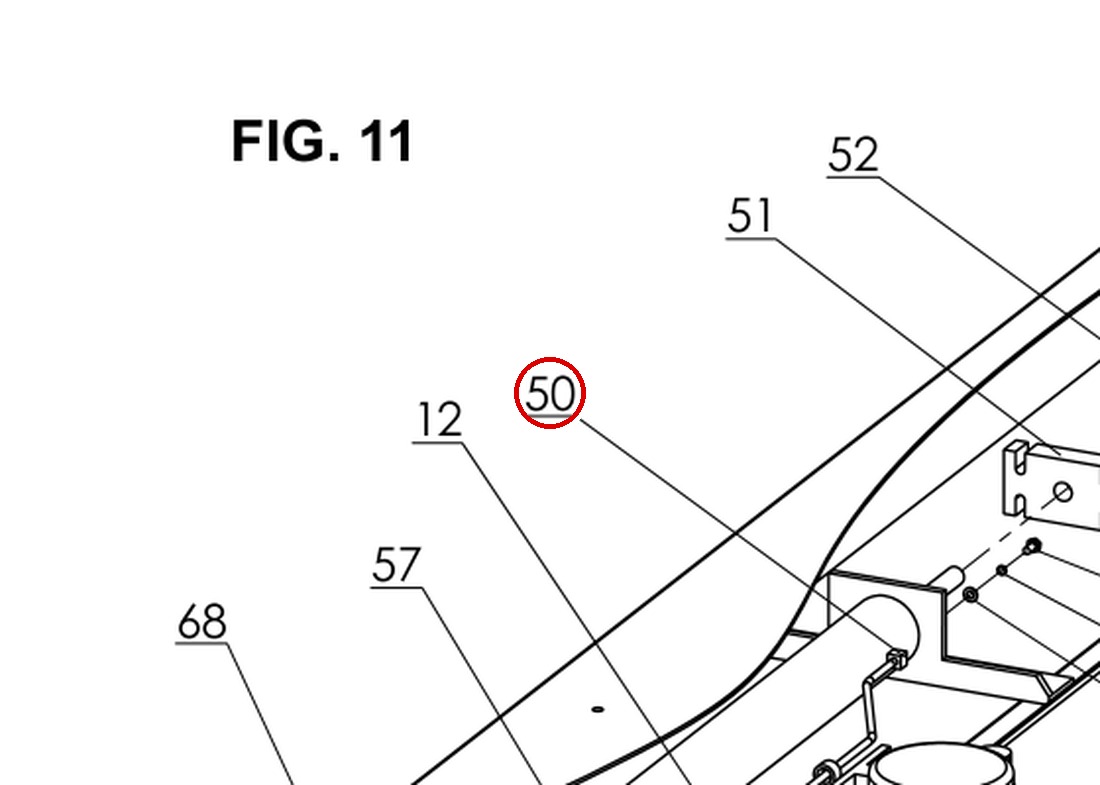

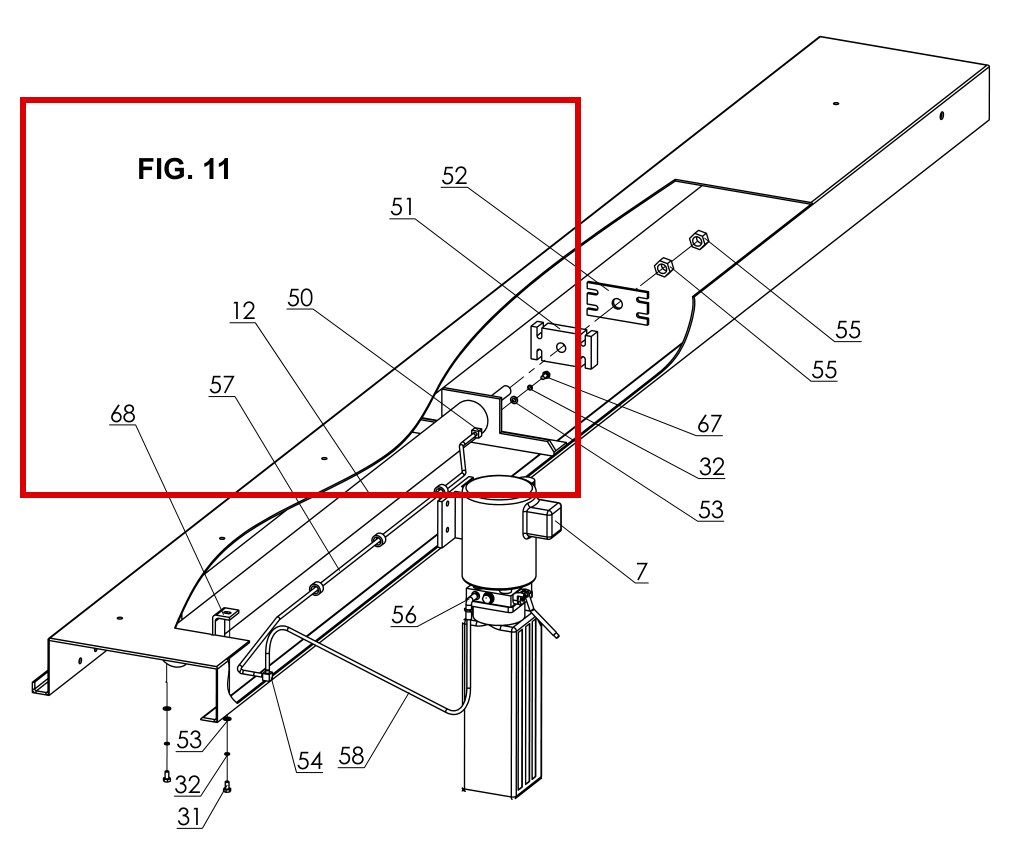

Pro 14F 14000 Fig 11 item 50 FODY004 (location)

$39.44

Availability: In Stock

SKU: FODY004

Forward Lift H4D-Y004 — 90 Degree Elbow Fitting for CR14, 9K Wide & DP-7 Lifts. Use the part number and listed lift application to confirm compatibility before ordering.

Forward Lift H4D-Y004 90 degree hydraulic elbow fitting for CR14 (14000EWT), 9K wide parking and DP-7 lifts.

Availability may vary depending on vendor stock.

Description

Forward Lift H4D-Y004 90 Degree Elbow Fitting for CR14, 9K Wide & DP-7 Lifts

The H4D-Y004 90 Degree Elbow Fitting is listed for use on CR14, 9K Wide & DP-7 Lifts and is intended for service or repair of compatible Forward Lift equipment. Match the reference part number, component description, and listed application to your original lift part before ordering.

Product Information

Brand / Equipment: Forward Lift
Manufacturer / Reference Part Number: H4D-Y004
Store SKU: FODY004
Component: 90 Degree Elbow Fitting
Listed Application: CR14, 9K Wide & DP-7 Lifts

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

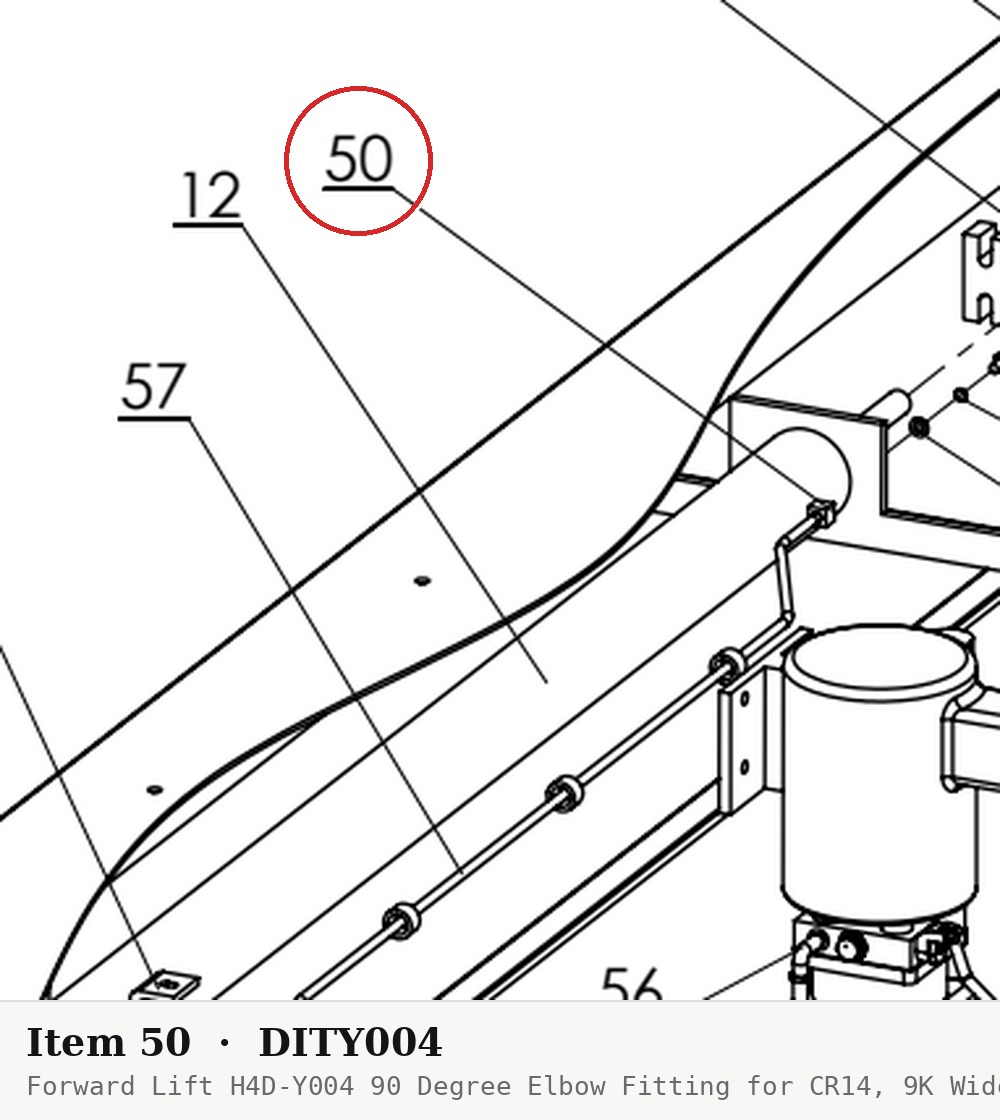

In the drawing images above this is part number 50 in the CR14 (14000EWT) 994359 -9-20071 drawing and part number 78 in the PARTS BREAKDOWN 9K PARKING WIDER V drawing and part number 62 in the PARTS BREAKDOWN DP-7 4-POST PARKIN drawing.

Fits the following lift models — part number H4D-Y004 appears in the parts breakdown of each of these lifts: Direct Lift CR14 (14,000 lb EWT), 9K Parking (wide version), DP-7 Four-Post Parking, PRO-14F 14K.

This 90 degree elbow fitting connects hydraulic lines in the lift’s power unit and runway hydraulics circuit. It appears in the (Main Side) Runway & Hydraulics Components diagram (Figure #3), the hydraulic cylinder and power unit drawing (Drawing 6) of the DP-7 breakdown, and FIG. 11 of the CR14 breakdown.

OEM replacement fitting from the Forward Lift parts line. Replace leaking or damaged elbows and verify the fitting location against your lift’s hydraulic diagram before ordering.
