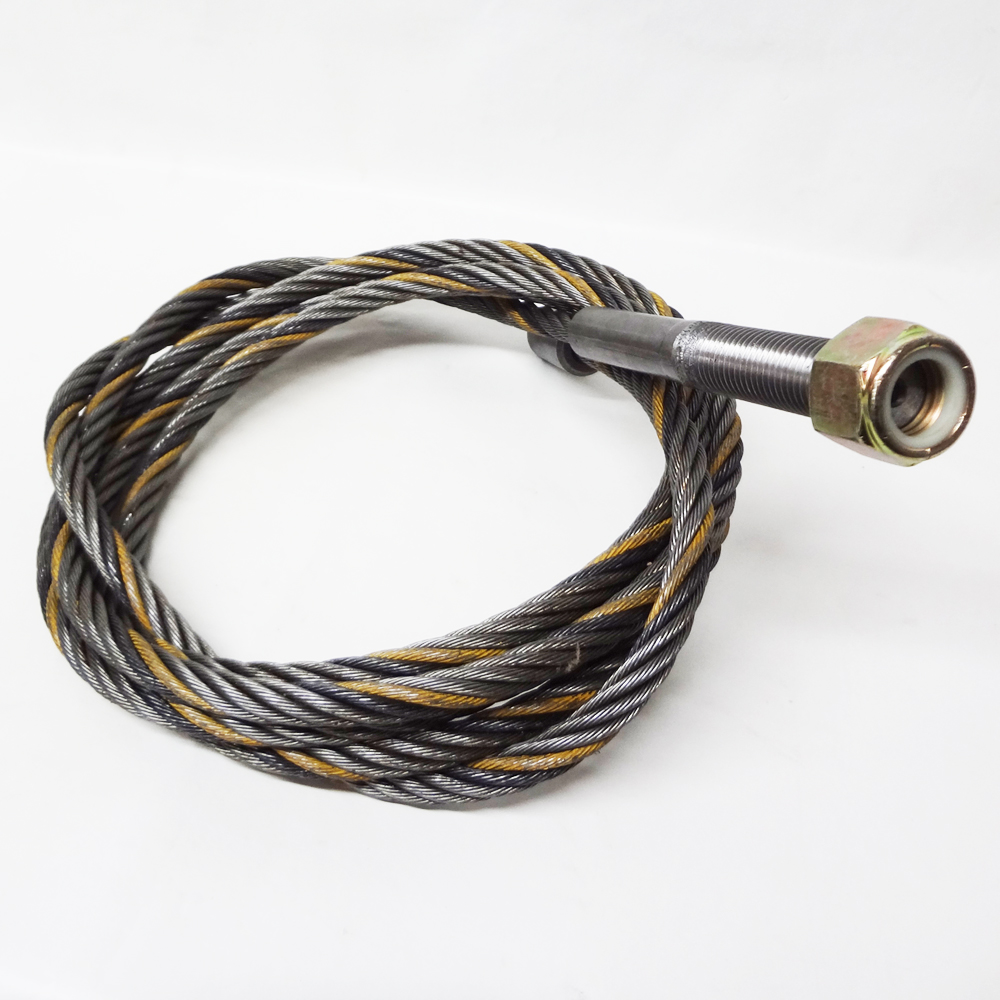

Forward CR14 4-Post Left Rear Replacement Lift Cable – H4P-5002-1 / H4P-5002B
This is the left rear equalizer/lifting cable for the Forward CR14 4-post car lift. To confirm correct position: when driving the vehicle onto the lift, the power unit should be located in the left front corner – this cable is the one diagonally opposite, at the left rear. Before installation, inspect the existing cable for fraying, kinking, or damage to the threaded stud and button stop end fittings. Replace any cable showing visible wear immediately to maintain safe lift operation.
Product Information
- Brand: Forward Lift
- Equipment Type: 4-Post Car Lift
- Part Numbers: H4P-5002-1, H4P-5002B
- Store SKU: DIT0021
- Component / Position: Left Rear Lifting Cable

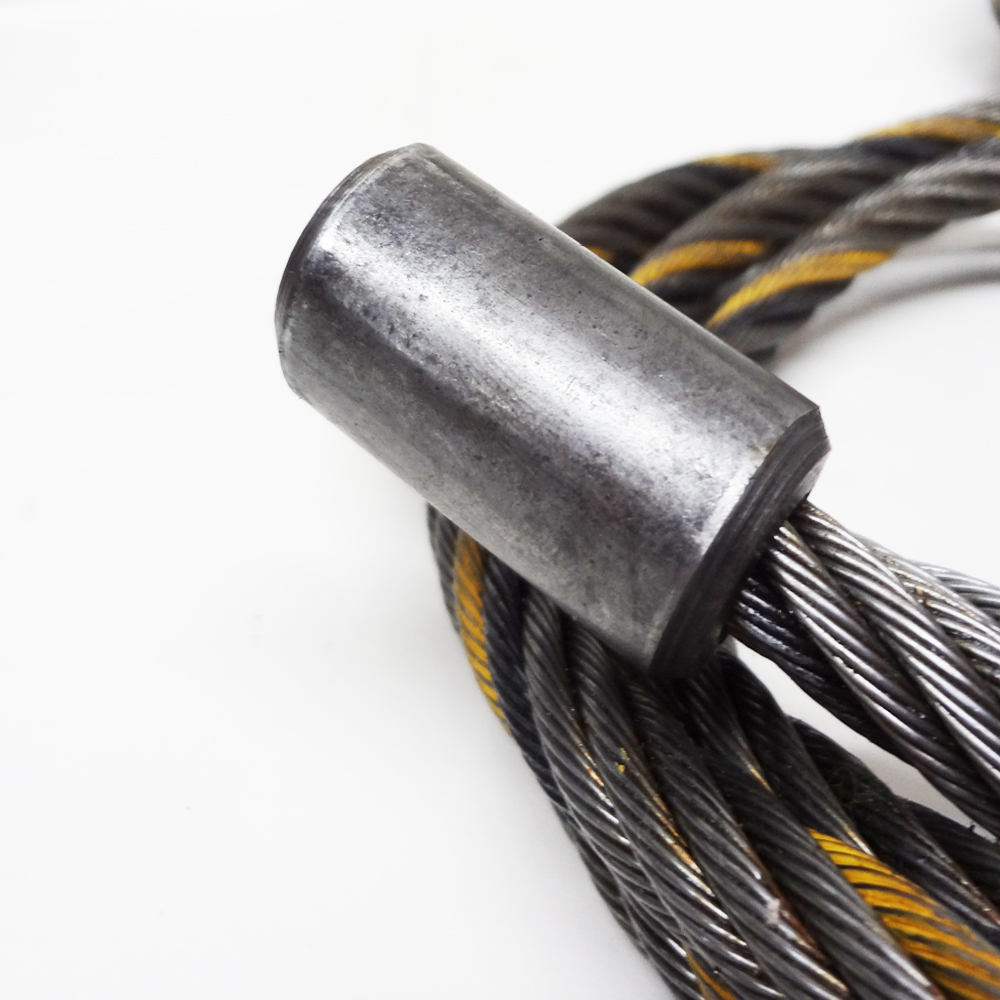

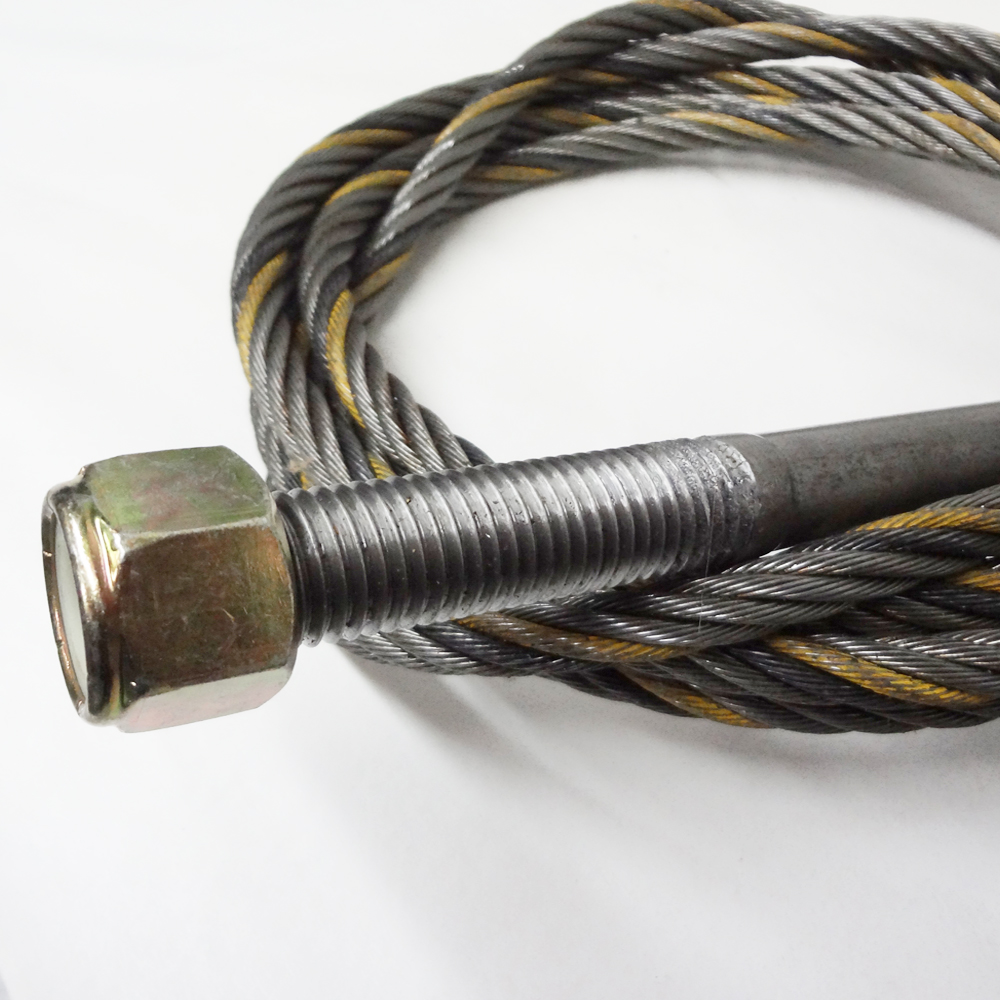

- End Fittings: 1 Threaded Stud, 1 Button Stop
- Weight: 6.66 lbs
- Construction: Built in the USA; pull tested to meet or exceed OEM specifications
- Application: Forward CR14 4-post lift (14000EWT)
Compatible Makes / Verified Fitment Models
The following Forward Lift CR14 series models are listed in the original product data. Fitment is sourced from input data; always verify against your lift serial plate before ordering.
- Forward CR14 (14000EWT)
- Forward CR14113000
- Forward CR14114000
- Forward CR14115000
- Forward CR14310000
- Forward CR14511000
- Forward CR14512000
- Forward CR14513000
Parts Diagram & Manual Reference
This cable is referenced in the CR14 (14000EWT) service documentation under the following sections:
- Figure 6-5. Illustrated Parts Breakdown (Table 6-4 – Cable/Cylinder Routing) – use this diagram to confirm cable routing and attachment points for the left rear position
- Table 6-8. Master (Complete) Parts Listing – cross-reference H4P-5002-1 or H4P-5002B against your serial number and build date to confirm correct part selection
Replacement / Cross-Reference Numbers
- H4P-5002-1 – Forward Lift OEM part number (left rear cable)
- H4P-5002B – Alternate Forward Lift part number for the same left rear cable
Fitment & Ordering Notes
- This listing is for a single cable (left rear position only).
- A complete 4-cable kit for the CR14 is available separately in other store listings – contact us at 866-902-6060 for assistance.
- If you are unsure which cable position you need or whether this part fits your specific lift, call 866-902-6060 before ordering.
- Always verify the cable position using Figure 6-5 of the CR14 service manual before installation.
