Forward Lift P3536 Single Phase Power Unit for OR14 14K 4-Post Lift (208-230V 60Hz)

Description

Forward Lift P3536 Single Phase Power Unit for OR14 14K 4-Post Lift (208-230V 60Hz)

The P3536 Single Phase Power Unit is listed for use on OR14 14K 4-Post Lift (208-230V 60Hz) and is intended for service or repair of compatible Forward Lift equipment. Match the reference part number, component description, and listed application to your original lift part before ordering.

Product Information

• Brand / Equipment: Forward Lift
• Manufacturer / Reference Part Number: P3536
• Store SKU: FOD35361
• Component: Single Phase Power Unit
• Listed Application: OR14 14K 4-Post Lift (208-230V 60Hz)

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

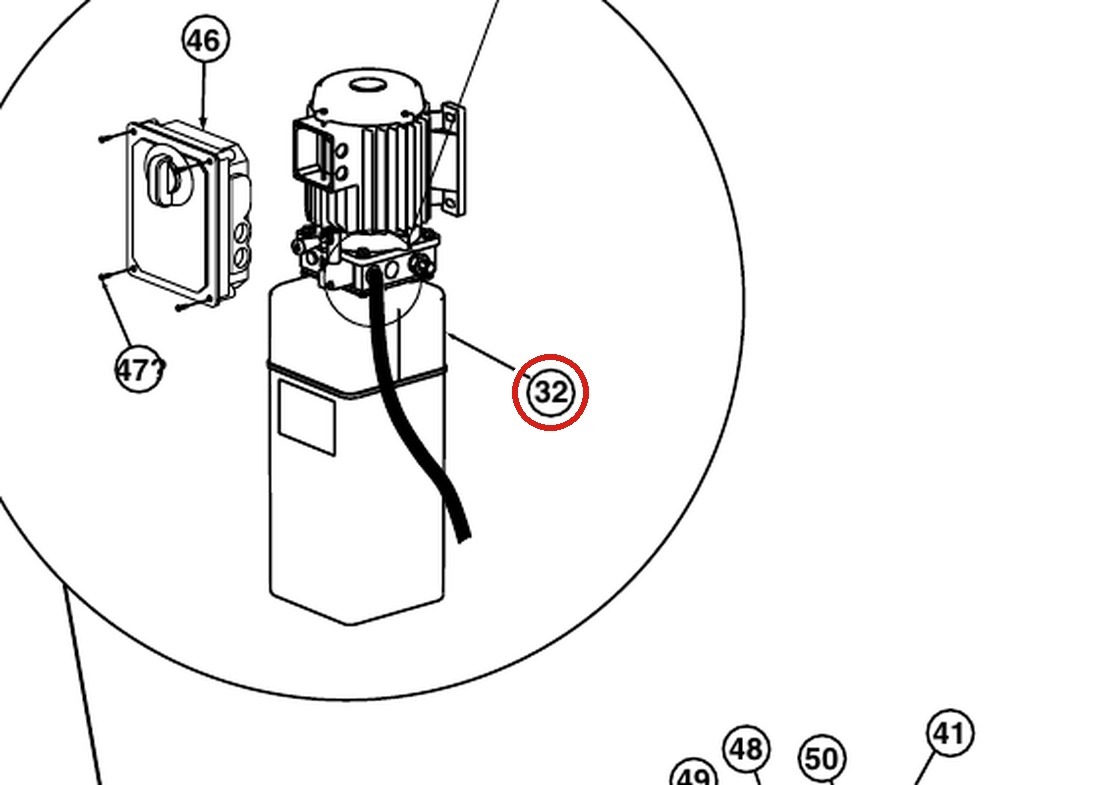

This is part number 32 in the drawing image above.

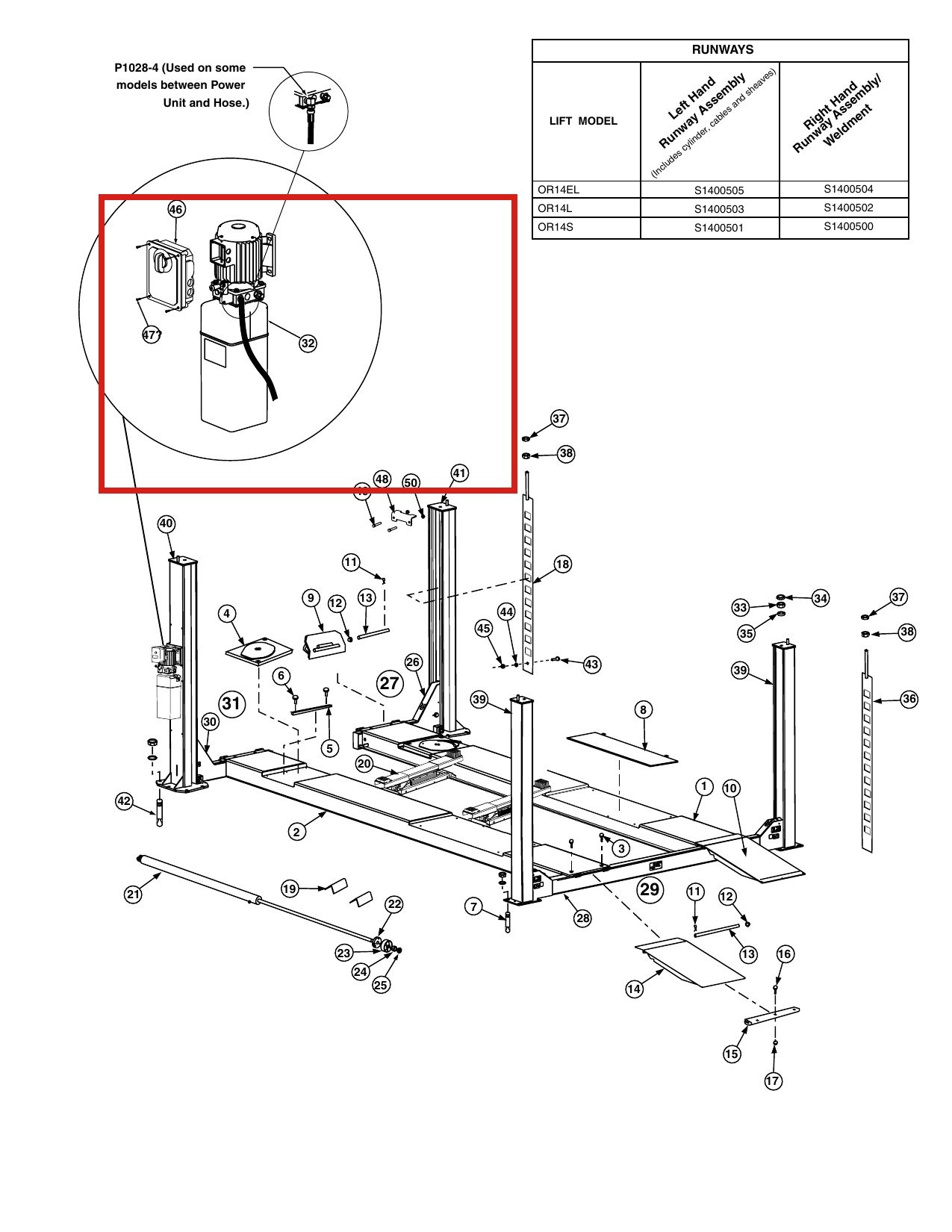

1PH 60Hz 208-230V; fits the OR14 14K 4-post lift, listed in the RUNWAYS (Main Assembly / OR14 Parts) breakdown. This power unit is also the unit included in the P3536KIT.

The power unit provides the hydraulic pressure that raises the OR14’s runways to full height under a 14,000 lb. load and controls lowering through its valve. Replacing a failing unit cures slow lifting, pressure loss and motor problems on this four-post lift.

OEM light-duty Rotary 4-post/low-rise replacement part. Three-phase OR14 installations use P3047. Confirm your electrical supply and serial number before ordering.

Cross-check part number: Forward Lift P3536. This is a Forward Lift replacement part.
