Challenger / Quality JSJ4-02-09 Lock Release Cable Pulley for E10, LE10, E12, Q10, Q12, X10 2-Post Lifts

Description

Challenger / Quality JSJ4-02-09 Lock Release Cable Pulley for E10, LE10, E12, Q10, Q12, X10 2-Post Lifts

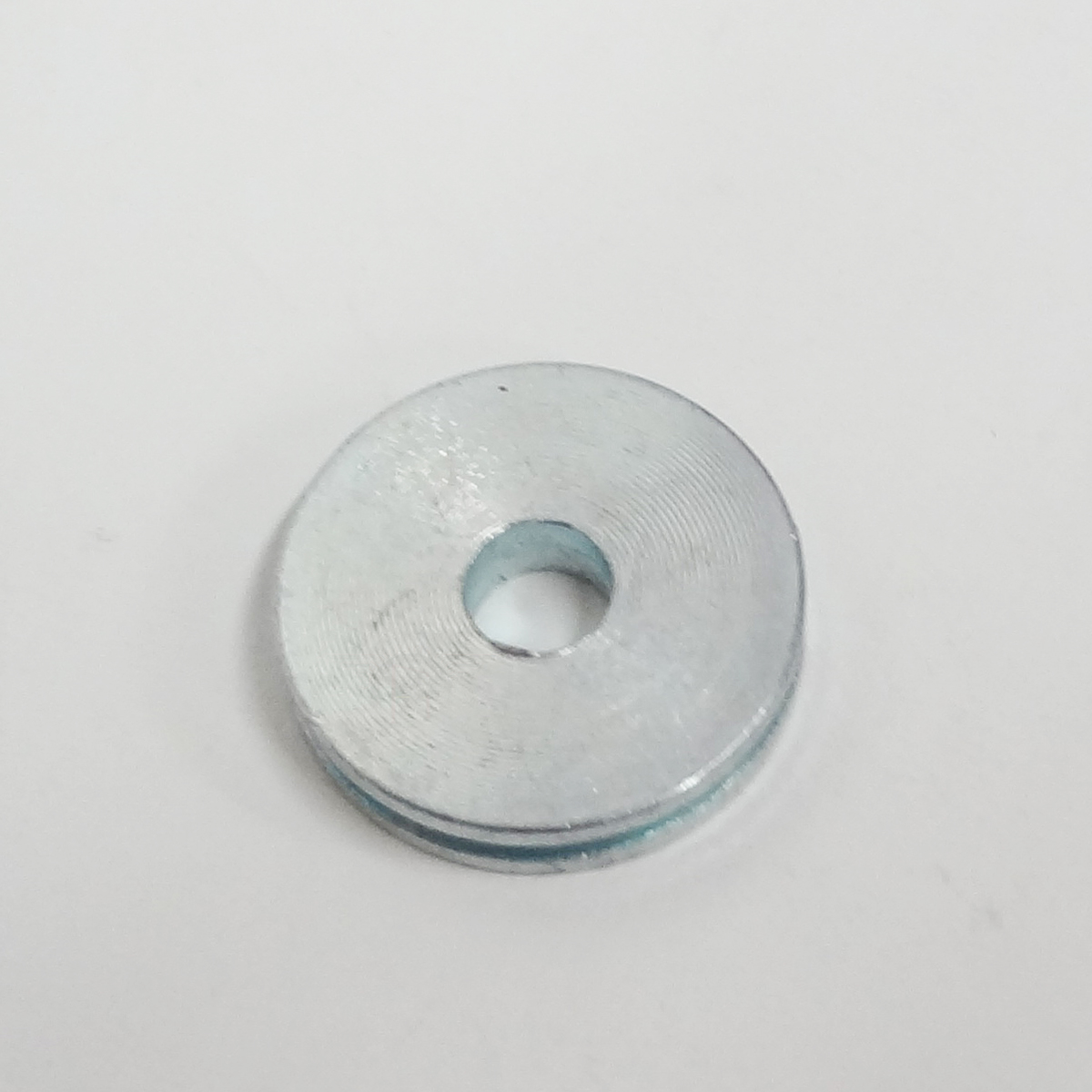

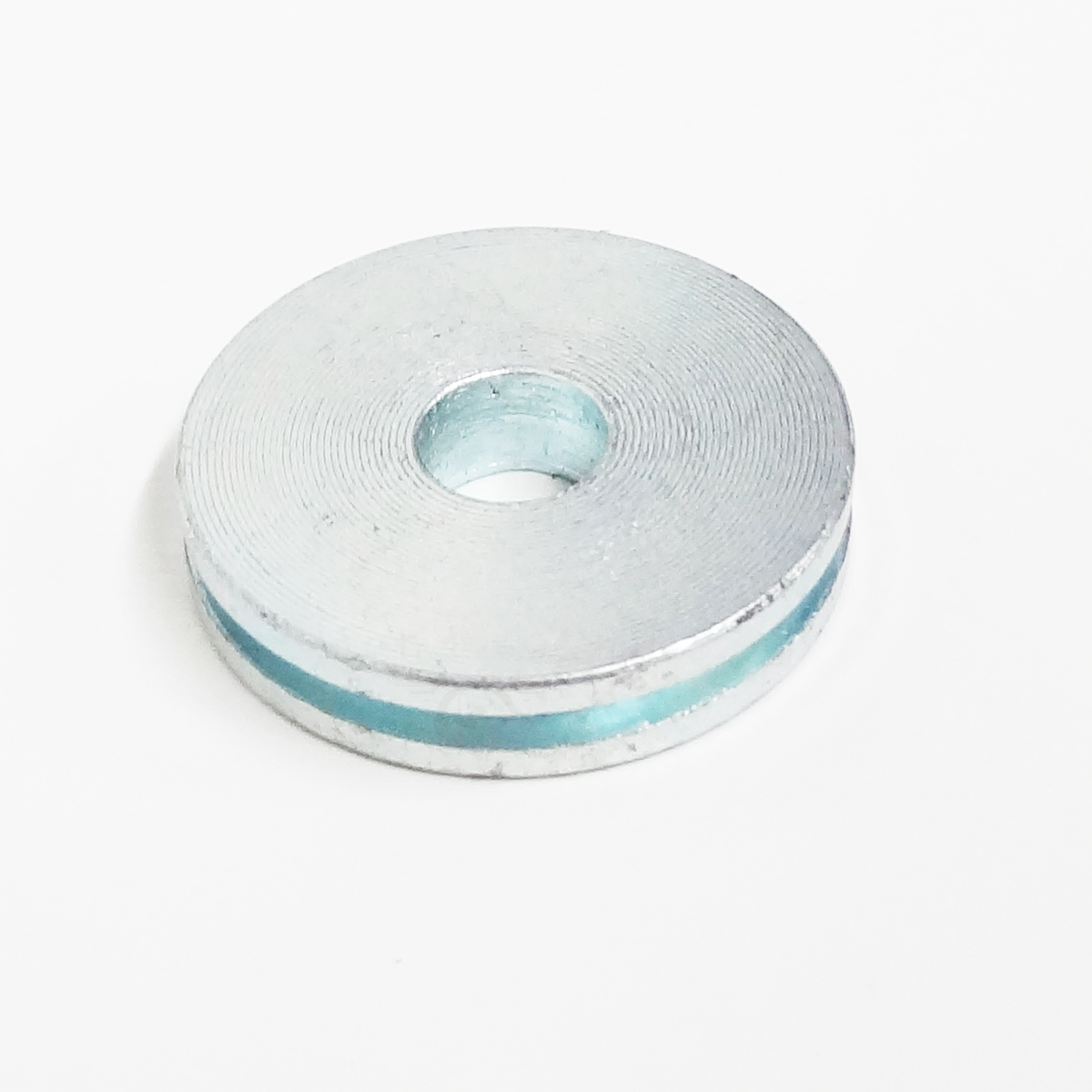

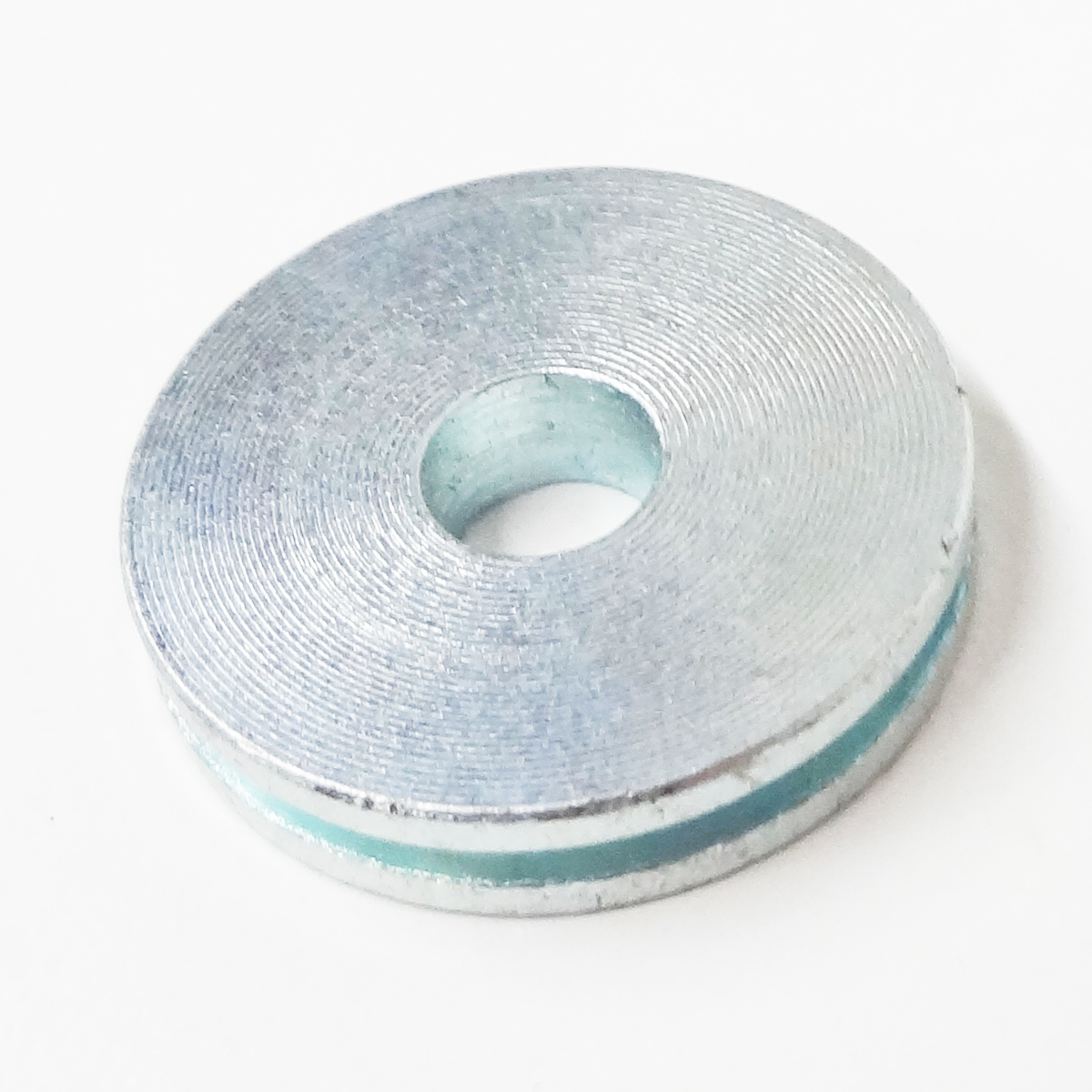

The lock release cable pulley (sheave) is the small pulley located directly above or below the main locking mechanism on the lift post. The narrow safety cable wraps around this pulley as it routes through the post to release the safety locks. Replace this pulley when you see groove wear, cracking, or when the cable begins to fray at the contact point.

Product Information

• Brand / Equipment: Challenger Lift / Quality Lift
• Manufacturer / Reference Part Number: JSJ4-02-09 (also X10-031)
• Store SKU: CHR0209
• Component: Lock Release Cable Pulley / Safety Cable Sheave
• Application: 2-post lifts with single-point lock release, 7,000-12,000 lb capacity
• Listed Application: Challenger E10, LE10, E12, Q10, Q12, X10

Replacement / Cross-Reference Numbers

• Challenger JSJ4-02-09
• Challenger X10-031

Fitment & Ordering Notes

Verify your lift model and confirm your lift uses a single-point lock release before ordering. For help identifying the correct part, call 866-902-6060.
