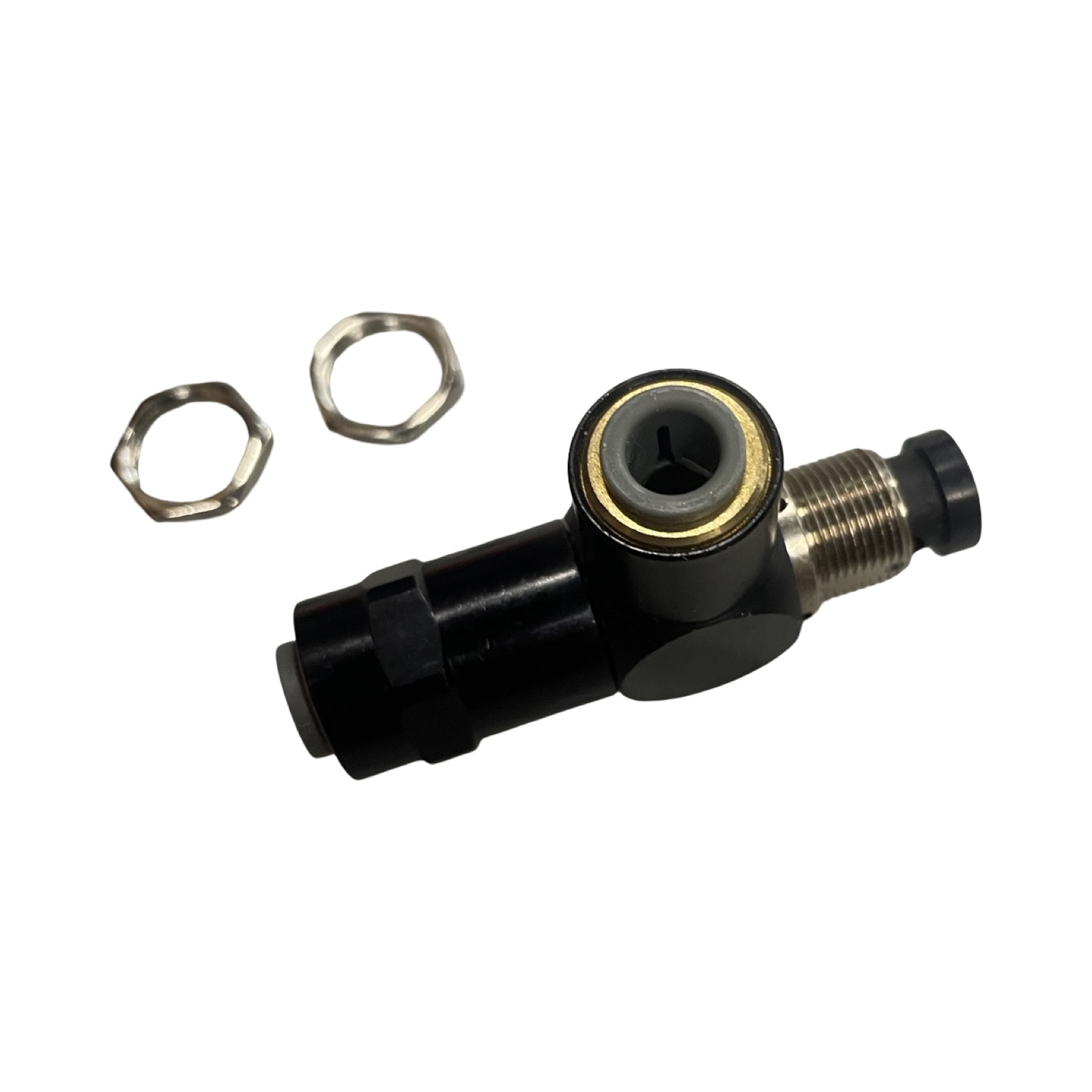

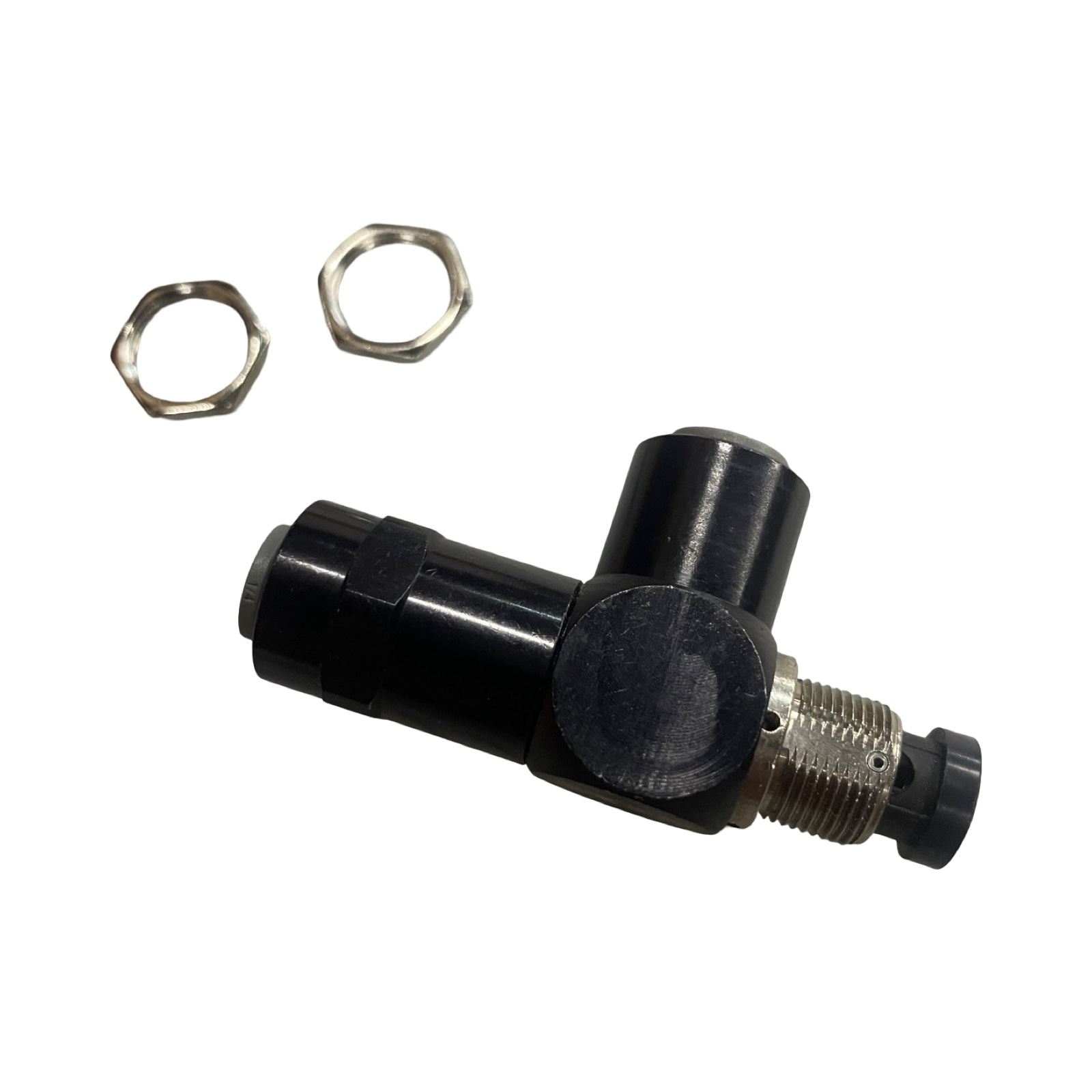

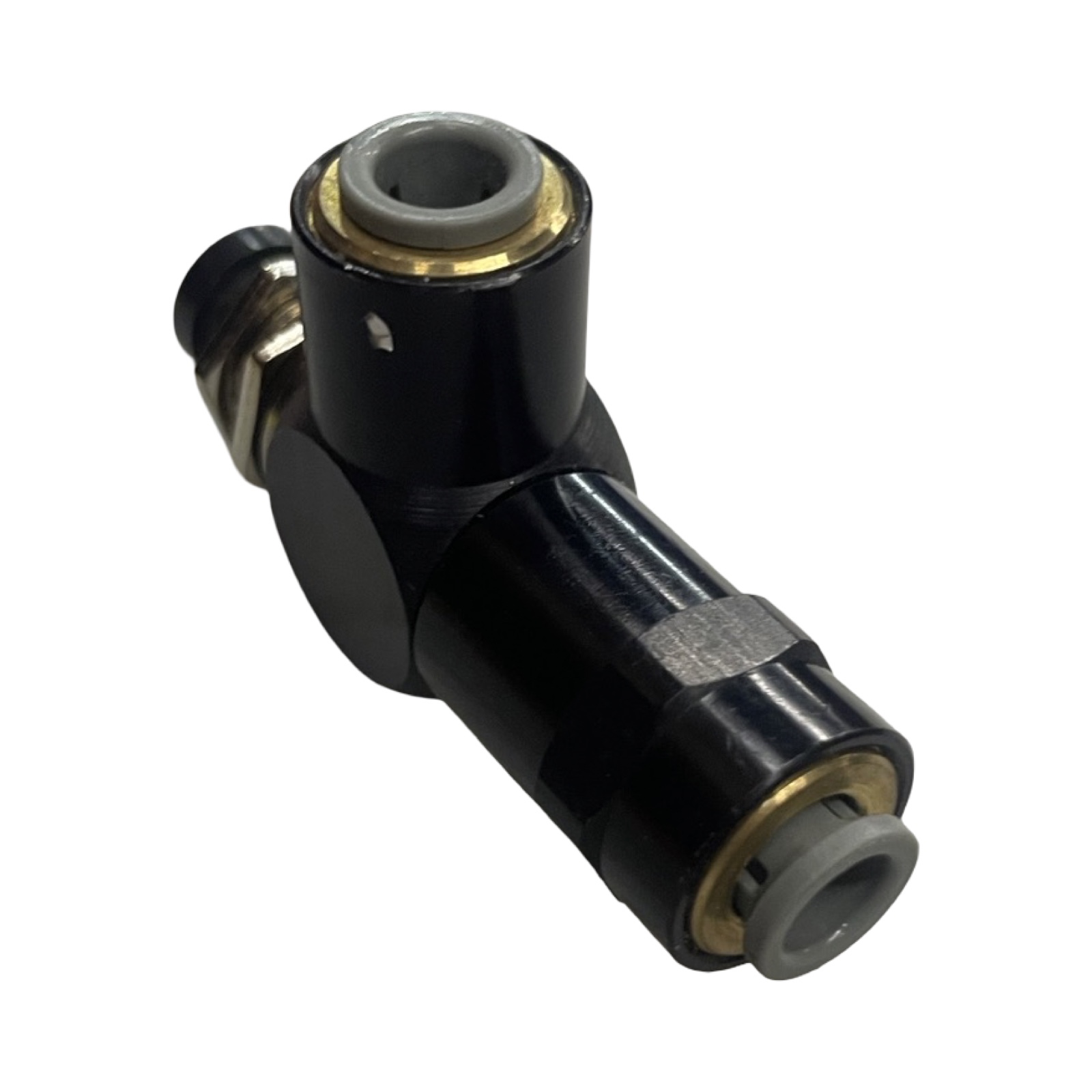

Rotary Lift FA3203 / FA3134-10 Air Lock Release Valve for SM90, AR90, SM120, QLHV 4-Post Lifts

Description

Rotary Lift FA3203 / FA3134-10 Air Lock Release Valve for SM90, AR90, SM120, QLHV 4-Post Lifts

The air lock release valve is mounted near the power unit on Rotary 4-post lifts and on some larger 2-post and inground lift models. It controls the air pressure that releases the safety locks in all four columns. This aftermarket valve can replace both push-button and toggle switch style lock release valves and mounts into the factory bracket with air lines connecting to the lock mechanisms. Replace when you find air leaking at the valve body, locks that fail to release, or sluggish response when actuating the valve.

Product Information

• Brand / Equipment: Rotary Lift
• Manufacturer / Reference Part Number: FA3203 / FA3134-10
• Store SKU: ROY3203
• Component: Air Lock Release Valve / Air Switch
• Style: Push-button; also replaces toggle switch style valves
• Capacity Range: Rotary lifts from 9,000 lb to 30,000 lb and above
• Listed Application: Rotary SM90, AR90, SM120, QLHV130, QLHV131, QLHV132, and more

Replacement / Cross-Reference Numbers

• Rotary FA3203
• Rotary FA3134-10

Fitment & Ordering Notes

Verify your lift model is listed above. This valve is used on Rotary 4-post lifts as well as some 2-post and inground models. For help identifying the correct valve for your specific model, call 866-902-6060.

Additional Product Information

Aftermarket replacement – not produced by the original equipment manufacturer.
