Rotary Lift 40108 1/4"-20NC x 1" HHCS Grade 5 Bolt for DL9, DP10 & I10 Two-Post Lifts

Description

Rotary Lift 40108 1/4"-20NC x 1" HHCS Grade 5 Bolt for DL9, DP10 & I10 Two-Post Lifts

Replace missing, worn, or damaged lift hardware with the 40108 1/4"-20NC x 1" HHCS Grade 5 Bolt, listed for use on DL9, DP10 & I10 Two-Post Lifts. This hardware is used when servicing the specified Rotary Lift assembly. Match the part number, size or description, and listed application before ordering.

Product Information

• Brand / Equipment: Rotary Lift
• Manufacturer / Reference Part Number: 40108
• Store SKU: ROY0108
• Component: 1/4"-20NC x 1" HHCS Grade 5 Bolt
• Listed Application: DL9, DP10 & I10 Two-Post Lifts

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

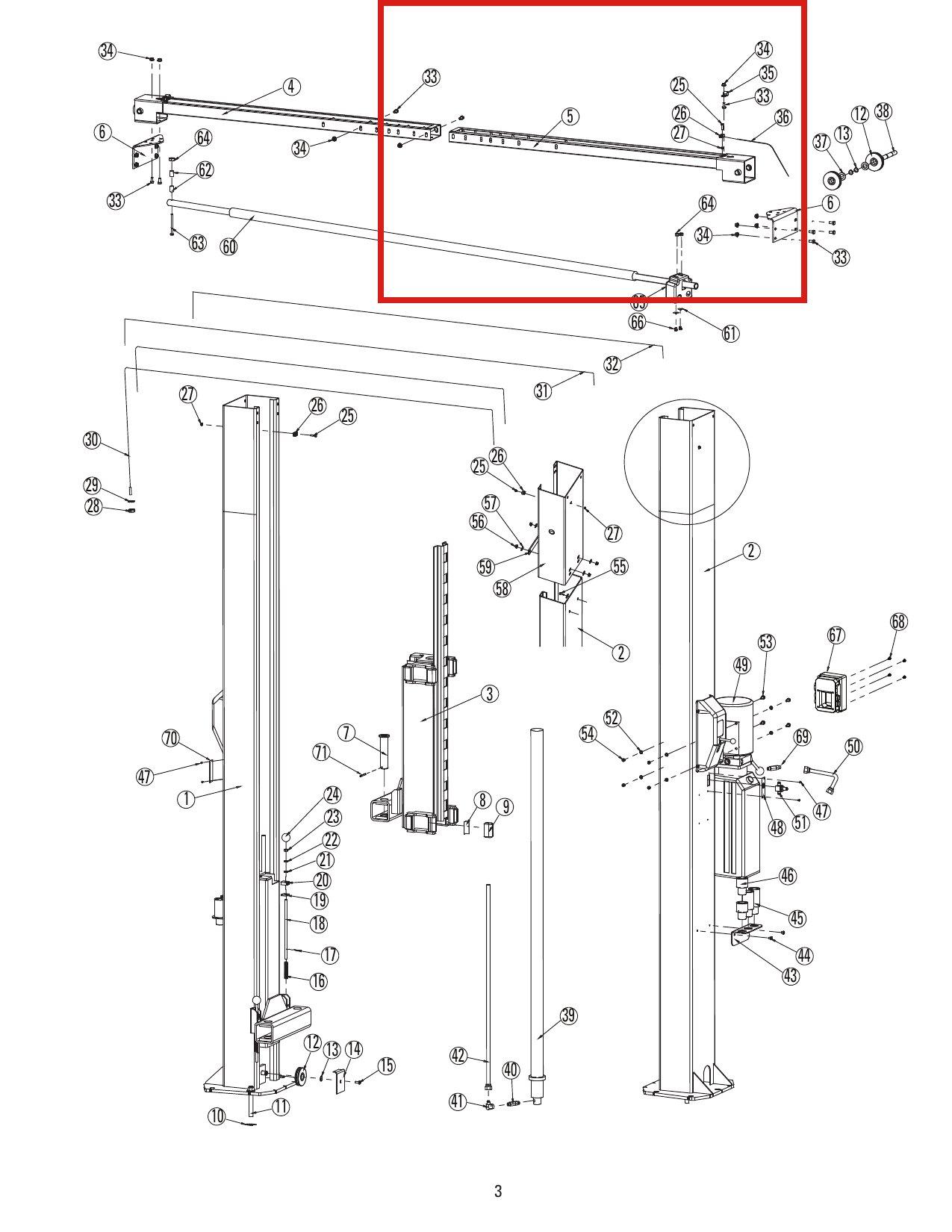

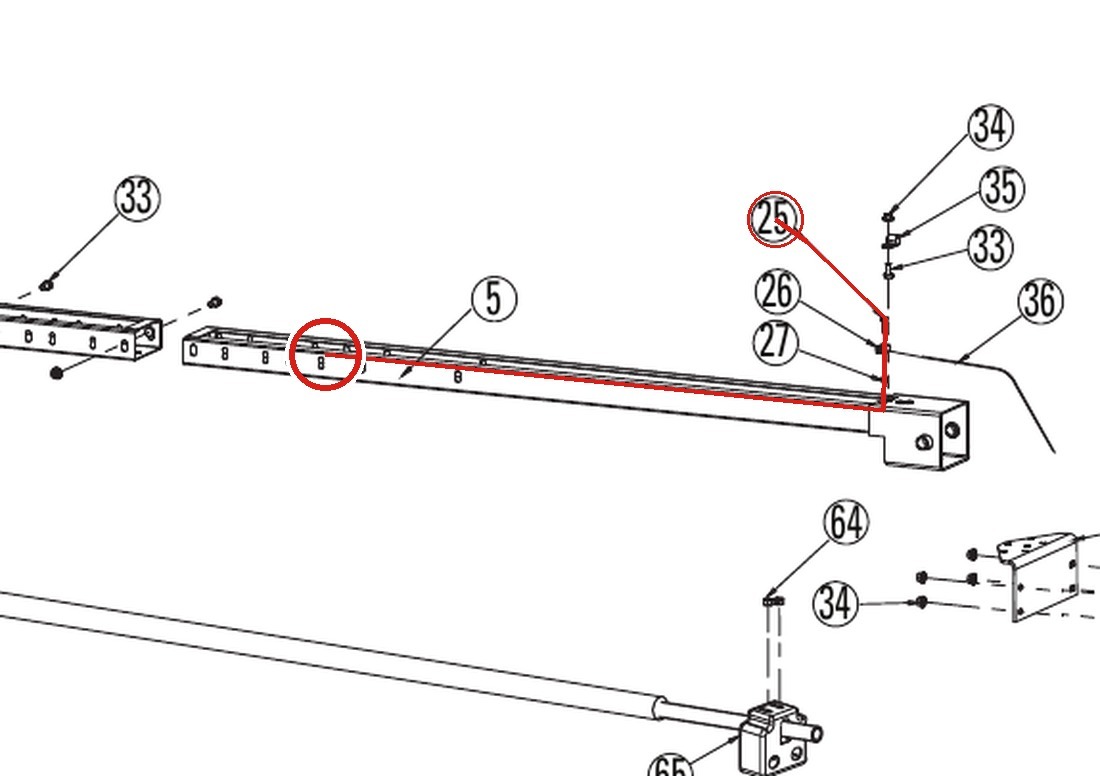

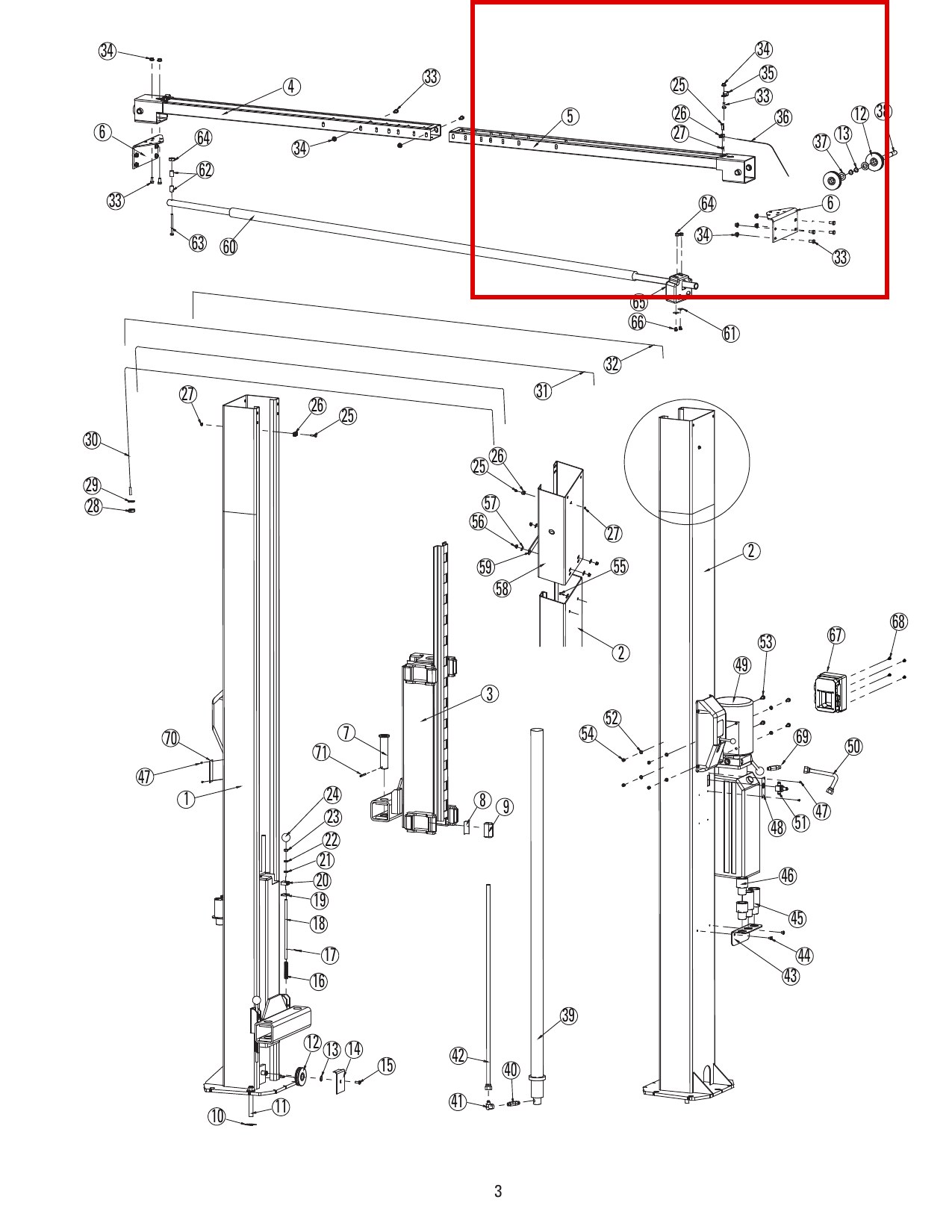

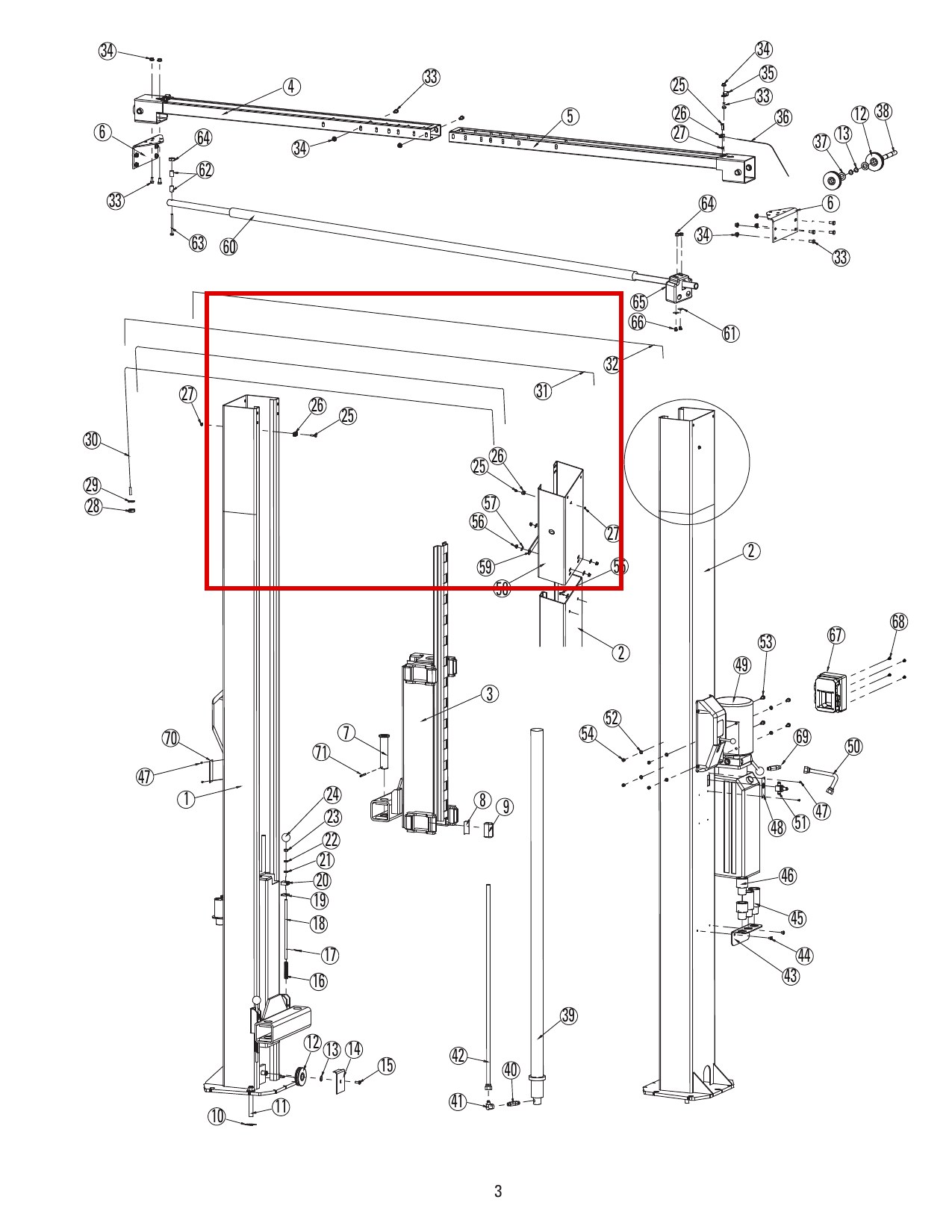

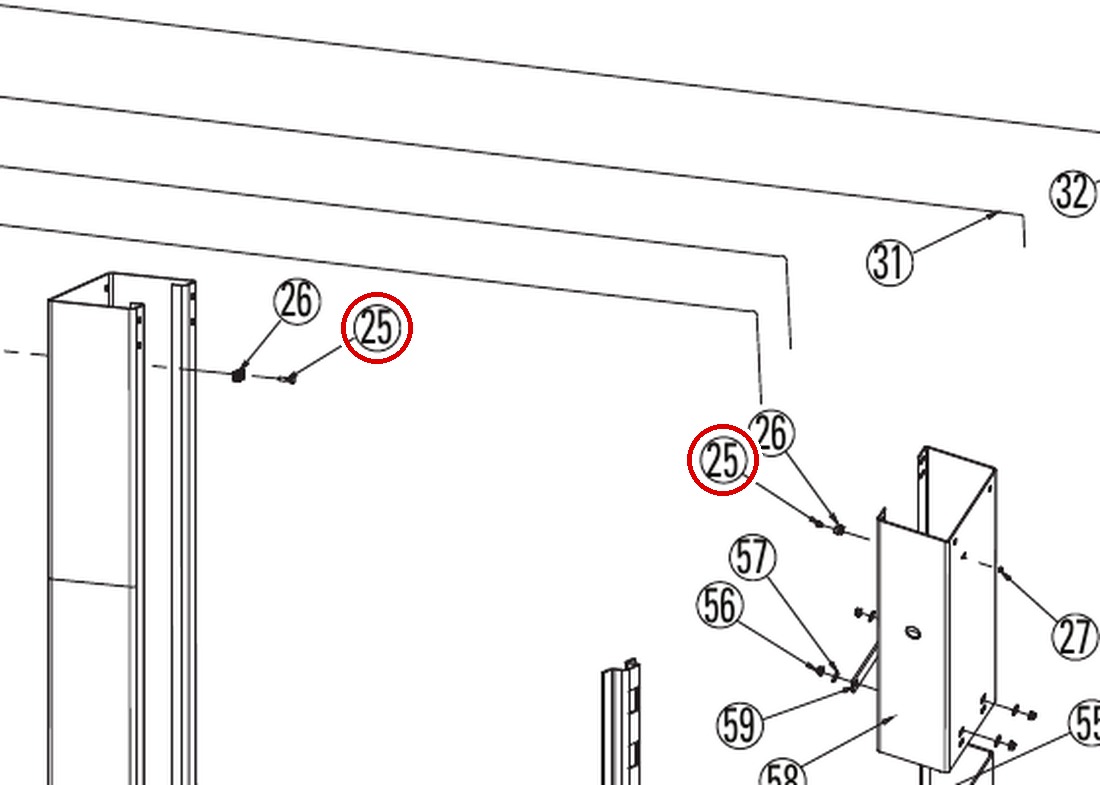

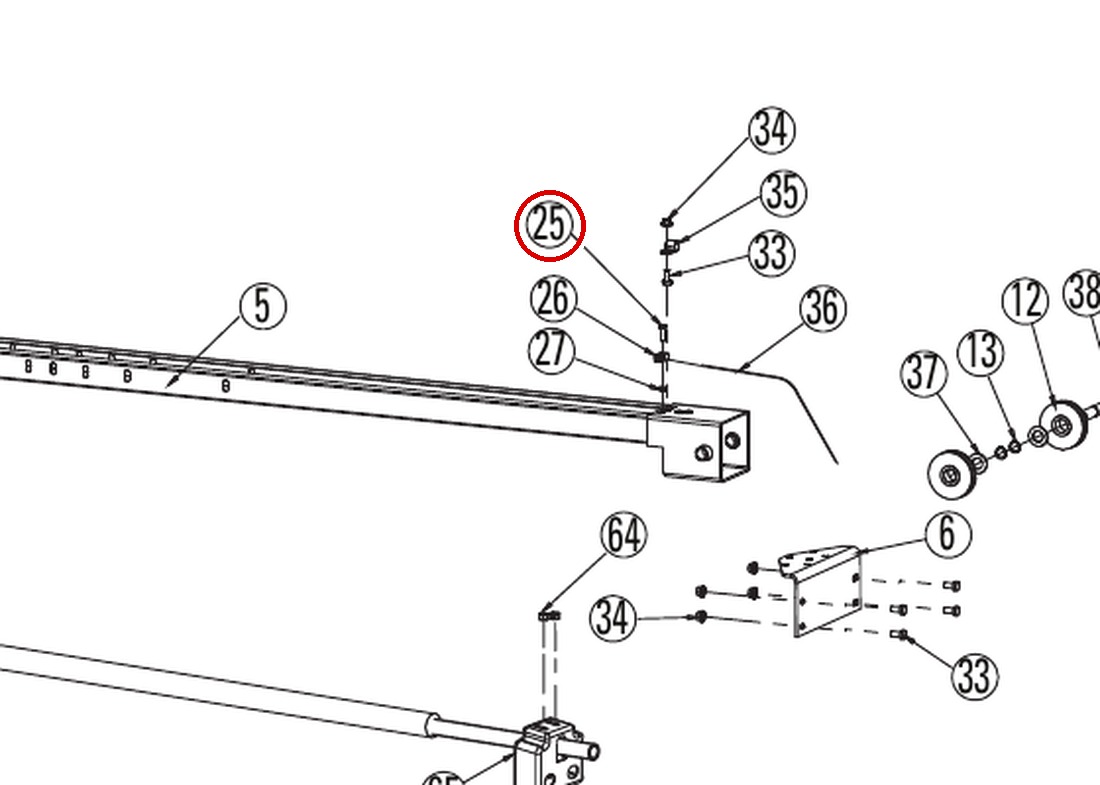

In the drawing images above this is part number 25 in the DL9 parts drawing and part number 33 in the DP10-Parts new style w lock covers drawing and part number 33 in the I10N000M drawing.

Fits the following lift models — part number 40108 appears in the parts breakdown of each of these lifts: Rotary Lift DL9, DP10 (new style with lock covers), I10N000M, I12 Pro, RJ20 Rolling Jack, TL07; F12 / I12.

The Rotary Lift 40108 is a 1/4″-20NC x 1″ long hex head cap screw (HHCS), Grade 5, plated, from Rotary’s two-post parts family.

Per the parts breakdowns it fits the DL9 (Drawing 1, Main Lift Assembly, page 3), DP10 new style with lock covers (Main Lift Assembly, 2-post 12,000 lbs.), and I10N000M, including use in the control panel assembly and control panel cover assembly.

OEM-spec replacement bolt; an alternate-source equivalent to the same Grade 5 specification may be supplied. Match against your lift’s parts drawing callout before ordering.

Fits these lifts:

• Direct Lift — DL9 (9,000 lb two-post)
• Hanmecson (VSG) — DL9
• Forward Lift — DP10 (new style with lock covers); I10 (I10N000M); I12PRO (12,000 lb two-post); F12 / I12 (12,000 lb two-post); TLO7 (300 series two-post)
• Rotary Lift — interchange P/N 40108
