Description
Eagle 4-Post Lift Chain Roller Bearing Kit for Eagle FP-12 FP15S-14 FP15L-14 FP15S-22 FP15L-22
This sealed roller bearing assembly replaces the cross-rail chain rollers in the crossbeam and overhead beam of Eagle 4-post chain-drive automotive lifts. When these rollers wear out, you may notice the lift hopping or jerking during raising and lowering, or see accelerated chain and pin wear. Replace worn rollers promptly to prevent further damage. On 12K and 15K lb lifts, there are four rollers per corner cross-rail and up to two additional rollers on the overhead beam – check all rollers when one has failed. This sealed bearing upgrade replaces older bronze bushing-style rollers and is maintenance-free.
Product Information
- Brand / Manufacturer: Eagle Lift Parts (aftermarket)
- Store SKU: roll 2.75 -.75-2
- Component: Cross-Rail Chain Roller Bearing Assembly
- Outside Diameter: 2.75 inches
- Inside Diameter / Pin Hole: 3/4 inch
- Groove Width: 1.5 inches (where chain rides)
- Bearing Type: Sealed roller bearings (maintenance-free)

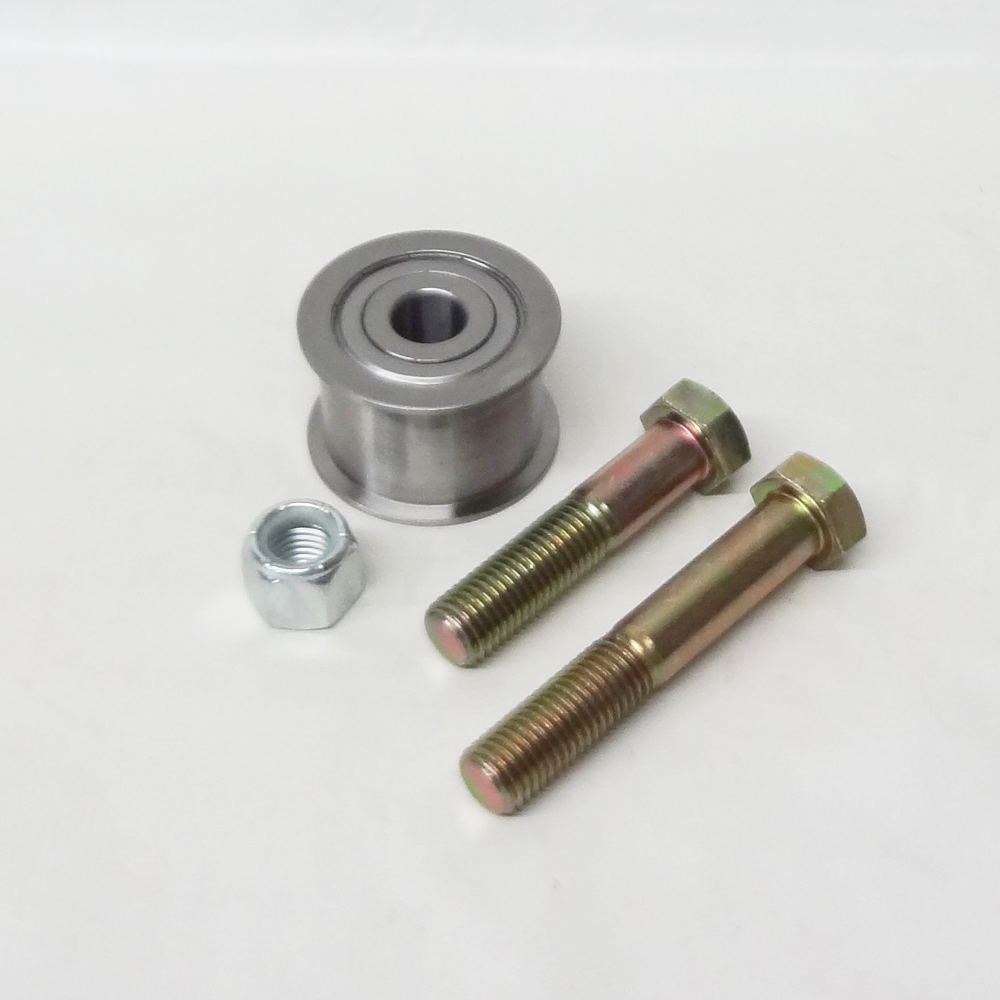

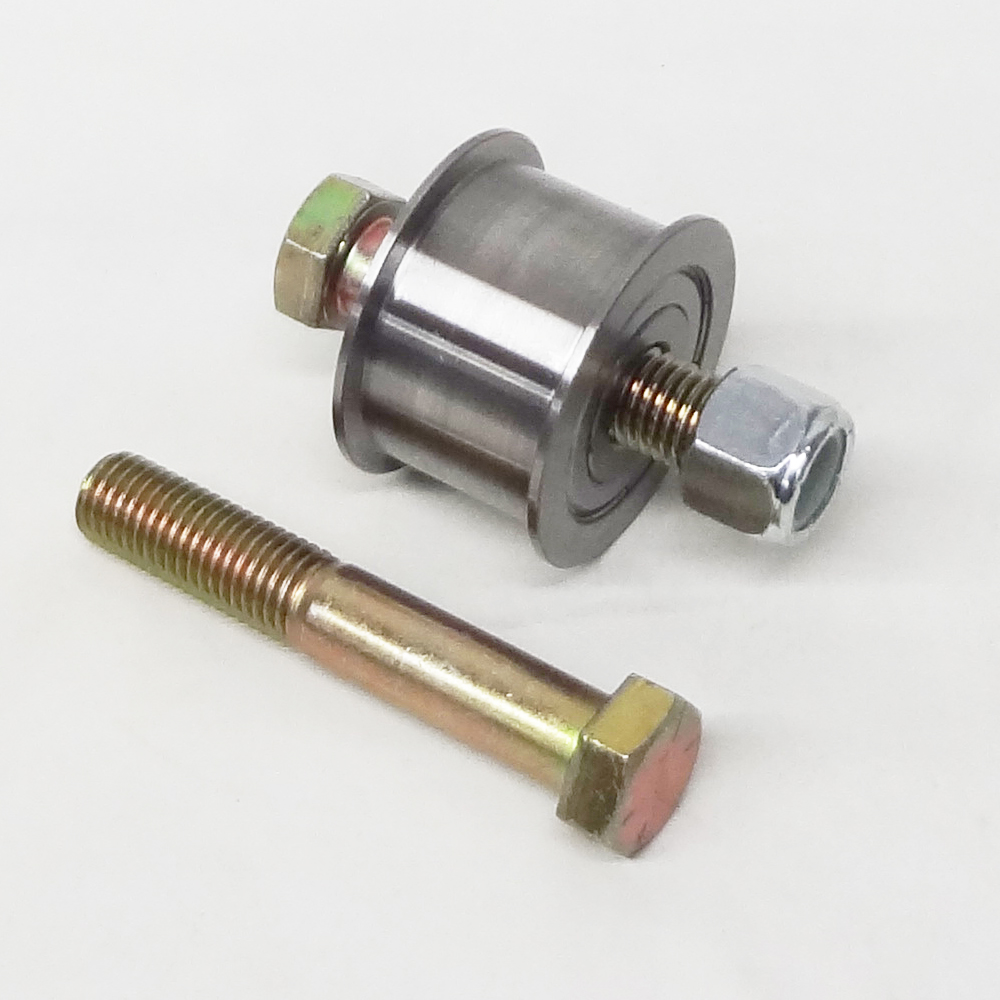

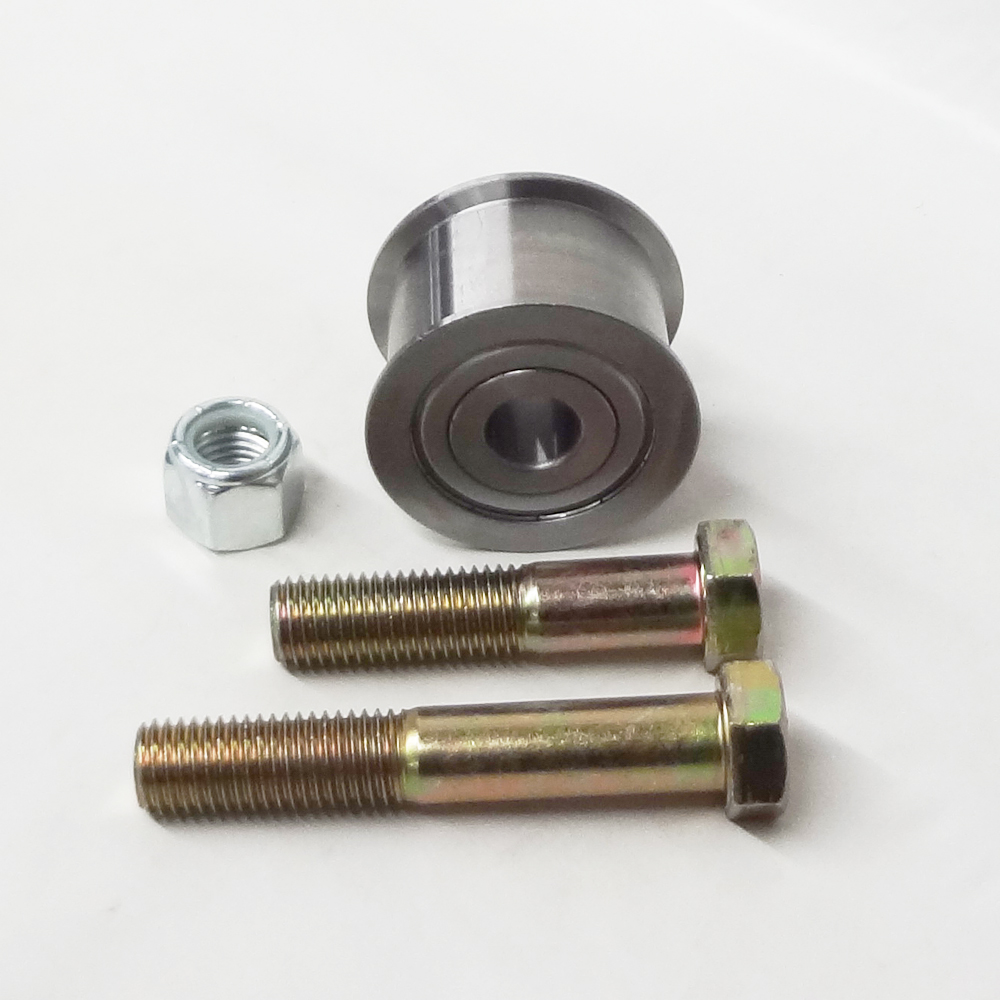

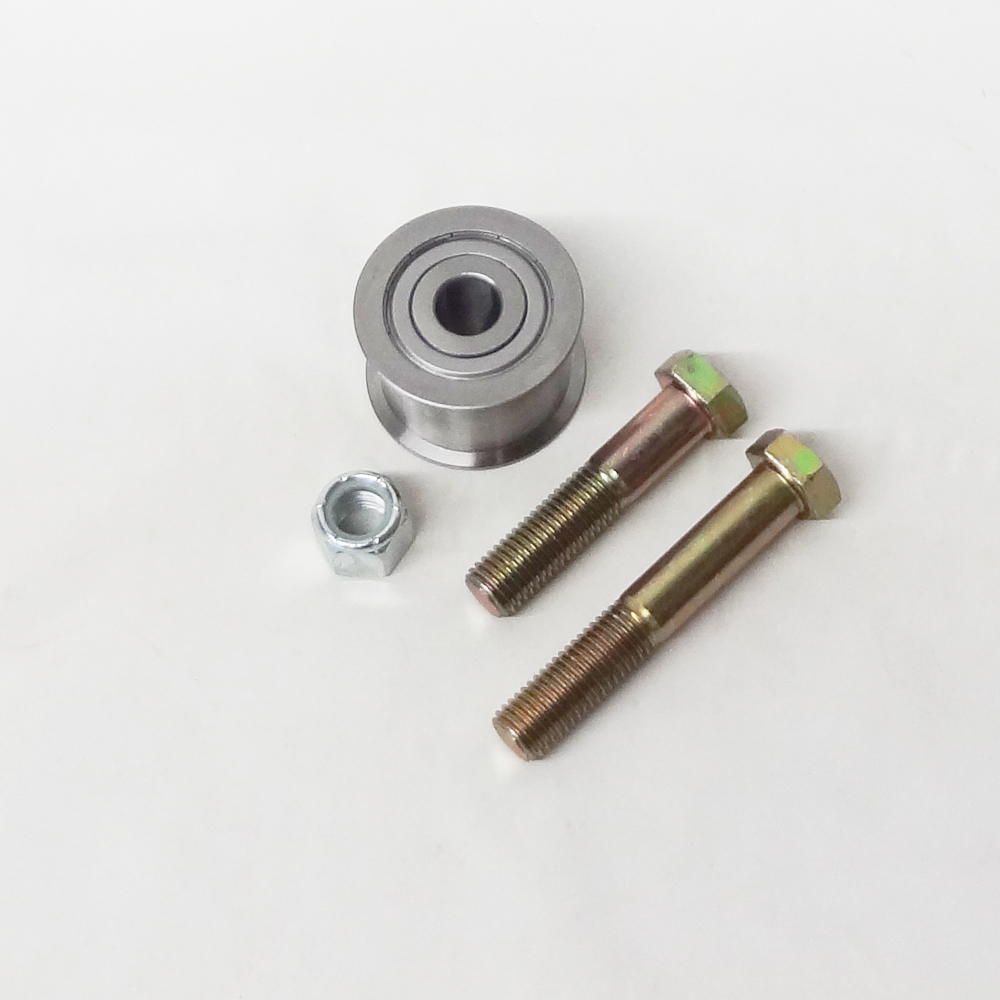

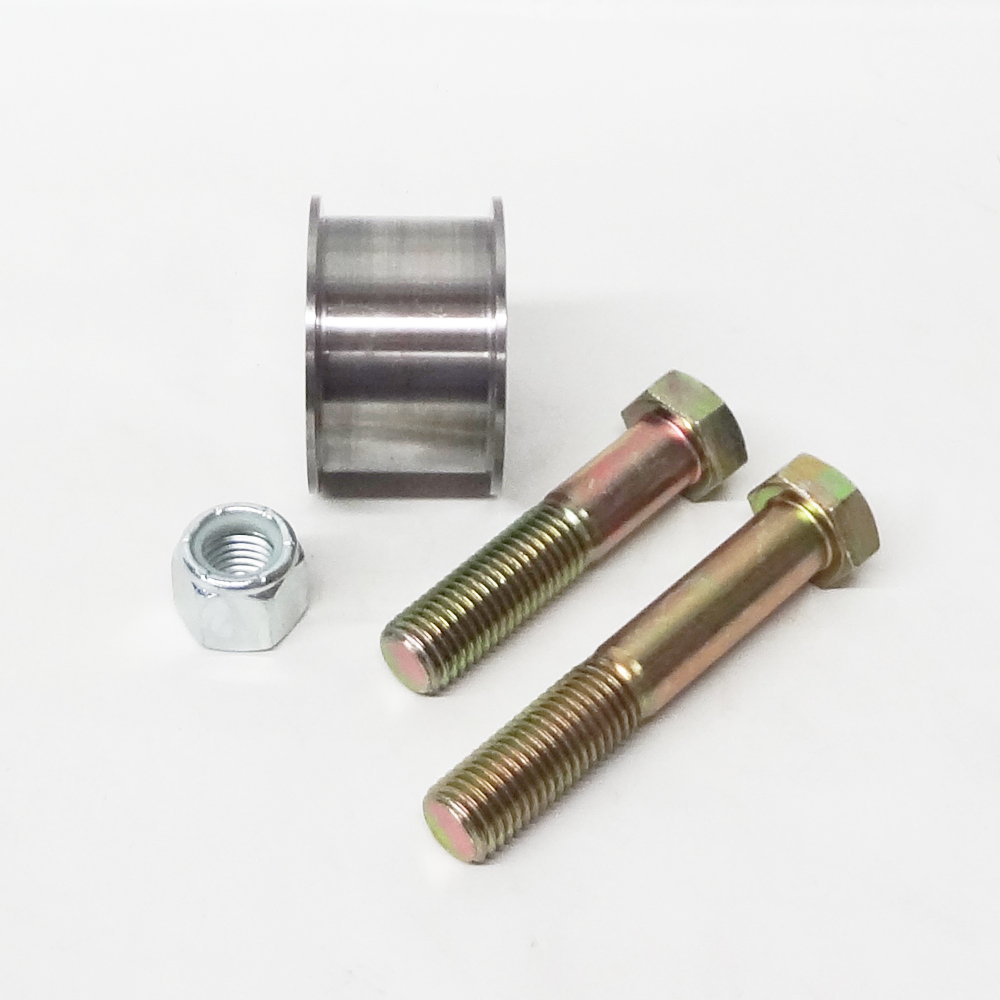

- Kit Contents: 1 roller bearing, 1 replacement bolt, 1 lock nut
- Listed Application: Eagle FP-12, FP15S-14, FP15L-14, FP15L-22, FP15S-22 4-post lifts
Fitment & Ordering Notes
Measure your existing roller (OD, ID, and groove width) before ordering to confirm fit. This roller may also fit many other 4-post chain-drive lifts with the same dimensions. Verify measurements if unsure. Call 866-902-6060 with questions.
