Direct Lift DP8-2009 Latch Shaft for 7K / 8K / PP8+ Four-Post Lifts

Description

Direct Lift DP8-2009 Latch Shaft for 7K / 8K / PP8+ Four-Post Lifts

The DP8-2009 Latch Shaft is listed for use on 7K / 8K / PP8+ Four-Post Lifts and is intended for service or repair of compatible Direct Lift equipment. Match the reference part number, component description, and listed application to your original lift part before ordering.

Product Information

• Brand / Equipment: Direct Lift
• Manufacturer / Reference Part Number: DP8-2009
• Store SKU: DIT2009
• Component: Latch Shaft
• Listed Application: 7K / 8K / PP8+ Four-Post Lifts

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

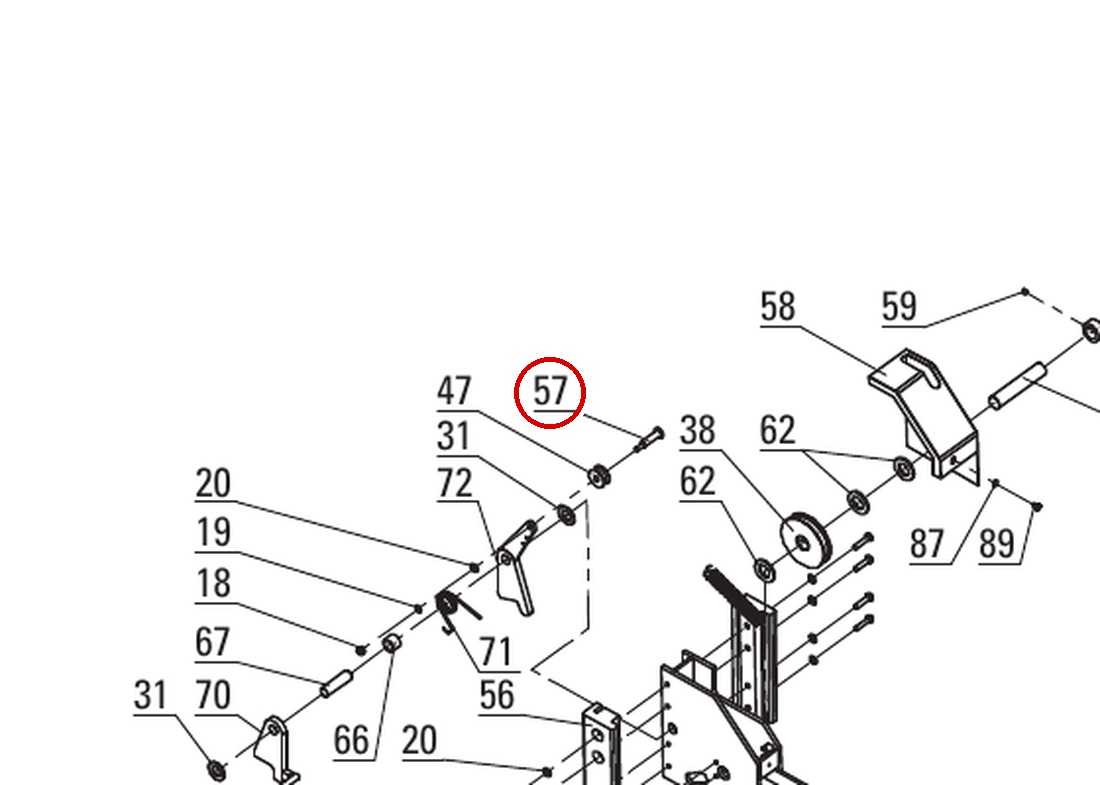

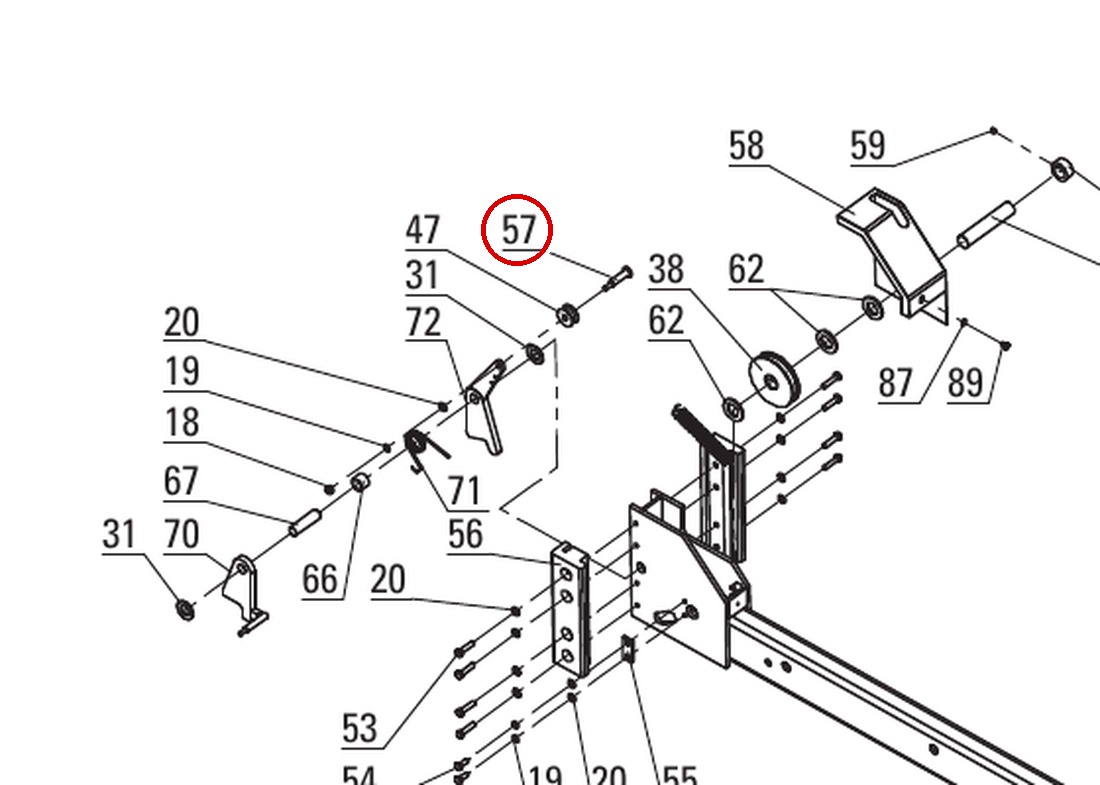

This is part number 57 in the drawing image above.

Fits the following lift models — part number DP8-2009 appears in the parts breakdown of each of these lifts: Direct Lift 7K Four-Post Parking, 8K Four-Post Parking, PP8+ 8K Four-Post, PP8+ Long 8K Four-Post, PP8S 8K Four-Post.

The latch shaft is the pivot the safety latch swings on as it engages and releases the lock ladder. A worn, bent, or seized latch shaft keeps the safety lock from seating cleanly, and should be replaced as part of any latch mechanism rebuild.

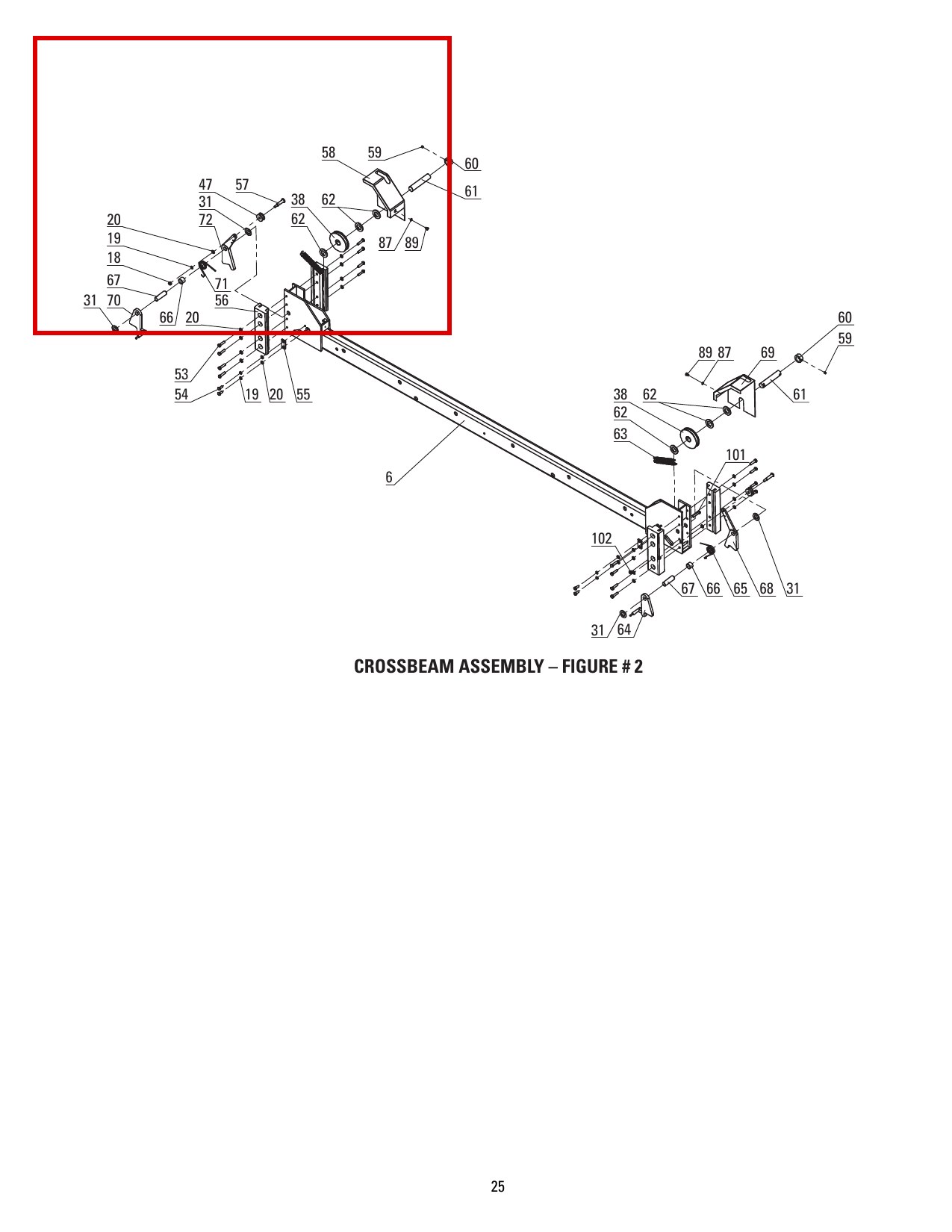

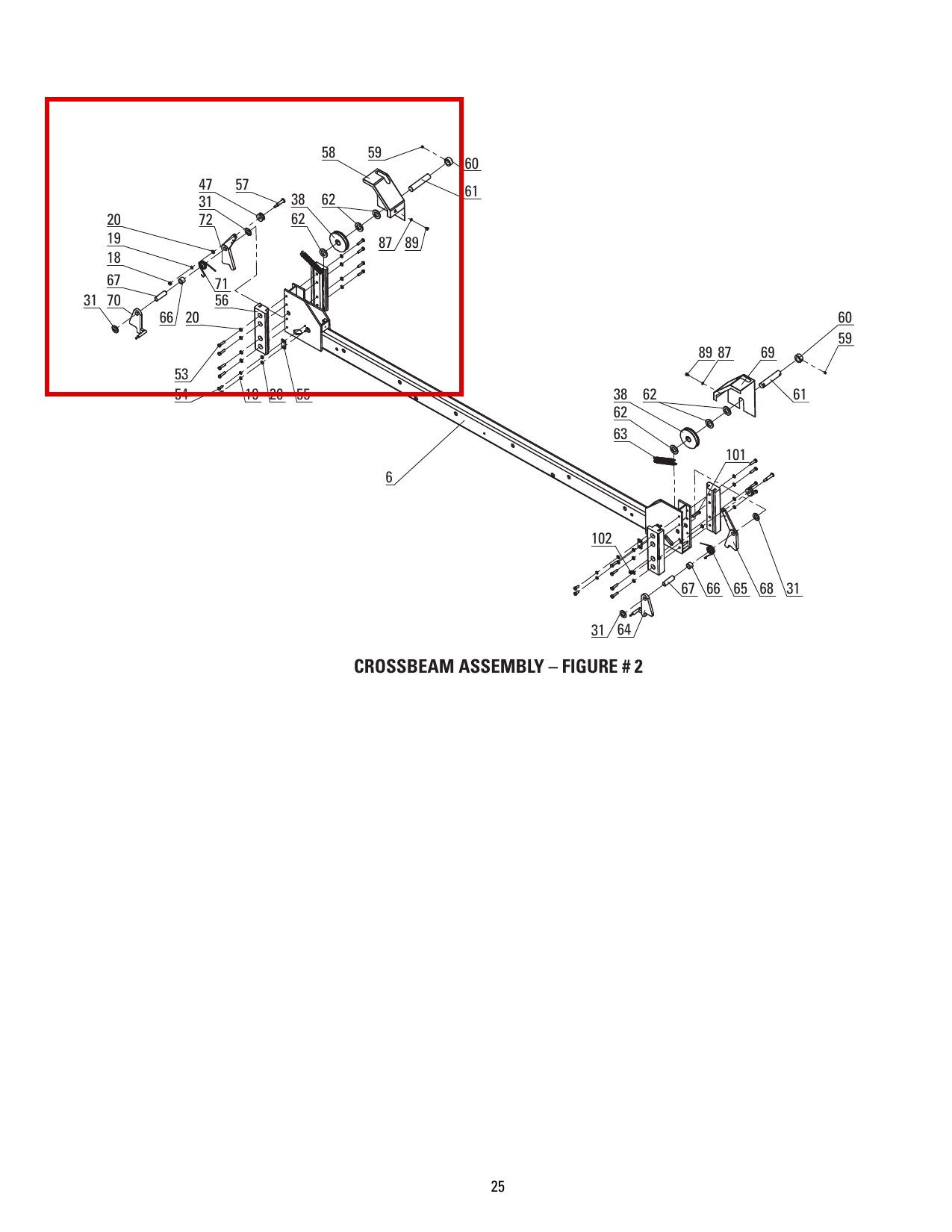

Genuine Direct Lift replacement part from the Light Duty-Direct line. Confirm against Figure #2 in your parts breakdown, and inspect the mating safety locks (DP8-2010 / DP8-2010DC) while the mechanism is apart.

Fits these lifts:

• Direct Lift — PP8+ Long (8,000 lb four-post); 7K four-post parking lift; DP8 (8,000 lb four-post parking); PP8+ (8,000 lb four-post)
