Direct Lift H4D-Y003 90 Degree Bulkhead Fitting for 7K, 8K & CR14 Lifts

Description

Direct Lift H4D-Y003 90 Degree Bulkhead Fitting for 7K, 8K & CR14 Lifts

The H4D-Y003 90 Degree Bulkhead Fitting is listed for use on 7K, 8K & CR14 Lifts and is intended for service or repair of compatible Direct Lift equipment. Match the reference part number, component description, and listed application to your original lift part before ordering.

Product Information

• Brand / Equipment: Direct Lift
• Manufacturer / Reference Part Number: H4D-Y003
• Store SKU: DITY003
• Component: 90 Degree Bulkhead Fitting
• Listed Application: 7K, 8K & CR14 Lifts

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

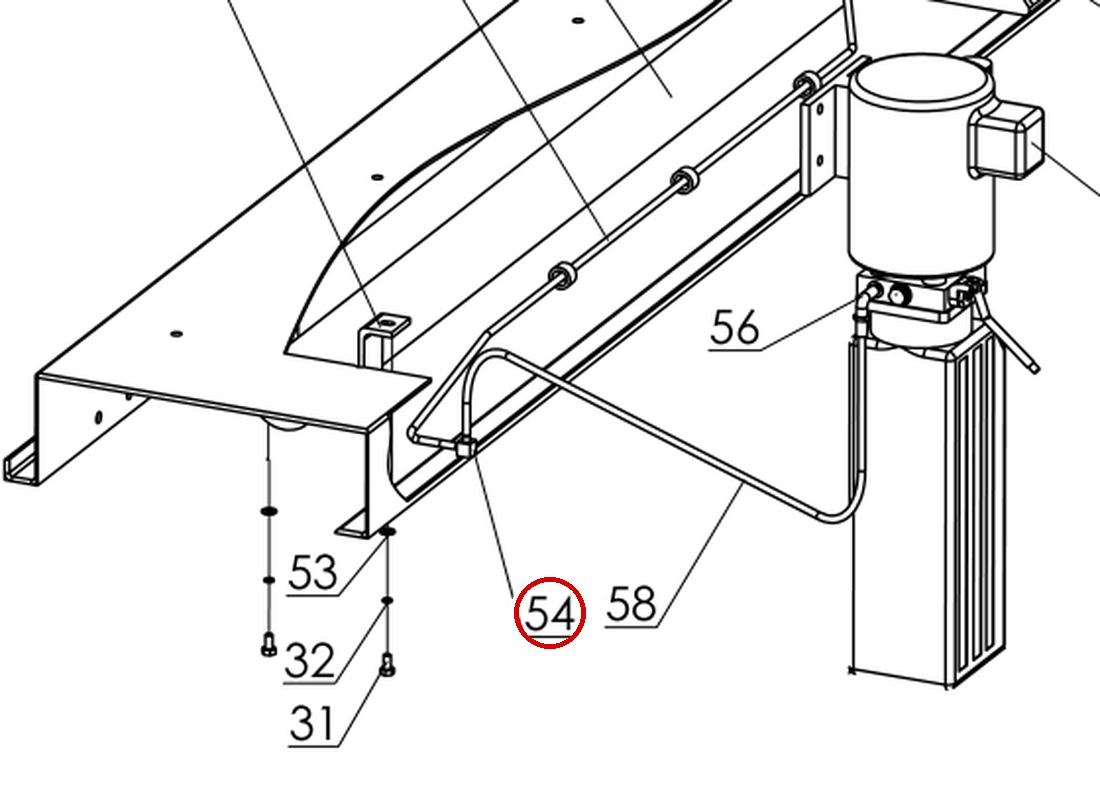

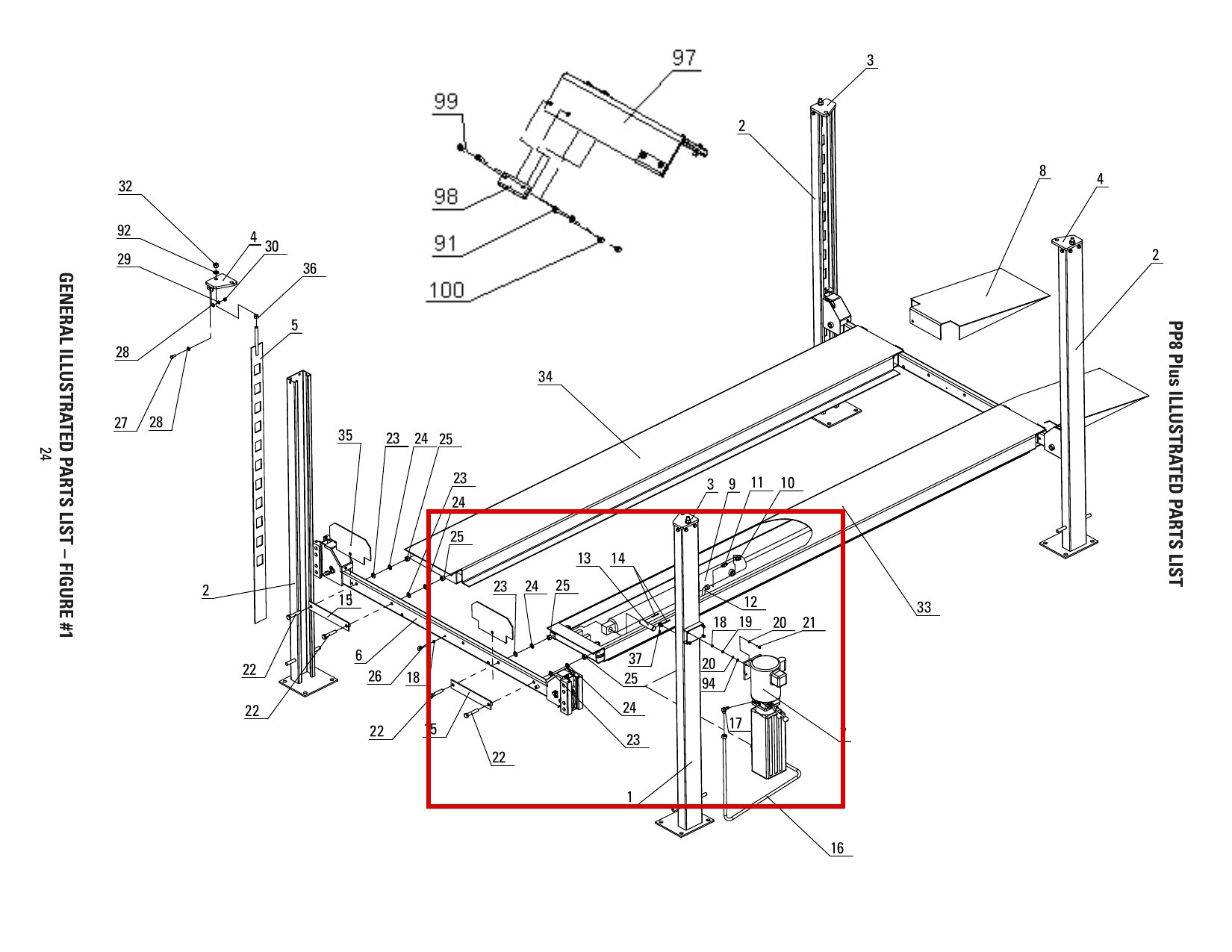

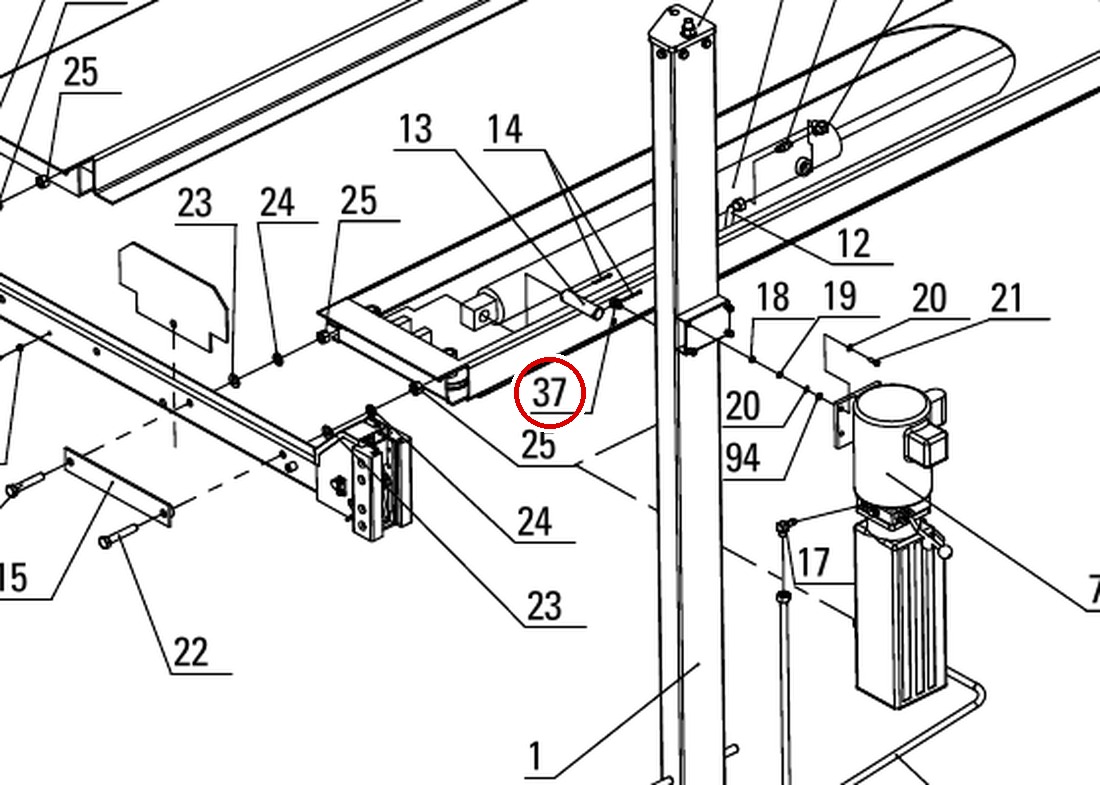

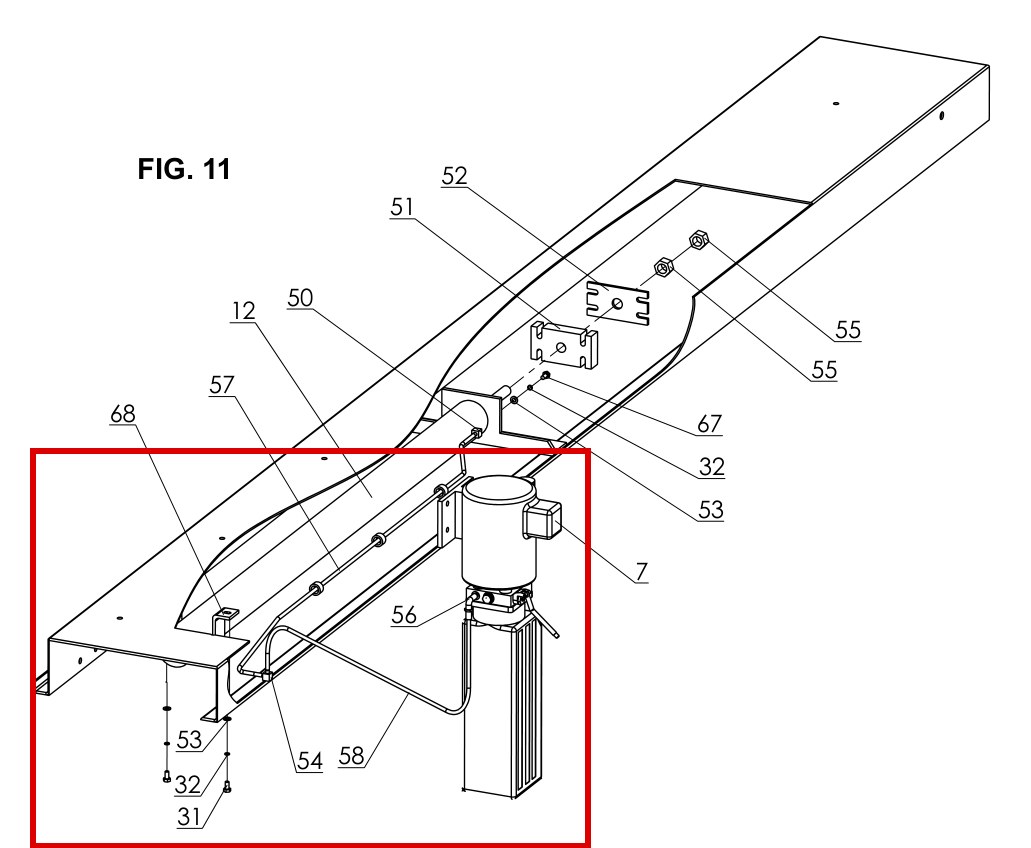

In the drawing images above this is part number 54 in the CR14114000 SER# 00N drawing and part number 37 in the PARTS BREAKDOWN 7K 4-POST PARKING drawing and part number 37 in the PARTS BREAKDOWN 8K 4-POST PARKING drawing.

Fits the following lift models — part number H4D-Y003 appears in the parts breakdown of each of these lifts: Direct Lift CR14 14000 (serial 00N), 7K Four-Post Parking, 8K Four-Post Parking, 9K Parking (wide version), DP-7 Four-Post Parking, PP8+ 8K Four-Post, PP8+ Long 8K Four-Post, PP8S 8K Four-Post, PP9+ 9K Four-Post, PRO-14F (newer, 3-bolt lock), PRO-14F 14K.

This 90 degree bulkhead elbow fitting routes hydraulic lines through the lift structure at a right angle, used in the main-side runway and hydraulics circuit. It is shown in the (Main Side) Runway & Hydraulics Components diagram (Figure #3) and the power unit / cross beam hydraulics drawing (Drawing 3) of the parts breakdowns.

OEM replacement hydraulic fitting. Replace fittings that leak or have damaged threads, and verify against your lift’s hydraulic diagram before ordering.

Fits these lifts:

• Direct Lift — PP8+ Long (8,000 lb four-post); 7K four-post parking lift; DP8 (8,000 lb four-post parking); PP8+ (8,000 lb four-post)
• Forward Lift — CR14 (CR14114000, serial 00N)
