Direct Lift NH4D-1011 Safety Latch Spring - 7K 4-Post Parking & Forward Lift Alignment Racks

Description

Direct Lift NH4D-1011 Safety Latch Spring – 7K 4-Post Parking & Forward Lift Alignment Racks

Replace missing, worn, or damaged lift hardware with the NH4D-1011 Safety Latch Spring – 7K 4-Post Parking & Forward Lift Alignment Racks, listed for use on compatible equipment. This hardware is used when servicing the specified Direct Lift assembly. Match the part number, size or description, and listed application before ordering.

Product Information

• Brand / Equipment: Direct Lift
• Manufacturer / Reference Part Number: NH4D-1011
• Store SKU: DIT10111
• Component: Safety Latch Spring – 7K 4-Post Parking & Forward Lift Alignment Racks

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

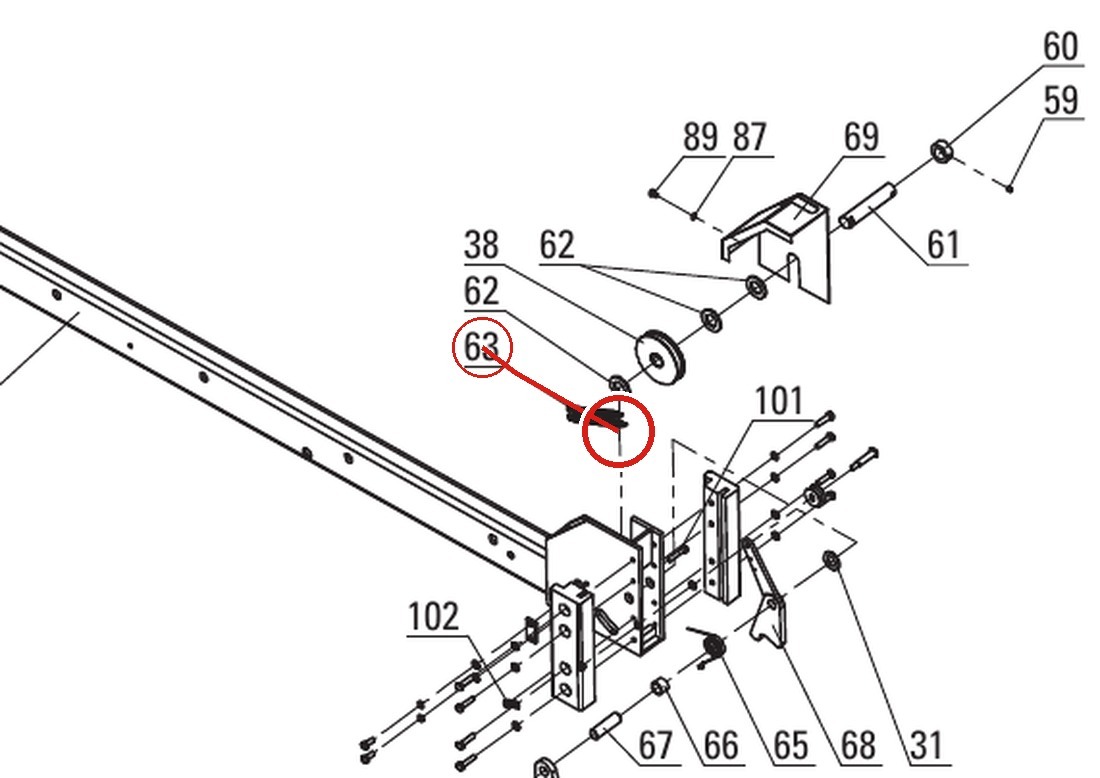

In the drawing images above this is part number 10 in the Newer bolt on alignment rack parts drawing and part number 10 and 3 in the Older Forward Lift Alignment Parts drawing and part number 63 in the PARTS BREAKDOWN 7K 4-POST PARKING drawing.

Fits the following lift models — part number NH4D-1011 appears in the parts breakdown of each of these lifts: Rotary Lift Alignment Rack (newer bolt-on), Alignment Rack (older); Direct Lift 7K Four-Post Parking, 8K Four-Post Parking, 9K Parking (wide version), PP8+ 8K Four-Post, PP8+ Long 8K Four-Post, PP8S 8K Four-Post, PP9+ 9K Four-Post.

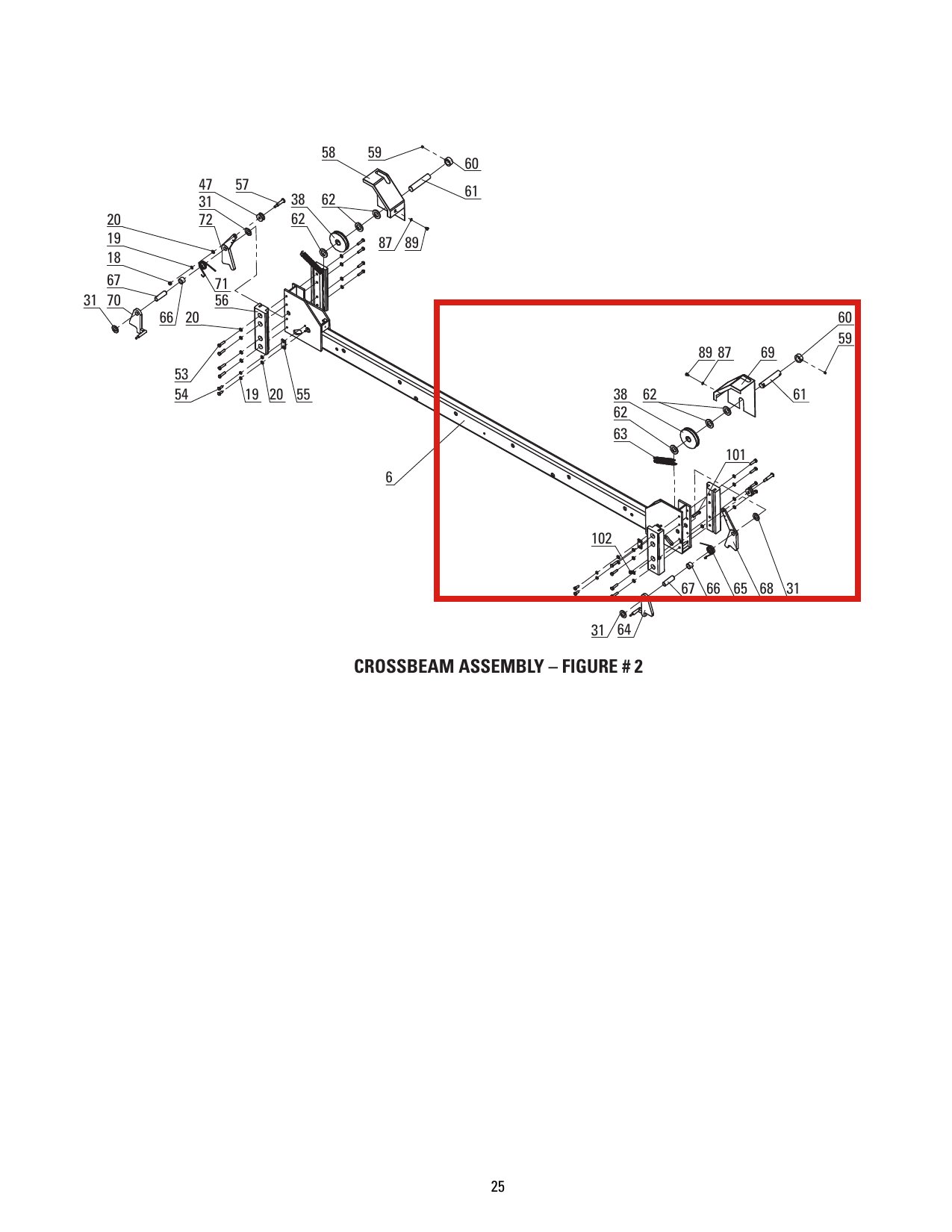

The Direct Lift NH4D-1011 is a Safety Latch Spring shown on the Direct Lift 7K 4-Post Parking lift crossbeam / safety latch assembly (Figure 1) as well as newer bolt-on alignment rack and older Forward Lift alignment parts breakdowns, including the Rear Steer S110413Y breakdown where it is used in quantity 6.

The spring keeps the safety latch loaded so it engages the lock positions positively and returns after release. Weak or broken latch springs are a leading cause of locks that fail to engage, and on alignment racks they are often replaced as a set given the multi-spring quantity called out in the breakdown.

Direct-fit OEM replacement compatible across the listed Direct Lift and Forward Lift breakdowns. Verify your figure and item number before ordering.

Fits these lifts:

• Direct Lift — PP8+ Long (8,000 lb four-post); 7K four-post parking lift; DP8 (8,000 lb four-post parking); PP8+ (8,000 lb four-post)
• Forward Lift — bolt-on alignment rack (newer, square ball retainers)
