Direct Lift PP7-9802-2 90 Degree Pipe Fitting - PP8+, PP8+ Long & PP8S 8K 4-Post Lifts

Description

Direct Lift PP7-9802-2 90 Degree Pipe Fitting – PP8+, PP8+ Long & PP8S 8K 4-Post Lifts

The PP7-9802-2 90 Degree Pipe Fitting – PP8+, PP8+ Long & PP8S 8K 4-Post Lifts is listed for use on compatible equipment and is intended for service or repair of compatible Direct Lift equipment. Match the reference part number, component description, and listed application to your original lift part before ordering.

Product Information

• Brand / Equipment: Direct Lift
• Manufacturer / Reference Part Number: PP7-9802-2
• Store SKU: DIT8022
• Component: 90 Degree Pipe Fitting – PP8+, PP8+ Long & PP8S 8K 4-Post Lifts

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

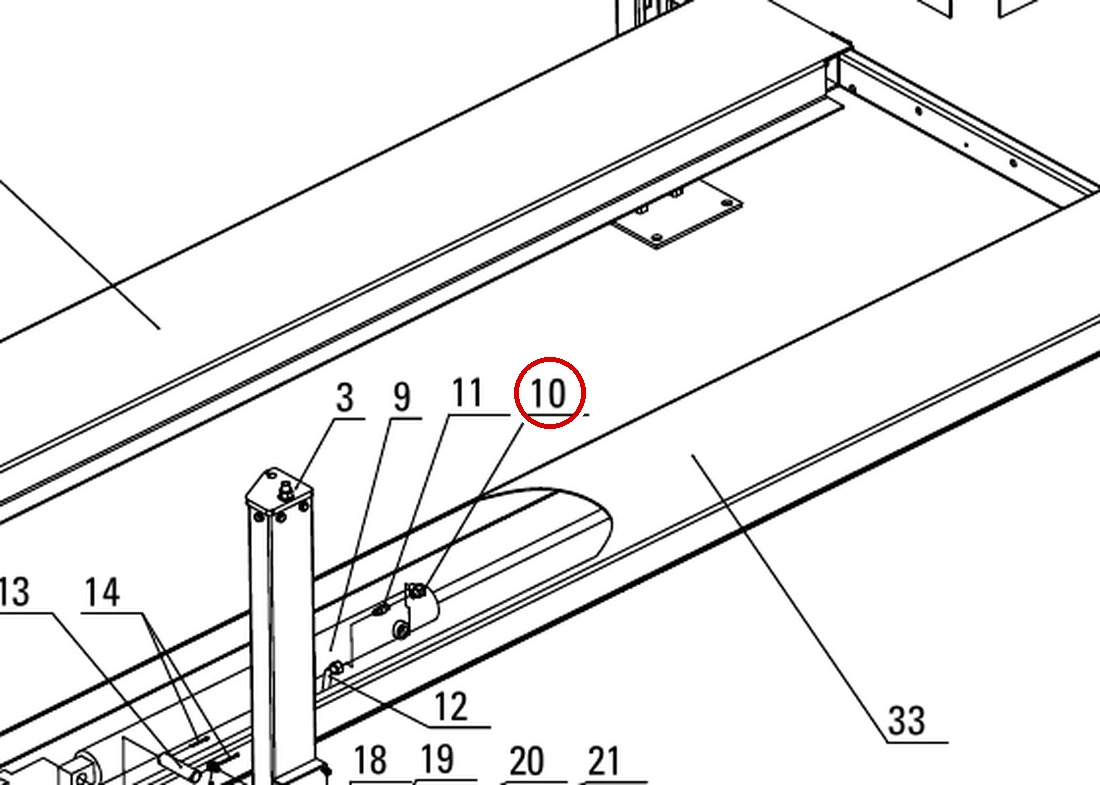

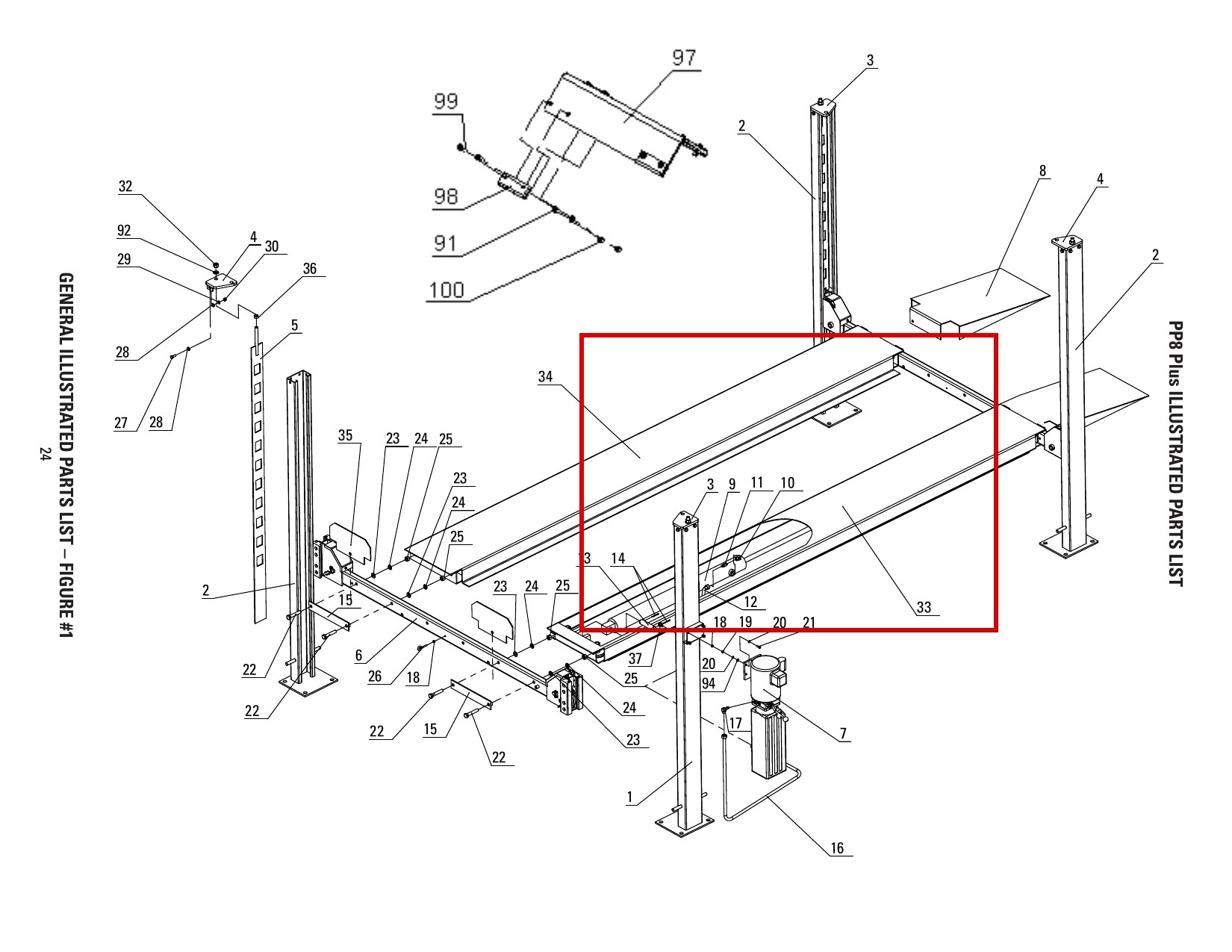

In the drawing images above this is part number 10 in the PARTS BREAKDOWN PP8+ 8K 4-POST drawing and part number 10 in the PARTS BREAKDOWN PP8+ LONG 8K 4-POS drawing and part number 10 in the PARTS BREAKDOWN PP8S 8K 4-POST drawing.

Fits the following lift models — part number PP7-9802-2 appears in the parts breakdown of each of these lifts: Direct Lift PP8+ 8K Four-Post, PP8+ Long 8K Four-Post, PP8S 8K Four-Post, PP9+ 9K Four-Post.

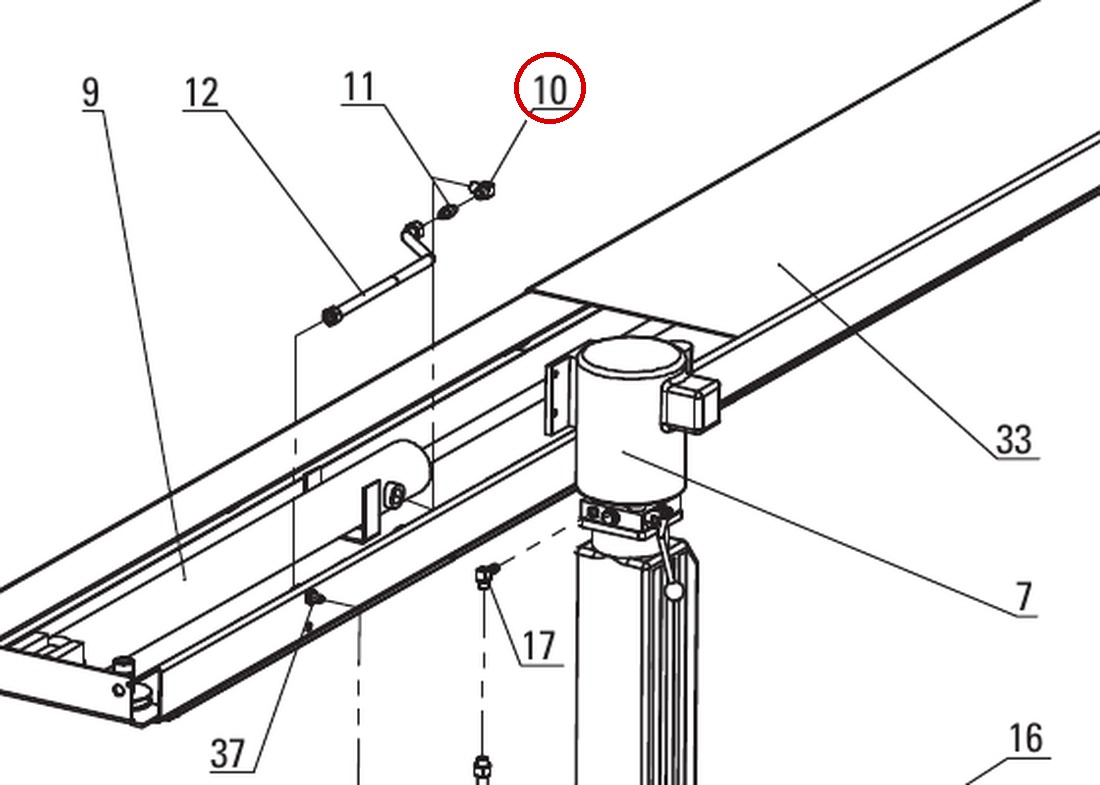

Pipe Fitting | Direct Lift PP8+, PP8+ Long, and PP8S 8K 4-Post. This fitting appears in the Main Side Runway & Hydraulics Components (Figure #3), General Illustrated Parts List (Figure #1), and Hydraulic & Cylinder Components (Figure #6) diagrams.

This 90 degree elbow fitting routes hydraulic lines around tight corners between the power unit, runway plumbing, and cylinder. Replace fittings that leak, are corroded, or have damaged threads to keep the hydraulic circuit sealed.

This is a direct OEM-style replacement compatible across the PP8+, PP8+ Long, and PP8S 8K 4-post lifts. Confirm against your parts breakdown before ordering.

Fits these lifts:

• Direct Lift — PP8+ Long (8,000 lb four-post); PP8+ (8,000 lb four-post)
