DX77 Dual Scissor Lift

Drawing Number

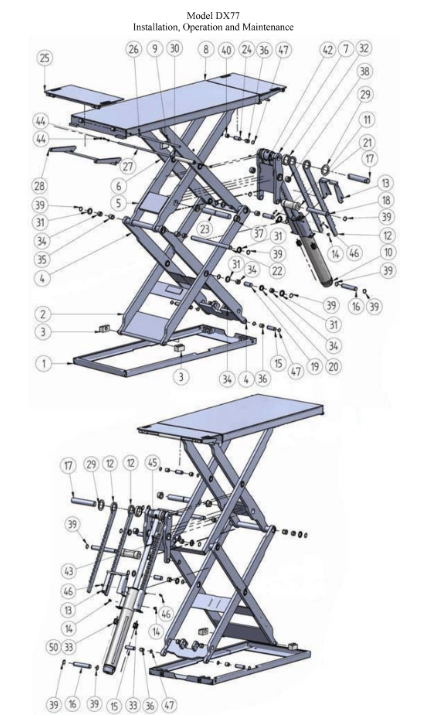

DX77 Dual Scissor Lift

Parts Description

47 Available Parts

1

Unnamed part

Unnamed part

—

Unavailable online – please call for availability.

2

Lower Scissor Link Weld, Slide

Lower Scissor Link Weld, Slide

$2,817.90

3

Lower Slide Block

Lower Slide Block

$129.00

4

Lower Scissor Link Weld, Pivot

Lower Scissor Link Weld, Pivot

$2,960.13

5

Unnamed part

Unnamed part

—

Unavailable online – please call for availability.

6

Upper Scissor Link Weld, Slide

Upper Scissor Link Weld, Slide

$3,127.34

7

Cylinder Lever

Cylinder Lever

$1,393.15

8

Unnamed part

Unnamed part

—

Unavailable online – please call for availability.

9

Unnamed part

Unnamed part

—

Unavailable online – please call for availability.

10

Cylinder, Slave

Cylinder, Slave

$5,145.97

11

Cylinder Lever Roller

Cylinder Lever Roller

$198.42

12

Lock Bar

Lock Bar

$353.87

13

Lock

Lock

$839.03

14

Lock Bolt

Lock Bolt

$134.20

15

Pin, Lower Link Pivot

Pin, Lower Link Pivot

$119.91

16

Pin, Cylinder Base

Pin, Cylinder Base

$109.12

17

Pin, Cylinder Pivot End

Pin, Cylinder Pivot End

$142.20

18

Pin, Lever Roller

Pin, Lever Roller

$92.58

19

Pin, Center Pivot

Pin, Center Pivot

$119.28

20

Unnamed part

Unnamed part

—

Unavailable online – please call for availability.

21

Pin, Upper & Lower Slide

Pin, Upper & Lower Slide

$98.28

22

Pin, Upper & Lower Pivot

Pin, Upper & Lower Pivot

$212.00

23

Pin, Lever Pivot

Pin, Lever Pivot

$339.32

24

Pin, Upper Scissor Pivot

Pin, Upper Scissor Pivot

$79.36

25

Unnamed part

Unnamed part

—

Unavailable online – please call for availability.

26

Pin, Ramp Pivot

Pin, Ramp Pivot

$149.13

27

Pin, Ramp Lock Pivot

Pin, Ramp Lock Pivot

$150.27

28

Ramp Lock Lever

Ramp Lock Lever

$464.40

29

Lever Roller Spacer

Lever Roller Spacer

$112.44

30

Ramp Roller

Ramp Roller

$248.04

31

Unnamed part

Unnamed part

—

Unavailable online – please call for availability.

32

Lever Roller

Lever Roller

$89.56

33

Lock Release Air Cylinder

Lock Release Air Cylinder

$669.07

34

Bushing, 30mm x 30mm Lg.

Bushing, 30mm x 30mm Lg.

$63.39

35

Bushing, 30mm x 20mm Lg.

Bushing, 30mm x 20mm Lg.

$27.11

36

Bushing, 25mm x 25mm Lg.

Bushing, 25mm x 25mm Lg.

$27.16

37

Bushing

Bushing

$71.18

38

Bushing

Bushing

$33.04

39

30mm Retaining Ring

30mm Retaining Ring

$3.94

40

Bushing, 25mm x 20mm Lg.

Bushing, 25mm x 20mm Lg.

$37.31

42

M10 x 20mm Lg. Bolt

M10 x 20mm Lg. Bolt

$30.06

43

Unnamed part

Unnamed part

—

Unavailable online – please call for availability.

44

14mm Retaining Ring

14mm Retaining Ring

$7.10

45

Grease Nipple

Grease Nipple

$7.67

46

Lock Spring

Lock Spring

$52.22

47

25 Retaining Ring

25 Retaining Ring

$2.63

50

M4 x 16mm Lg. Bolt

M4 x 16mm Lg. Bolt

$0.65
