Direct Lift PV10 10K Slave Side Latch Assembly

Drawing Number

Direct Lift PV10 10K Slave Side Latch Assembly

Parts Description

18 Available Parts

10

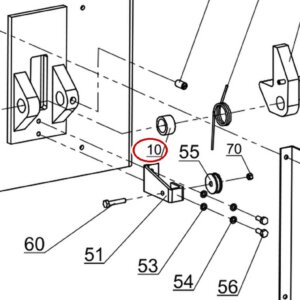

Sleeve

Sleeve

11

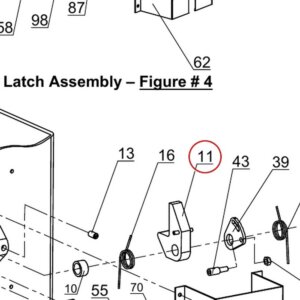

Safety Latch

Safety Latch

$48.79
12

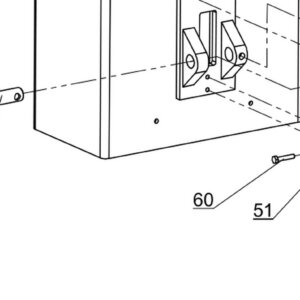

Shaft for Latch

Shaft for Latch

13

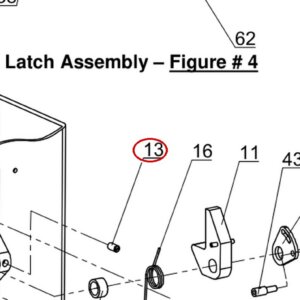

Screw M10*16

Screw M10*16

14

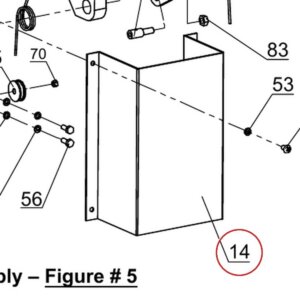

Safety Latch Cover B

Safety Latch Cover B

15
Screw M6×16

Screw M6×16

16
Spring

Spring

$16.61
39
Turn Board

Turn Board

40
Spring

Spring

41

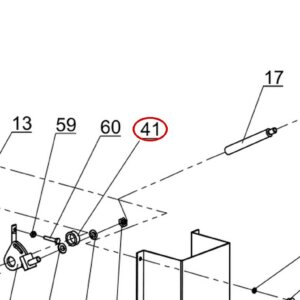

Sleeve

Sleeve

43
Turn Pin

Turn Pin

$15.57
51

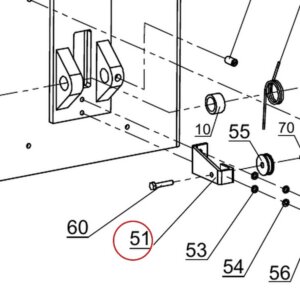

Cable Sheave Bracket B

Cable Sheave Bracket B

$15.57
53
Flat Washers Ø 6

Flat Washers Ø 6

$14.53
54
Lock Washers Ø 6

Lock Washers Ø 6

$14.53
56

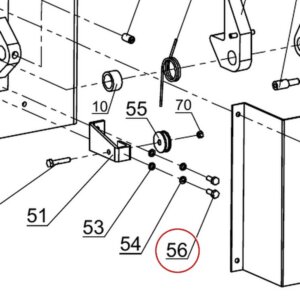

Bolt M6×16

Bolt M6×16

60
M6×35 Bolt

M6×35 Bolt

70
Nylon Lock Nut M6

Nylon Lock Nut M6

$14.53
83
Special Shoulder Bolt

Special Shoulder Bolt

$15.57

Factory parts breakdown for the Direct Lift PV10 (Pro 10 / PRO-V10) two column 10,000 lb lift: Slave Side Latch Assembly (Figure 5). Source: manufacturer manual, page 2.

Match the numbered callouts in the drawing to the parts list below to find the exact replacement part.
