Direct Lift H4P-R3100 Wheel Chock / Wheel Stop for Pro Park 8 Plus & CR14 4-Post Lifts

Description

Direct Lift H4P-R3100 Wheel Chock / Wheel Stop for Pro Park 8 Plus & CR14 4-Post Lifts

The H4P-R3100 Wheel Chock / Wheel Stop is listed for use on Pro Park 8 Plus & CR14 4-Post Lifts and is intended for service or repair of compatible Direct Lift equipment. Match the reference part number, component description, and listed application to your original lift part before ordering.

Product Information

• Brand / Equipment: Direct Lift
• Manufacturer / Reference Part Number: H4P-R3100
• Store SKU: DITR3100
• Component: Wheel Chock / Wheel Stop
• Listed Application: Pro Park 8 Plus & CR14 4-Post Lifts

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

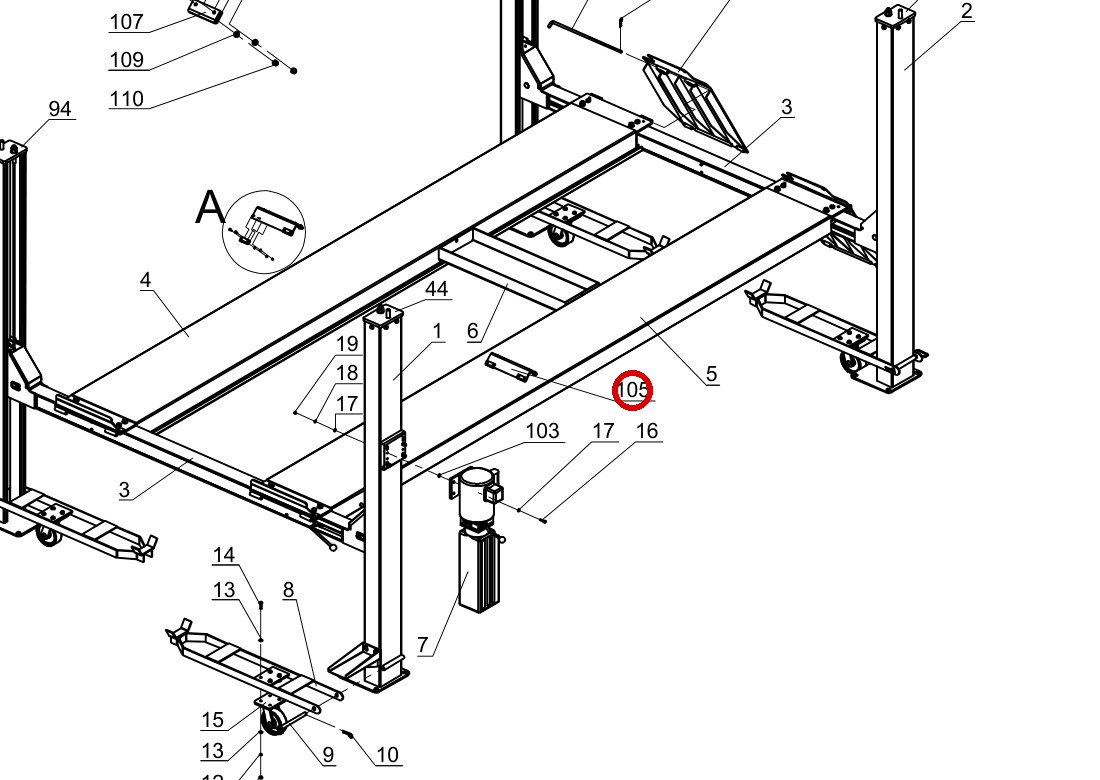

In the drawing images above this is part number 74 in the CR14114000 SER# 00N drawing and part number 13 in the CRA14_PARTS-BREAKDOWN drawing and part number 96 in the PARTS BREAKDOWN PP8+ 8K 4-POST drawing.

Fits the following lift models — part number H4P-R3100 appears in the parts breakdown of each of these lifts: Direct Lift CR14 14000 (serial 00N), PP8+ 8K Four-Post, PP8S 8K Four-Post, PP9+ 9K Four-Post, PRO-14F (newer, 3-bolt lock); Forward Lift CRA14, CR14 (newer).

The Direct Lift H4P-R3100 is the wheel chock, also listed as a wheel stop, used on the Pro Park 8 Plus 8,000 lb four-post lift and CR14-series lifts. It appears in the PP8+ 8K 4-post parts breakdown (Figure #6, General Illustrated Parts List A), FIG.9, and the CR14/CRA14 frame drawings.

The chock sits on the runway against the vehicle tire to keep the vehicle from rolling while parked on the lift, an essential safety item for parking and service use.

Note: the original H4P-R3100 has been obsoleted and replaced by H4P-R3100BK, which is the current OEM-equivalent replacement and fits the same lifts. Use with the matching angle iron (H4P-R3101) and rubber pad (H4P-R3102) where shown in the parts breakdown.
