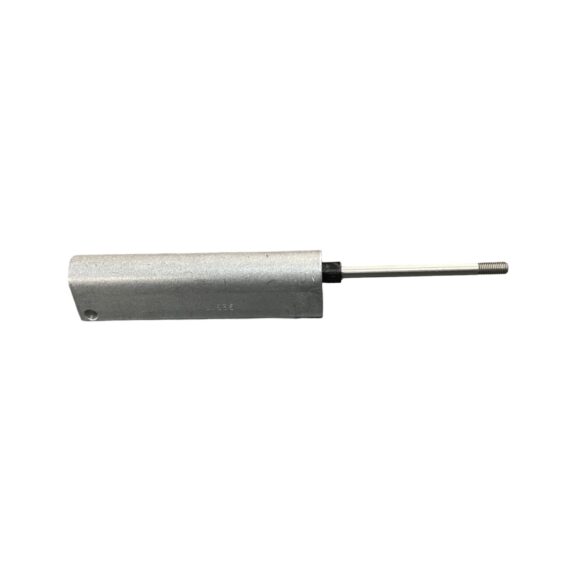

Rotary S130061 D-Shaped Single-Port Air Lock Cylinder for Newer 4 Post Lifts
This D-shaped air cylinder is for newer-style Rotary 4-post lifts. It mounts on the inside of the cross rail and has one threaded port on the flat side of the cylinder housing. When air pressure is applied, the spring-loaded shaft extends to pull the safety locks open. Rotary produced single-port and dual-port D-shaped cylinders – verify you need a single-port cylinder and that your model is listed below before ordering.
Product Information
- Brand / Equipment: Rotary Lift
- Manufacturer / Reference Part Number: S130061
- Store SKU: ROY0061
- Component: D-shaped air lock cylinder (single-port, lock pull actuator)
- Body Shape: D-shaped (newer style)
- Ports: 1 threaded port on the flat side of housing
- Action: Spring-loaded; shaft extends when air is applied
- Designation: 1 PORT AIR CYLINDER SMOARO123, VENIX#V149S
- Mounting Location: Inside of the cross rail
- Listed Application: Newer Rotary 4-post lifts – SM123, AR123, ARO123, SMO123, SM14, AR14, ARO14, SMO14
Fitment and Ordering Notes
Confirm your lift model is listed above. Depending on which corner of the lift the cylinder is located, the cylinder may be single-port or dual-port. Count the ports on your existing cylinder before ordering. For questions call 866-902-6060.
