HR8000 Hydraulic Cylinder

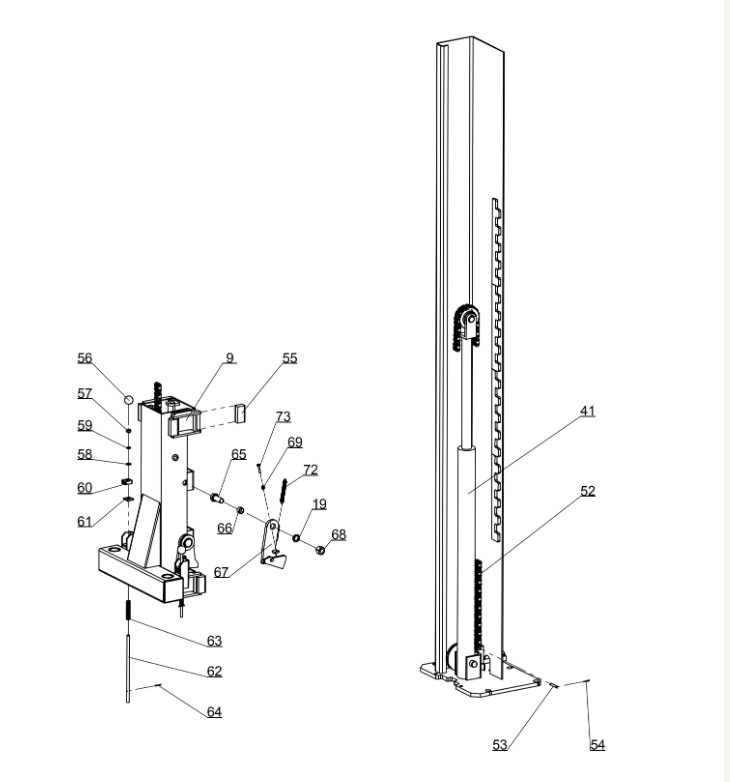

Drawing Number

HR8000 Hydraulic Cylinder

Parts Description

23 Available Parts

9

Carriage

Carriage

19

Ø20 Lock Washer

Ø20 Lock Washer

$14.53

41

Hydraulic Cylinder

Hydraulic Cylinder

$433.00

52

Leaf Chain

Leaf Chain

$362.26

53

Pin, Leaf Chain

Pin, Leaf Chain

$14.53

54

Ø2×20 Cotter Pin

Ø2×20 Cotter Pin

$14.53

55

Rubber Block

Rubber Block

$24.91

56

M10×35 Plastic Knob

M10×35 Plastic Knob

$18.00

57

M10 Nut

M10 Nut

$14.53

58

Ø10 Flat Washer

Ø10 Flat Washer

$6.23

59

Ø10 Lock Washer

Ø10 Lock Washer

$14.53

60

Gear Rack

Gear Rack

$24.91

61

Spacer

Spacer

$15.57

62

Pull Handle

Pull Handle

$14.53

63

Spring

Spring

$23.87

64

Ø3×26 Raw Pin

Ø3×26 Raw Pin

$14.53

65

M20×50 Bolt

M20×50 Bolt

$14.53

66

Bushing

Bushing

67

Safety Block Organ

Safety Block Organ

$48.79

68

M20 Nut

M20 Nut

$14.53

69

Spring

Spring

$15.57

72

Spring

Spring

$15.57

73

M6×35 Screw

M6×35 Screw

Factory parts breakdown for the Direct Lift HR8000 / OH8000 8,000 lb two post lift: .

Match the numbered callouts in the drawing to the parts list below to find the exact replacement part.
