Direct Lift PP8+ Long General Illustrated Parts List

Drawing Number

Direct Lift PP8+ Long General Illustrated Parts List diagram

Parts Description

41 Available Parts

1

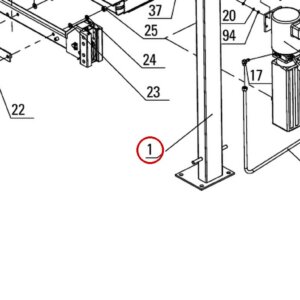

Column Weldment A

Column Weldment A

$390.29

2

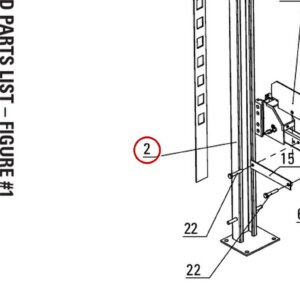

Column Weldment B

Column Weldment B

$362.26

3

Column Top Caps

Column Top Caps

$48.79

4

Column Top Caps

Column Top Caps

$48.79

5

Latchbar Weldment

Latchbar Weldment

$138.05

6

Crossbeam Weldment

Crossbeam Weldment

$592.70

8

Ramp Weldment

Ramp Weldment

$330.08

9

Hydraulic Cylinder

Hydraulic Cylinder

$1,186.43

10

Pipe Fitting

Pipe Fitting

$28.03

11

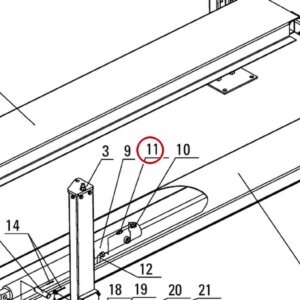

Throttle

Throttle

$26.99

12

Hydraulic Hose

Hydraulic Hose

$46.71

13

Hydraulic Cylinder Pin

Hydraulic Cylinder Pin

$22.84

14

Cotter Pin Ø 5x60

Cotter Pin Ø 5x60

$14.53

15

Link Frame

Link Frame

$24.91

16

Hydraulic Hose

Hydraulic Hose

$132.86

17

90 Degree Fitting

90 Degree Fitting

$23.87

18

Nut M8

Nut M8

$14.53

19

Lock Washer Ø 8

Lock Washer Ø 8

$14.53

20

Flat Washer Ø 8

Flat Washer Ø 8

$14.53

22

Hex Head Bolt M18x100

Hex Head Bolt M18x100

$29.06

23

Flat Washer Ø 18

Flat Washer Ø 18

$14.53

24

Lock Washer Ø 18

Lock Washer Ø 18

$14.53

25

Nut M18

Nut M18

$14.53

26

Bolts M8x50

Bolts M8x50

$15.57

27

Hex Head Bolt M12x30

Hex Head Bolt M12x30

$14.53

28

Flat Washer Ø 12

Flat Washer Ø 12

$14.53

29

Lock Washer Ø 12

Lock Washer Ø 12

$14.53

30

Nut M12

Nut M12

$14.53

32

Nut M20

Nut M20

$14.53

33

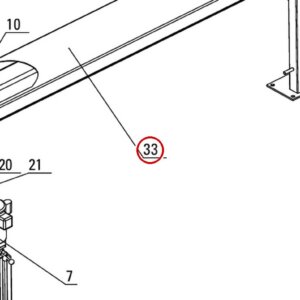

Runway Weldment, Driving slide (DP8L-3100 = PP8 Plus Long)

Runway Weldment, Driving slide (DP8L-3100 = PP8 Plus Long)

34

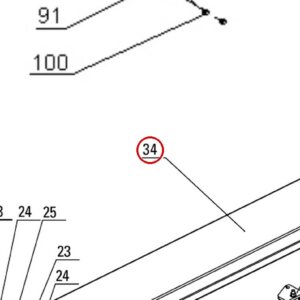

Runway Weldment, Slave Side (DP8L-3200 = PP8 Plus Long)

Runway Weldment, Slave Side (DP8L-3200 = PP8 Plus Long)

35

Car Stop Plates

Car Stop Plates

$42.56

36

Nut

Nut

$15.57

37

90 Degree Fitting

90 Degree Fitting

$33.22

91

Flat Washer Ø 5

Flat Washer Ø 5

$14.53

92

Flat Washer Ø 20

Flat Washer Ø 20

$14.53

94

Washer

Washer

$15.57

97

Angle Iron (wheel chock accessory)

Angle Iron (wheel chock accessory)

$39.44

98

Rubber (wheel chock accessory)

Rubber (wheel chock accessory)

$22.84

99

Discal Head Screw M5x16

Discal Head Screw M5x16

100

Nut M5

Nut M5

$14.53

Factory general illustrated parts list for the Direct Lift PP8+ Long 8,000 lb four-post lift. This master diagram covers columns, crossbeams, runways, approach ramps, cylinder, cables, sheaves, safety latches and hardware for the complete lift.

Match the numbered callouts in the drawing to the parts list below to find the exact replacement part for your PP8+ Long.
