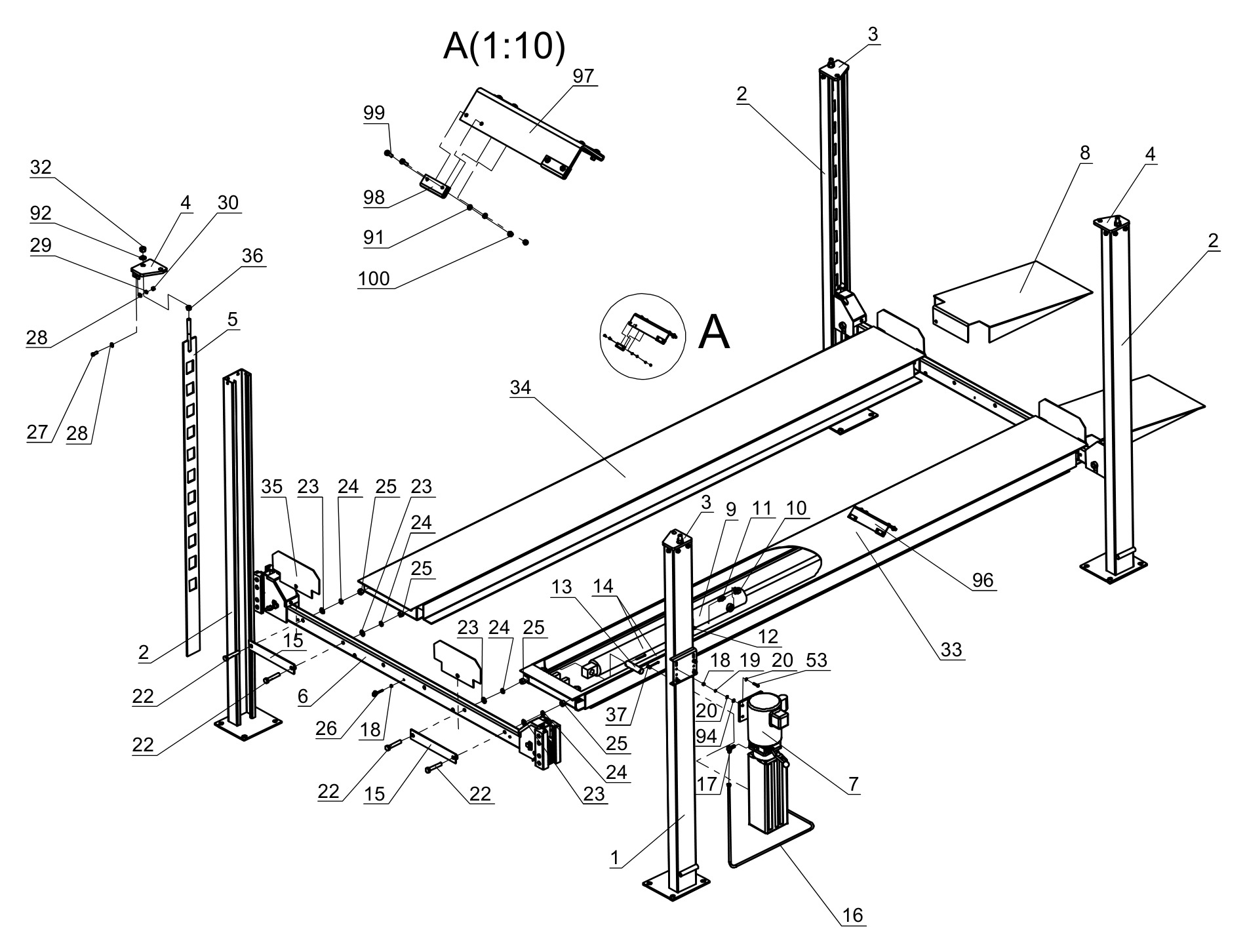

Direct Lift PP8+ General Illustrated Parts List

Drawing Number

Direct Lift PP8+ General Illustrated Parts List

Parts Description

43 Available Parts

1

Column Weldment A

Column Weldment A

$390.29

2

Column Weldment B

Column Weldment B

$362.26

3

Column Top Caps

Column Top Caps

$48.79

4

Column Top Caps

Column Top Caps

$48.79

5

Latchbar Weldment

Latchbar Weldment

$138.05

6

Crossbeam Weldment

Crossbeam Weldment

$592.70

8

Ramp Weldment

Ramp Weldment

$330.08

9

Hydraulic Cylinder

Hydraulic Cylinder

$1,186.43

10

Pipe Fitting

Pipe Fitting

$28.03

11

Throttle

Throttle

$26.99

12

Hydraulic Hose

Hydraulic Hose

$46.71

13

Hydraulic Cylinder Pin

Hydraulic Cylinder Pin

$22.84

14

Cotter Pin Ø 5x60

Cotter Pin Ø 5x60

$14.53

15

Link Frame

Link Frame

$24.91

16

Hydraulic Hose

Hydraulic Hose

$132.86

17

90 Degree Fitting

90 Degree Fitting

$23.87

18

Nut M8

Nut M8

$14.53

19

Lock Washer Ø 8

Lock Washer Ø 8

$14.53

20

Flat Washer Ø 8

Flat Washer Ø 8

$14.53

22

Hex Head Bolt M18 x 100

Hex Head Bolt M18 x 100

$29.06

23

Flat Washer Ø 18

Flat Washer Ø 18

$14.53

24

Lock Washer Ø 18

Lock Washer Ø 18

$14.53

25

Nut M18

Nut M18

$14.53

26

Bolts M8x50

Bolts M8x50

$15.57

27

Hex Head Bolt M12x30

Hex Head Bolt M12x30

$14.53

28

Flat Washer Ø 12

Flat Washer Ø 12

$14.53

29

Lock Washer Ø 12

Lock Washer Ø 12

$14.53

30

Nut M12

Nut M12

$14.53

32

Nut M20

Nut M20

$14.53

33

Runway Weldment, Driving Side

Runway Weldment, Driving Side

$1,717.89

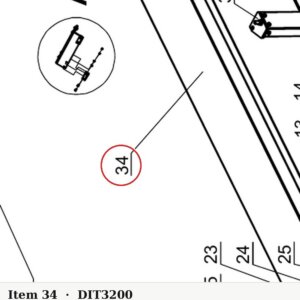

34

Runway Weldment, Slave Side

Runway Weldment, Slave Side

$1,380.54

35

Car Stop Plates

Car Stop Plates

$42.56

36

Nut

Nut

$15.57

37

90 Degree Fitting

90 Degree Fitting

$33.22

53

Hex Head Bolt M8x35

Hex Head Bolt M8x35

$14.53

91

Flat Washer Ø 5

Flat Washer Ø 5

$14.53

92

Flat Washer Ø 20

Flat Washer Ø 20

$14.53

94

Washer

Washer

$15.57

96

Wheel Chock

Wheel Chock

$65.39

97

Angle Iron

Angle Iron

$39.44

98

Rubber

Rubber

$22.84

99

Discal Head Screw M5x16

Discal Head Screw M5x16

—

Unavailable online – please call for availability.

100

Nut M5

Nut M5

$14.53
