Direct Lift PV10 10K Master Illustrated Parts List

Drawing Number

Parts Description

54 Available Parts

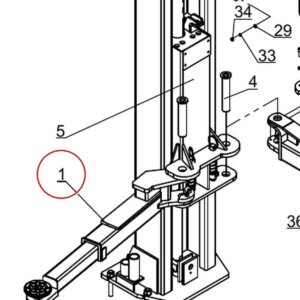

Front Arm

$425.58

Adapter B

$76.81

Adapter a

$49.20

Swing Arm Pin

$48.79

Carriage

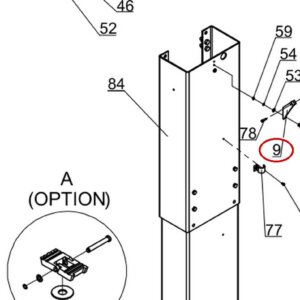

Cable Sheave Bracket a

$16.61

Screw M6×16

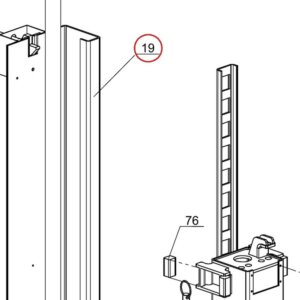

Column a

$1,411.68

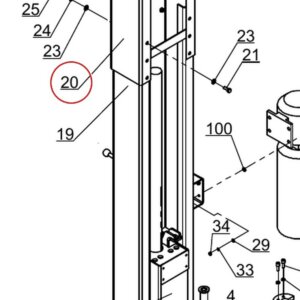

Up-column a

$217.98

Bolt M12*40

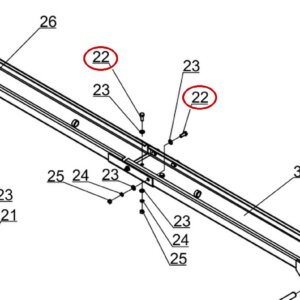

Bolt M12*25

Flat Washers Ø 12

$14.53

Lock Washers Ø 12

$14.53

Nut M12

$14.53

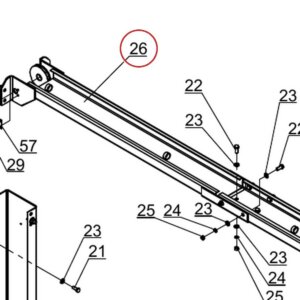

Cross Beam a

$164.00

Bolt M8×25

$14.53

Flat Washers Ø 8

$14.53

Power Unit

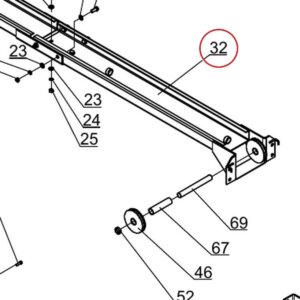

Cross Beam B

Lock Washers Ø 8

$14.53

Nut M8

$14.53

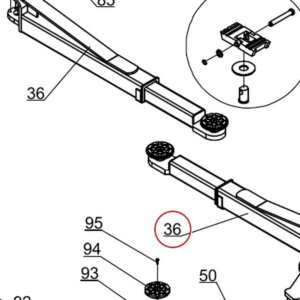

New Long Arm

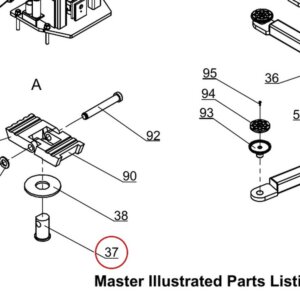

Lifting Pad

$24.91

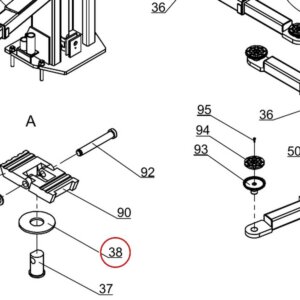

Lifting Pad a Option

$47.75

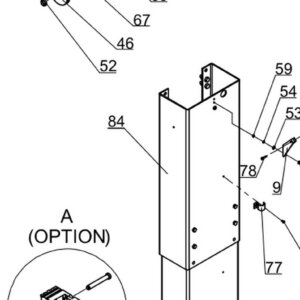

Bolt M6×20

4.75″chain Sheave

$75.00

Front Arm

$425.58

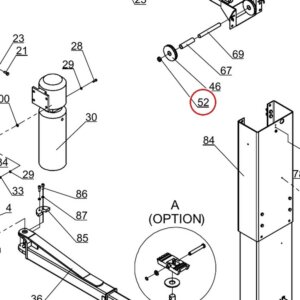

Pipe B

Flat Washers Ø 6

$14.53

Lock Washers Ø 6

$14.53

Stop Non-rotator Bar

$16.61

M6 Nut

$14.53

Anchor Bolt 3/4”×140

$17.65

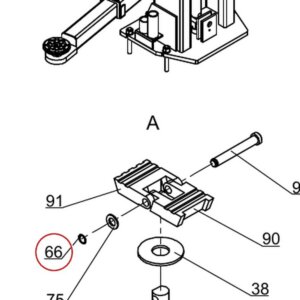

Snap Ring Ø 20

$14.53

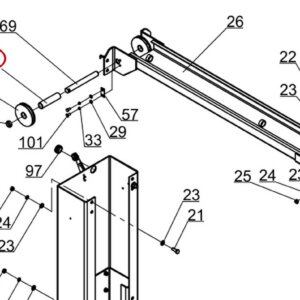

Pipe a

$16.61

Shaft

$28.03

Nylon Lock Nut M6

$14.53

Flat Washers Ø 20

$14.53

Clpe

$16.61

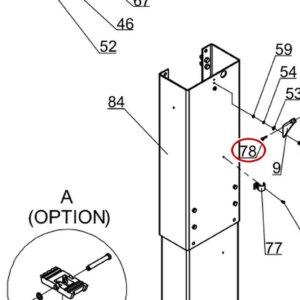

Screw M6×25

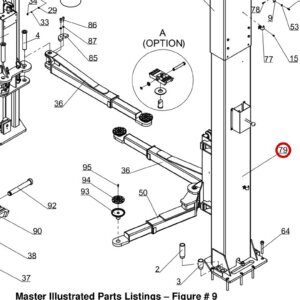

Column B

$1,411.68

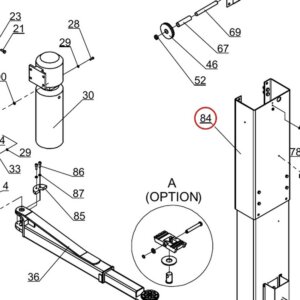

Up Column B

$217.98

Half Moon Gear,arm Lock

$46.98

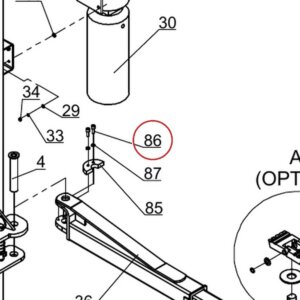

Bolt M10×35

Lock Washers Ø 10

$14.53

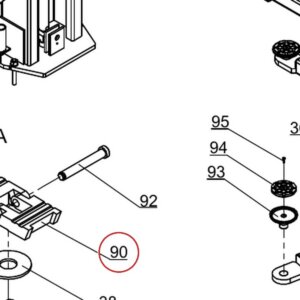

7”board

$56.05

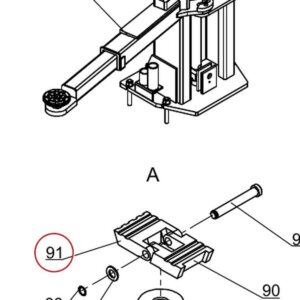

3”board

$42.56

Lift Pad Weldment

$49.98

Rubber Pad

$48.29

M6×20 Pad Screw

$14.53

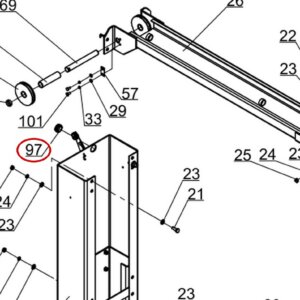

Hydraulic Hose Guide

100

Washer

$15.57

101

M8×20 Bolt

$14.53

Factory parts breakdown for the Direct Lift PV10 (Pro 10 / PRO-V10) two column 10,000 lb lift: Master Illustrated Parts List (Figure 9). Source: manufacturer manual, page 6.

Match the numbered callouts in the drawing to the parts list below to find the exact replacement part.
