Forward Lift DP10 Parts Breakdown (Early Version)

Drawing Number

Forward Lift DP10 Parts Breakdown (Early Version)

Parts Description

111 Available Parts

1
Latch Wipeout

Latch Wipeout

$93.42
2
Latch Weldment

Latch Weldment

$224.21
3
Stackable Pad Weldment

Stackable Pad Weldment

$61.78
5
Arm Restraint Gear

Arm Restraint Gear

$44.98
6
Arm Restraint Pawl

Arm Restraint Pawl

$27.20
7
Arm Restraint Actuator Pin

Arm Restraint Actuator Pin

$235.63

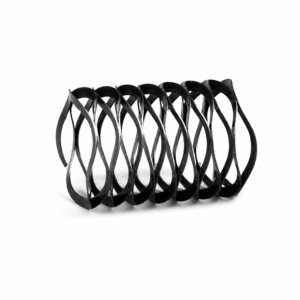

8
Arm Restraint Spring

Arm Restraint Spring

$24.91

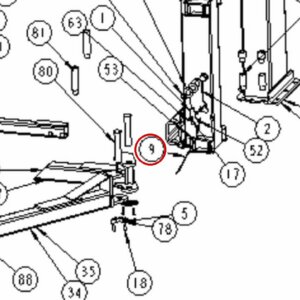

9
Latch Pull Rod

Latch Pull Rod

$135.98
10
1/4-20 Nylon Insert Hex Nut

1/4-20 Nylon Insert Hex Nut

—

Unavailable online – please call for availability.

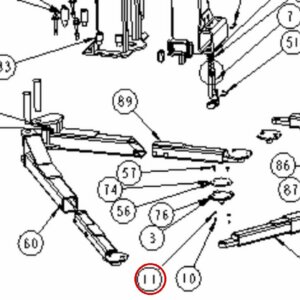

11
1/4 Washer

1/4 Washer

$14.53
12
1/4-20 HHCS X 1/2" Lg.

1/4-20 HHCS X 1/2" Lg.

$14.53
13

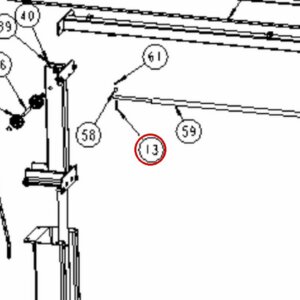

1/4-20 HHCS X 2" Lg.

1/4-20 HHCS X 2" Lg.

$22.84
14

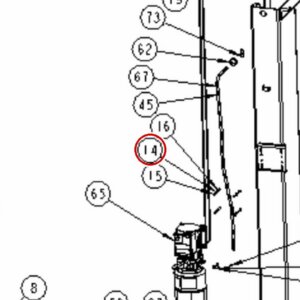

5/16-18 Hex Nut

5/16-18 Hex Nut

$14.53
15

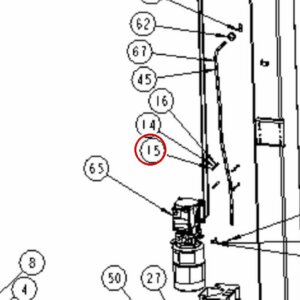

5/16-18 Nylon Insert Lock Nut

5/16-18 Nylon Insert Lock Nut

$14.53

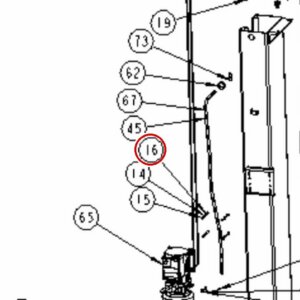

16
5/16-18 X 1-1/4" HHCS Grade 5

5/16-18 X 1-1/4" HHCS Grade 5

$14.53
17

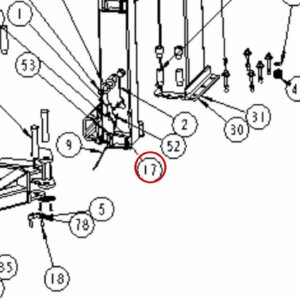

3/8" Washer

3/8" Washer

$14.53
18
3/8-16NC HHCS

3/8-16NC HHCS

$14.53
19

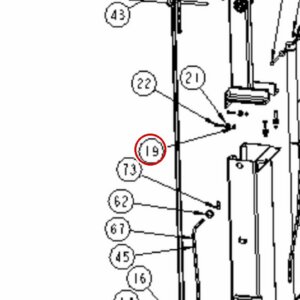

1/2-13 Hex Nut

1/2-13 Hex Nut

$14.53
20
1/2-13 Nylon Insert Lock Nut

1/2-13 Nylon Insert Lock Nut

$14.53

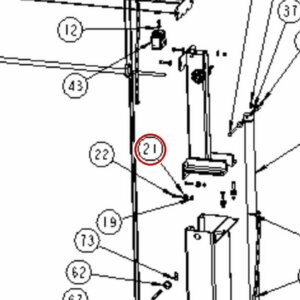

21
1/2 Washer

1/2 Washer

$6.23
22

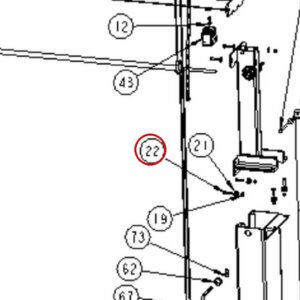

1/2-13 X 1-3/4 HHCS Grade 5

1/2-13 X 1-3/4 HHCS Grade 5

$14.53
23

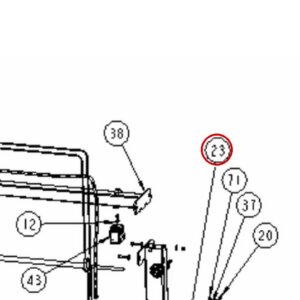

1/2-13 X 4-1/2 HHCS Grade 8

1/2-13 X 4-1/2 HHCS Grade 8

$22.84
24

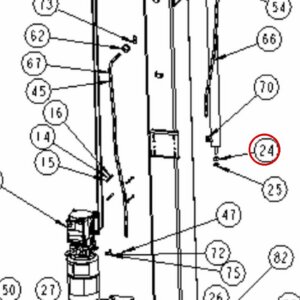

3/4-16 Hex Nut

3/4-16 Hex Nut

$14.53

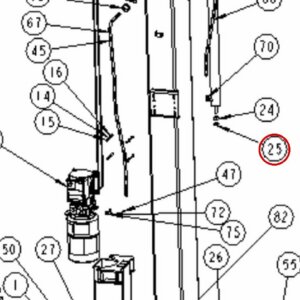

25
3/4-16 Hex Jam Nut

3/4-16 Hex Jam Nut

$22.84
26
3/4" X 5-1/2" Anchor Bolt

3/4" X 5-1/2" Anchor Bolt

—

Unavailable online – please call for availability.

27

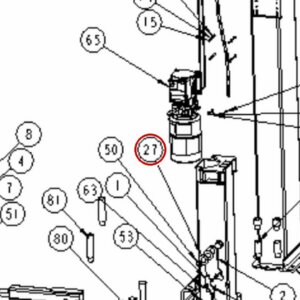

1-1/4 SAE Washer

1-1/4 SAE Washer

$14.53
28
Offside Leg Assembly

Offside Leg Assembly

—

Unavailable online – please call for availability.

29
Offside Leg Weldment

Offside Leg Weldment

—

Unavailable online – please call for availability.

30
Mainside Leg Assembly

Mainside Leg Assembly

—

Unavailable online – please call for availability.

31
Mainside Leg Weldment

Mainside Leg Weldment

—

Unavailable online – please call for availability.

32

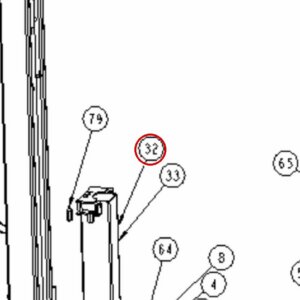

Carriage Assembly

Carriage Assembly

$1,501.99

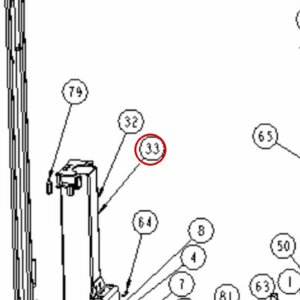

33
Carriage Weld

Carriage Weld

$1,270.51
34
Rear Arm Assembly (Standard Asymmetric)

Rear Arm Assembly (Standard Asymmetric)

$719.33

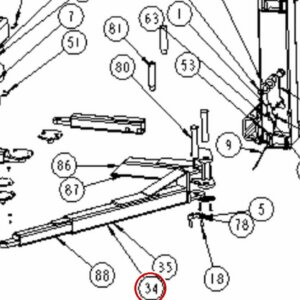

34
Rear Arm Assembly (Narrow Asymmetric or Symmetric)

Rear Arm Assembly (Narrow Asymmetric or Symmetric)

$980.91
35
Rear Arm Tube Weldment (Standard Asymmetric)

Rear Arm Tube Weldment (Standard Asymmetric)

—

Unavailable online – please call for availability.

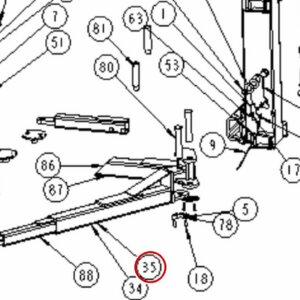

35
Rear Arm Tube Weldment (Narrow Asymmetric or Symmetric)

Rear Arm Tube Weldment (Narrow Asymmetric or Symmetric)

$490.97
36

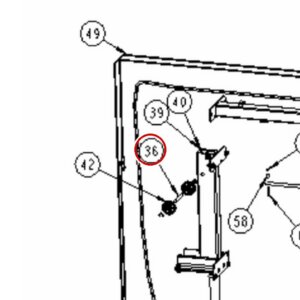

Sheave Pin

Sheave Pin

$80.96

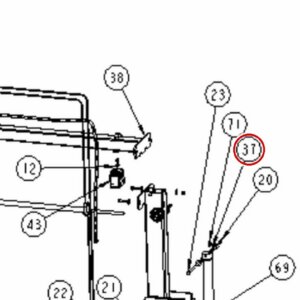

37
Cylinder Bushing

Cylinder Bushing

$28.03
38
Overhead Weldment (Standard Models)

Overhead Weldment (Standard Models)

—

Unavailable online – please call for availability.

38

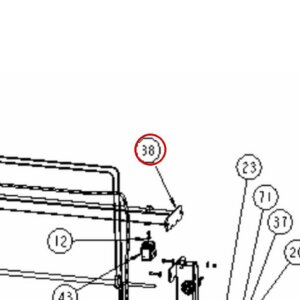

Overhead Weldment (Narrow Models)

Overhead Weldment (Narrow Models)

$377.83

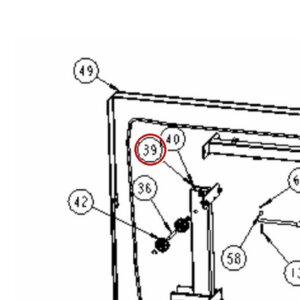

39
Cylinder Mount / Upright Assembly (Standard Ht.)

Cylinder Mount / Upright Assembly (Standard Ht.)

$360.19
39
Cylinder Mount / Upright Assembly (Extended Ht.)

Cylinder Mount / Upright Assembly (Extended Ht.)

$690.27
40
Cylinder Mount / Upright Weldment (Standard Ht.)

Cylinder Mount / Upright Weldment (Standard Ht.)

—

Unavailable online – please call for availability.

40

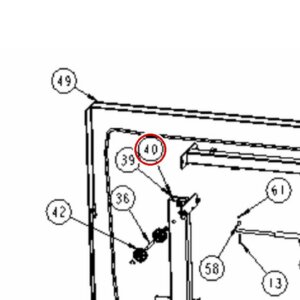

Cylinder Mount / Upright Weldment (Extended Ht.)

Cylinder Mount / Upright Weldment (Extended Ht.)

$526.27
41

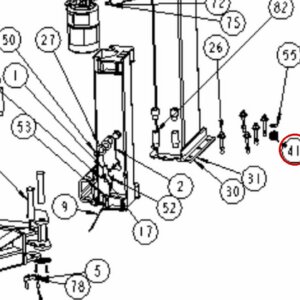

Small Parts Bag

Small Parts Bag

$169.19
42
Cable Sheave

Cable Sheave

—

Unavailable online – please call for availability.

43
Single Phase Overhead Switch

Single Phase Overhead Switch

—

Unavailable online – please call for availability.

44
Literature Bag

Literature Bag

—

Unavailable online – please call for availability.

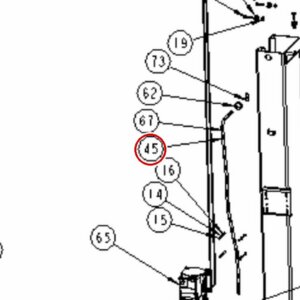

45
Hydraulic Kit (Standard Models)

Hydraulic Kit (Standard Models)

$453.61
45
Hydraulic Kit (2' Extended Height Models)

Hydraulic Kit (2' Extended Height Models)

—

Unavailable online – please call for availability.

45
Hydraulic Kit (High Rise Models)

Hydraulic Kit (High Rise Models)

$1,184.36
46
Double Stack Bracket / Shim

Double Stack Bracket / Shim

—

Unavailable online – please call for availability.

47

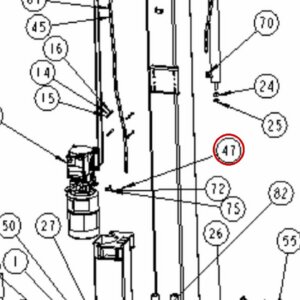

1/4" Return Line

1/4" Return Line

$85.12
48
Parts Box

Parts Box

—

Unavailable online – please call for availability.

49
Cable and Lock Nut (Standard Models)

Cable and Lock Nut (Standard Models)

$90.00
49
Cable and Lock Nut (Standard Models, Extended Height 2')

Cable and Lock Nut (Standard Models, Extended Height 2')

$102.00
49
Cable and Lock Nut (Narrow Model)

Cable and Lock Nut (Narrow Model)

$90.00
49
Cable and Lock Nut (Narrow Model, Extended Height 2')

Cable and Lock Nut (Narrow Model, Extended Height 2')

$102.00
49
5/8-11 Nylon Insert Locknut (cable lock nut)

5/8-11 Nylon Insert Locknut (cable lock nut)

—

Unavailable online – please call for availability.

50

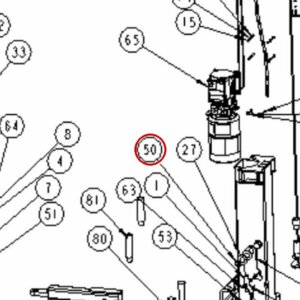

1-3/8 Snap Ring

1-3/8 Snap Ring

$14.53

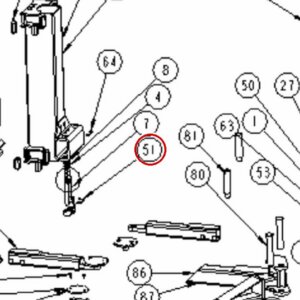

51
1/4 Roll Pin X 1-1/2" Lg.

1/4 Roll Pin X 1-1/2" Lg.

$14.53
52

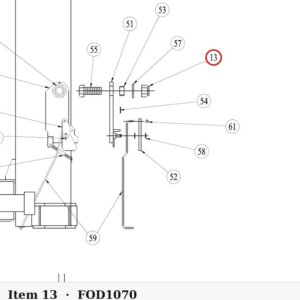

3/16 Cap Nut

3/16 Cap Nut

$14.53
53

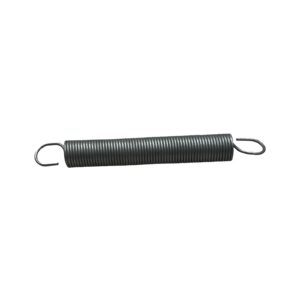

Latch Spring

Latch Spring

$19.80

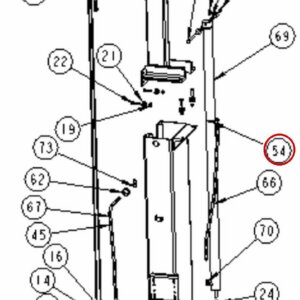

54
24" Wire Tie

24" Wire Tie

$14.53
55
Shim

Shim

—

Unavailable online – please call for availability.

56
Swivel Pad Rubber Insert

Swivel Pad Rubber Insert

—

Unavailable online – please call for availability.

57

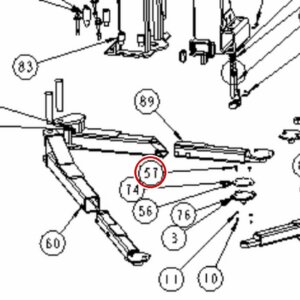

1/4-20 X 1-1/4 Elev. Bolt

1/4-20 X 1-1/4 Elev. Bolt

$14.53

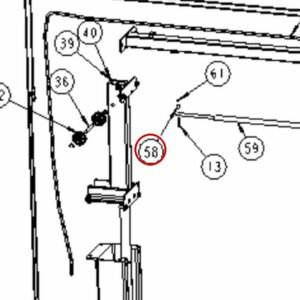

58
Switch Bar Spacer

Switch Bar Spacer

$15.57

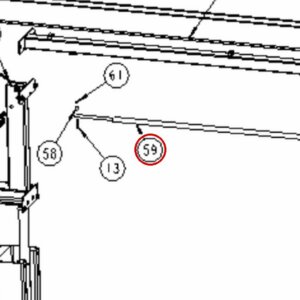

59
Overhead Switch Bar, Single Phase

Overhead Switch Bar, Single Phase

$164.00

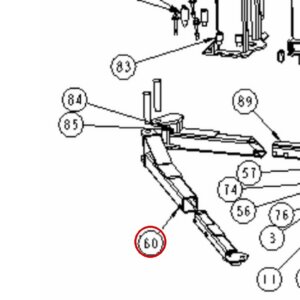

60
3/8NC x 1/2" Lg. Self-tapping screw

3/8NC x 1/2" Lg. Self-tapping screw

$14.53
61
1/4-20 Flange Hex Lock Nut

1/4-20 Flange Hex Lock Nut

$14.53
62

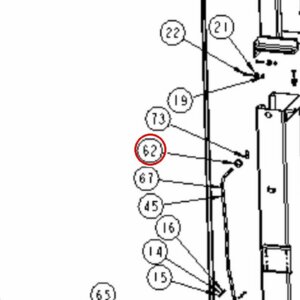

Rubber Grommet

Rubber Grommet

$23.87

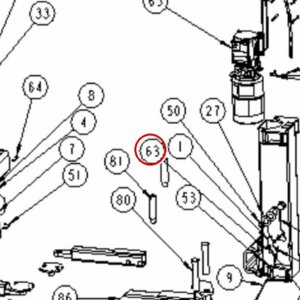

63
3/8 Klip Ring

3/8 Klip Ring

$15.57

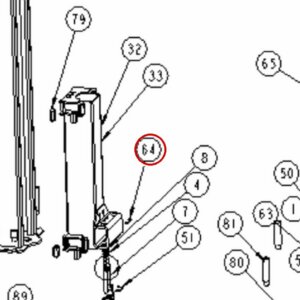

64
3/4 Klip Ring

3/4 Klip Ring

$14.53
65
Single Phase Power Unit

Single Phase Power Unit

—

Unavailable online – please call for availability.

66

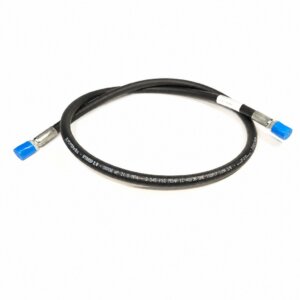

Mainside Hose (Standard Rise)

Mainside Hose (Standard Rise)

$66.50
66

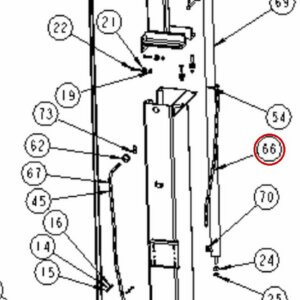

Mainside Hose (High Rise)

Mainside Hose (High Rise)

$73.70

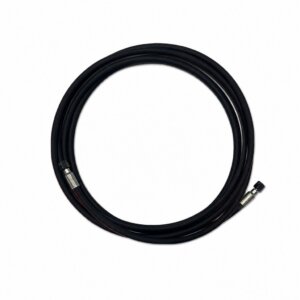

67
Power Unit Hose

Power Unit Hose

$65.00
68
Offside Hose (Standard Height Models)

Offside Hose (Standard Height Models)

—

Unavailable online – please call for availability.

68

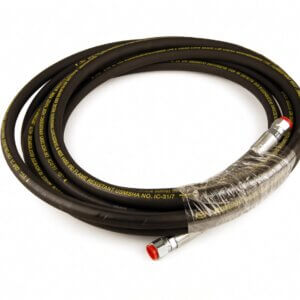

Offside Hose (Extended Height Models 2')

Offside Hose (Extended Height Models 2')

$223.17

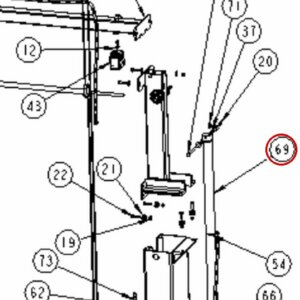

69
Cylinder (Standard Rise)

Cylinder (Standard Rise)

$629.00
69
Cylinder (High Rise)

Cylinder (High Rise)

$1,780.17

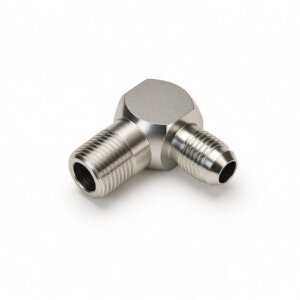

70
3/8 JIC to 3/8 NPT Elbow

3/8 JIC to 3/8 NPT Elbow

$33.22
71
3/8" Bushing to 1/4" NPT Bushing

3/8" Bushing to 1/4" NPT Bushing

$16.61

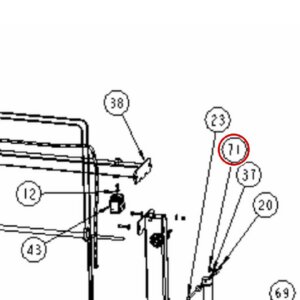

71
Mainside Return Line Tee (Standard Height and High Rise Models)

Mainside Return Line Tee (Standard Height and High Rise Models)

$55.01
71
Mainside Return Line Tee (Extended Height Models)

Mainside Return Line Tee (Extended Height Models)

$53.98
71
Offside Return Line Fitting (Standard Height and High Rise Models)

Offside Return Line Fitting (Standard Height and High Rise Models)

$39.44
71
Offside Return Line Fitting (Extended Height Models)

Offside Return Line Fitting (Extended Height Models)

$40.48
72
9/16 O-Ring to 3/8 JIC Elbow

9/16 O-Ring to 3/8 JIC Elbow

—

Unavailable online – please call for availability.

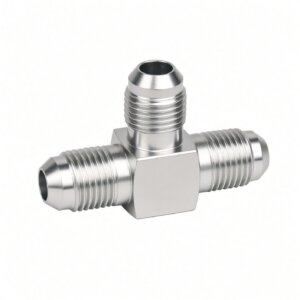

73
3/8 JIC Tee

3/8 JIC Tee

$33.22
74
Swivel Pad Insert Kit

Swivel Pad Insert Kit

$20.21

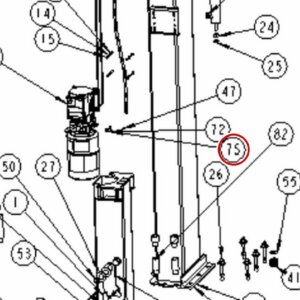

75
2-Post Pressure Fitting Kit

2-Post Pressure Fitting Kit

$129.75

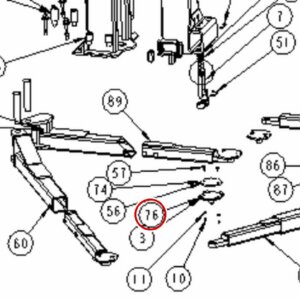

76
Stack Swivel Pad Weldment Kit

Stack Swivel Pad Weldment Kit

$428.69

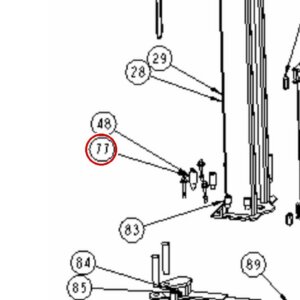

77
Pad Extension Kit

Pad Extension Kit

$530.42
78

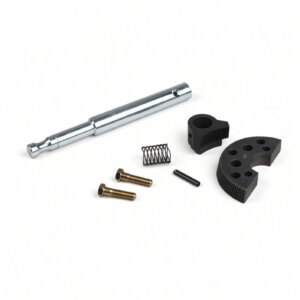

Arm Restraint Gear Kit

Arm Restraint Gear Kit

$106.91
79
Rub Block

Rub Block

$8.98
80
Arm Pin

Arm Pin

—

Unavailable online – please call for availability.

81
6" Pad Extension

6" Pad Extension

$37.75
82
3" Pad Extension

3" Pad Extension

$30.21
83
1-1/2" Pad Extension

1-1/2" Pad Extension

$27.00
84

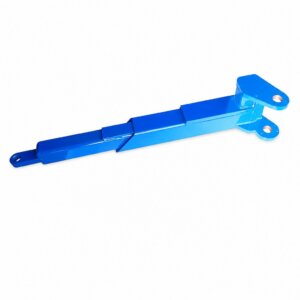

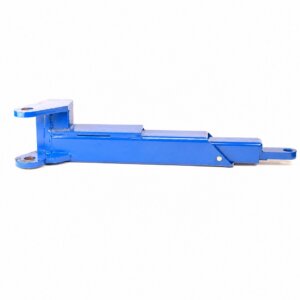

Left Front Arm Assembly (Asymmetric)

Left Front Arm Assembly (Asymmetric)

$758.78
84
Left Front Arm Assembly (Symmetric)

Left Front Arm Assembly (Symmetric)

$980.91
85
Left Front Arm Tube Weldment (Asymmetric)

Left Front Arm Tube Weldment (Asymmetric)

—

Unavailable online – please call for availability.

85
Left Front Arm Tube Weldment (Symmetric)

Left Front Arm Tube Weldment (Symmetric)

$490.97
86
Right Front Arm Assembly (Asymmetric)

Right Front Arm Assembly (Asymmetric)

$758.78
86
Right Front Arm Assembly (Symmetric)

Right Front Arm Assembly (Symmetric)

$980.91
87
Right Front Arm Tube Weldment (Asymmetric)

Right Front Arm Tube Weldment (Asymmetric)

—

Unavailable online – please call for availability.

87
Right Front Arm Tube Weldment (Symmetric)

Right Front Arm Tube Weldment (Symmetric)

$490.97
88
Rear Arm Slider, Long

Rear Arm Slider, Long

—

Unavailable online – please call for availability.

89
Front Arm Slider, Short (Asymmetric)

Front Arm Slider, Short (Asymmetric)

—

Unavailable online – please call for availability.

89
Front Arm Slider, Short (Symmetric)

Front Arm Slider, Short (Symmetric)

—

Unavailable online – please call for availability.

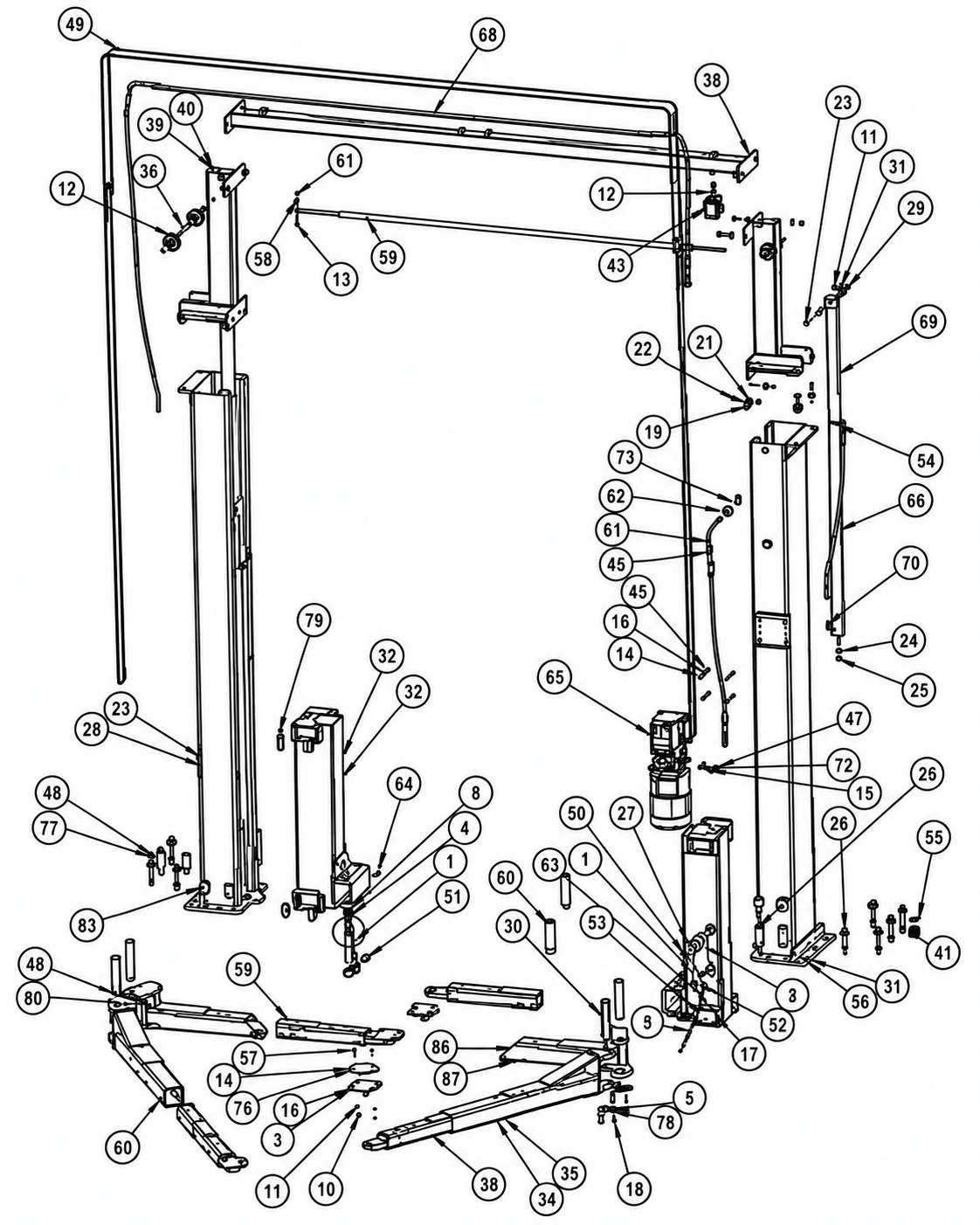

Parts Breakdown for Forward 2 Post Dp-10 Model Car Lifts . This is the Early version of this lift and can be easily identified by the dual lock release system ( Lock release pull rods under both carriages)
