Direct Lift DL9 Main Lift Assembly

Drawing Number

Direct Lift DL9 Main Lift Assembly parts diagram

Parts Description

74 Available Parts

1

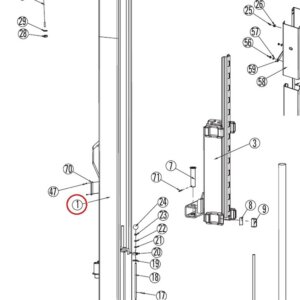

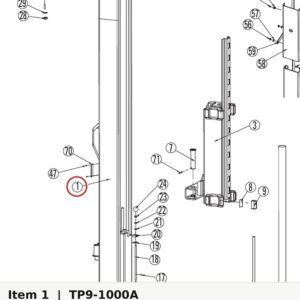

R.H. Column Weldment

R.H. Column Weldment

2

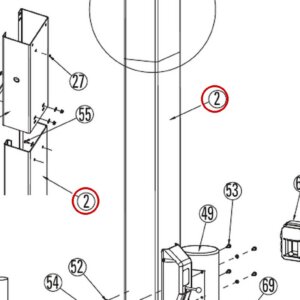

L.H. Column Weldment

L.H. Column Weldment

3

Carriage Weldment

Carriage Weldment

4

L.H. Overhead

L.H. Overhead

5

R.H. Overhead

R.H. Overhead

6

Top Bracket

Top Bracket

$48.79

7

Arm Pin

Arm Pin

$24.00

8

Slider Block Shim (As Required)

Slider Block Shim (As Required)

$15.57

9

Slider Block

Slider Block

$24.91

10

U SHIM

U SHIM

11

Anchor Bolt

Anchor Bolt

$22.84

12

Sheave

Sheave

$27.02

13

Klipring For 3/4" Shaft

Klipring For 3/4" Shaft

$14.53

14

Sheave Cover

Sheave Cover

$20.98

15

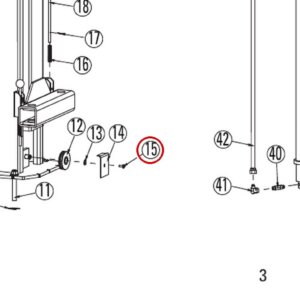

1/4"-20NC*3/8"Lg. PHMS Plated

1/4"-20NC*3/8"Lg. PHMS Plated

$14.53

16

Press Spring

Press Spring

$23.87

17

Spring Pin 3*26Lg.

Spring Pin 3*26Lg.

18

Actuator Pin

Actuator Pin

$14.53

19

GEAR SHIM

GEAR SHIM

$15.57

20

PAWL

PAWL

$24.91

21

FLAT WASHER 10

FLAT WASHER 10

$6.23

22

SPRIN WASHER 10

SPRIN WASHER 10

$14.53

23

HEX NUT M10

HEX NUT M10

$14.53

24

BALL HANDLE

BALL HANDLE

$18.00

25

1/4"-20NC*1"Lg.HHCS

1/4"-20NC*1"Lg.HHCS

$14.53

26

LATCH CABLE BRACKET

LATCH CABLE BRACKET

$14.85

27

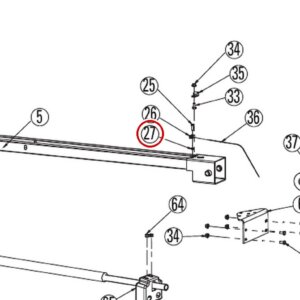

1/4"-20NC Flanged Lock Nut

1/4"-20NC Flanged Lock Nut

$14.53

28

NYLON LOCK NUT 5/8"-11

NYLON LOCK NUT 5/8"-11

$14.53

29

FLAT WASHER 16

FLAT WASHER 16

$14.53

30

EQUALIZER CABLE

EQUALIZER CABLE

$80.00

31

Overhead Hose

Overhead Hose

$295.83

32

LATCH RELEASE CABLE

LATCH RELEASE CABLE

33

M10-1.5*20Lg. HHCS

M10-1.5*20Lg. HHCS

$14.53

34

M10-1.5 Flanged Lock Nut

M10-1.5 Flanged Lock Nut

$14.53

35

HOSE CLAMP

HOSE CLAMP

$15.57

36

LATCH CABLE GUIDE

LATCH CABLE GUIDE

$22.21

37

WASHER

WASHER

$14.53

38

SHEAVE SHAFT

SHEAVE SHAFT

$52.18

39

Cylinder

Cylinder

$852.20

40

Flow Control Assembly

Flow Control Assembly

$96.53

41

FITTING 90D

FITTING 90D

$23.87

42

Mainside Hose

Mainside Hose

$119.37

43

ADAPTER BRACKET

ADAPTER BRACKET

$58.13

44

5/16"-18NC*3/8"Lg.PHMS

5/16"-18NC*3/8"Lg.PHMS

$13.49

45

1.75" EXT.Adapter

1.75" EXT.Adapter

$53.98

46

3.5" EXT.Adapter

3.5" EXT.Adapter

$64.36

47

M4*6Lg.PHMS

M4*6Lg.PHMS

48

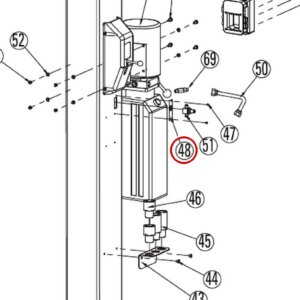

COVER PLATE

COVER PLATE

$43.60

49

POWER UNIT 1PHASE

POWER UNIT 1PHASE

$2,037.59

49

POWER UNIT 3PHASE

POWER UNIT 3PHASE

50

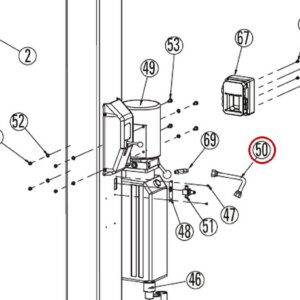

HOSE

HOSE

$93.42

51

T fitting

T fitting

$84.08

52

5/16" External Tooth Lockwasher

5/16" External Tooth Lockwasher

$13.49

53

5/16"-18NC*1-1/2 HHCS

5/16"-18NC*1-1/2 HHCS

$14.53

54

5/16"-18NC HEX NUT

5/16"-18NC HEX NUT

$14.53

55

1/2"-13*1-1/4"HHCS(G.5)

1/2"-13*1-1/4"HHCS(G.5)

$14.53

56

1/2"-13NYLON LOCK NUT

1/2"-13NYLON LOCK NUT

$14.53

57

1/2" FLAT WASHER

1/2" FLAT WASHER

$14.53

58

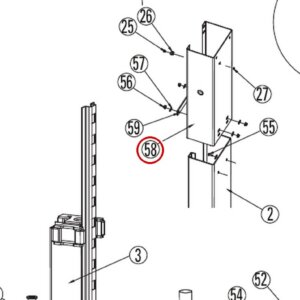

EXTENSION COLUMN

EXTENSION COLUMN

59

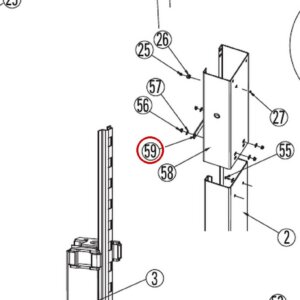

Column Reinforce

Column Reinforce

$34.25

60

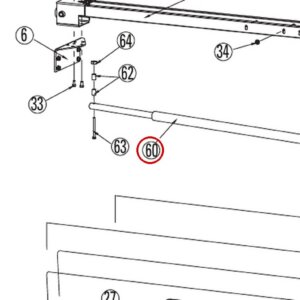

1 Phase Switch Bar Assembly

1 Phase Switch Bar Assembly

$80.96

60

3 Phase Switch Bar Assembly

3 Phase Switch Bar Assembly

$74.74

61

FLAT WASHER 1/4"

FLAT WASHER 1/4"

$14.53

62

LIMITED BAR SPACER

LIMITED BAR SPACER

$8.98

63

1/4"-20NC*2-3/4"Lg.HHCS

1/4"-20NC*2-3/4"Lg.HHCS

$14.53

64

1/4"-20NC Nylon Lock Nut

1/4"-20NC Nylon Lock Nut

$14.53

65

OVERHEAD SWITCH 1 Phase

OVERHEAD SWITCH 1 Phase

$143.00

65

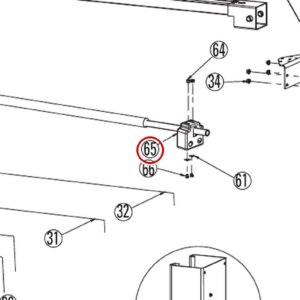

OVERHEAD SWITCH 3 Phase

OVERHEAD SWITCH 3 Phase

$471.25

66

1/4"-20NC*3/4"Lg.HHCS

1/4"-20NC*3/4"Lg.HHCS

$14.53

67

3 Phase Switch Box

3 Phase Switch Box

$845.97

68

M5-10mm PHMS Plated

M5-10mm PHMS Plated

$14.53

69

Straight Fitting

Straight Fitting

$17.65

70

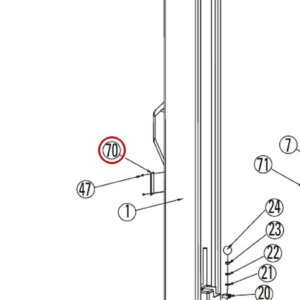

Cover Plate

Cover Plate

$26.99

71

Spring Pin

Spring Pin

$14.53

Factory parts breakdown for the Direct Lift DL9 two-post lift Main Lift Assembly. This diagram covers column weldments, carriage weldments, overhead beam components, cylinders, cables, sheaves, power unit hardware and all related fasteners for the DL9.

Every numbered item in the drawing is matched below to the exact replacement part, so you can identify and order the right component for your Direct Lift DL9 straight from the factory diagram.
